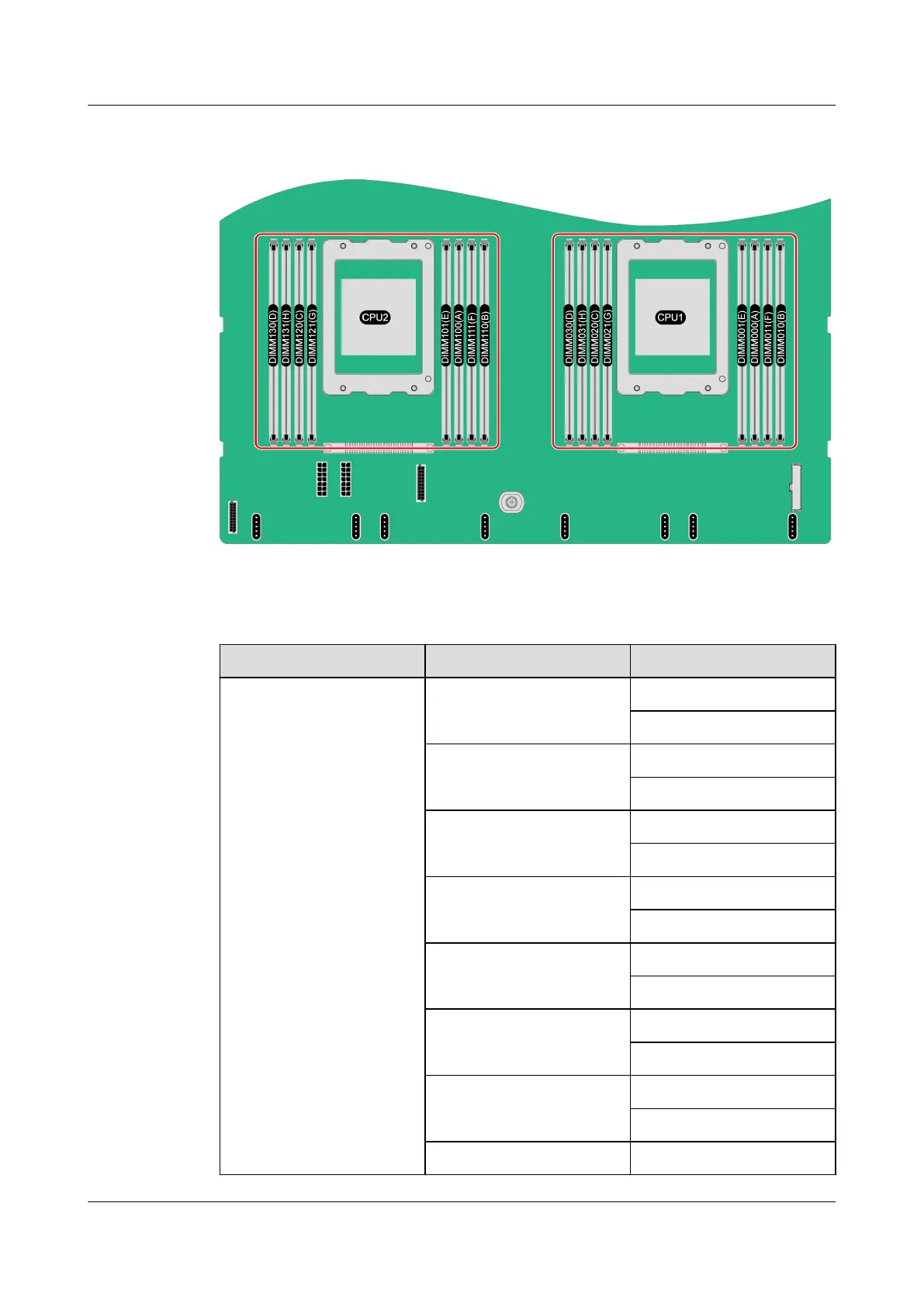

Figure 2-32 DIMM slot numbers (server with Kunpeng 920 5220 or 3210
processors)
Table 2-13 lists channels for each CPU of 2280
Table 2-13 Channels (server with Kunpeng 920 5220 or 3210 processors)
CPU
Channel DIMM
CPU1 TB_A DIMM060(G)
DIMM061(O)
TB_B DIMM020(C)
DIMM021(K)
TB_C DIMM040(E)
DIMM041(M)
TB_D DIMM000(A)
DIMM001(I)
TA_A DIMM030(D)
DIMM031(L)
TA_B DIMM070(H)
DIMM071(P)
TA_C DIMM010(B)
DIMM011(J)
TA_D DIMM050(F)
TaiShan 200 Server
Maintenance and Service Guide (Model 2280) 2 Components
Issue 04 (2020-01-16) Copyright © Huawei Technologies Co., Ltd. 31
