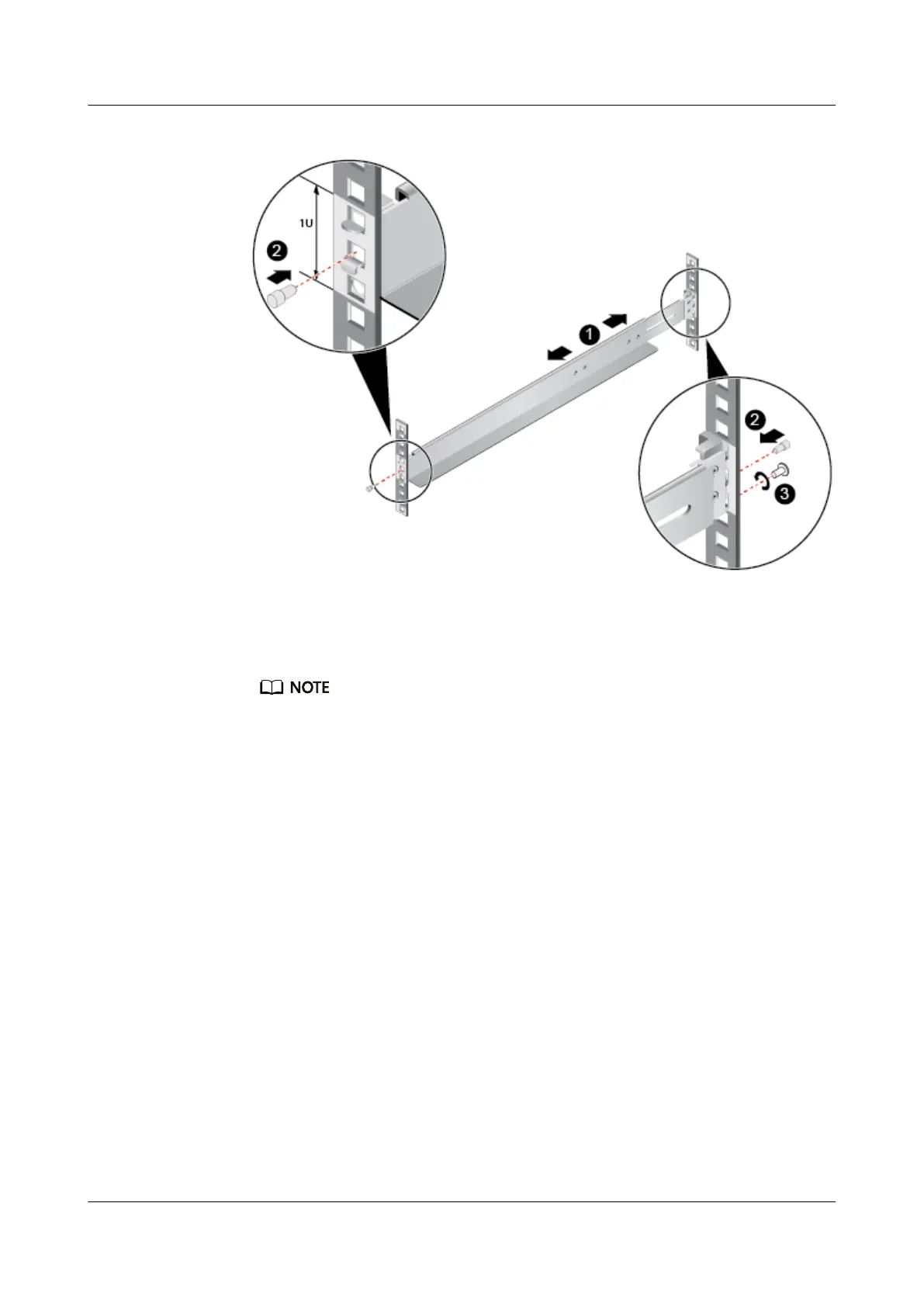

Figure 5-7 Installing an adjustable guide rail
2. Plug the second square holes at the front and rear of the guide rail using the
plugs included to secure the guide rail. See (2) in Figure 5-7.
3. (Optional) Install an M6 screw in the square hole underneath at the rear of
the guide rail and secure it. See (3) in Figure 5-7.
While screws are not necessary for the installation of adjustable guide rails, M6 screws
at the rear end of the server will make it more shockproof and secure.
4. Install the other guide rail in the same way.
Step 2 Install the server.
1. Lift the server. This task requires at least two people.
2. Place the server on the guide rails and slide it into the cabinet. See (1) in
Figure 5-8.
TaiShan 200 Server
Maintenance and Service Guide (Model 2280) 5 Removal and Installation
Issue 04 (2020-01-16) Copyright © Huawei Technologies Co., Ltd. 81
