10 TUNING THE CHASSIS 33
– Disconnect the fork pump from the left fork leg.
When disconnecting, excess pressure will escape from the hose – the fork
leg itself does not lose any air.
The fork pump indicator switches off automatically after 80 seconds.
– Mount the protection cap.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 35)

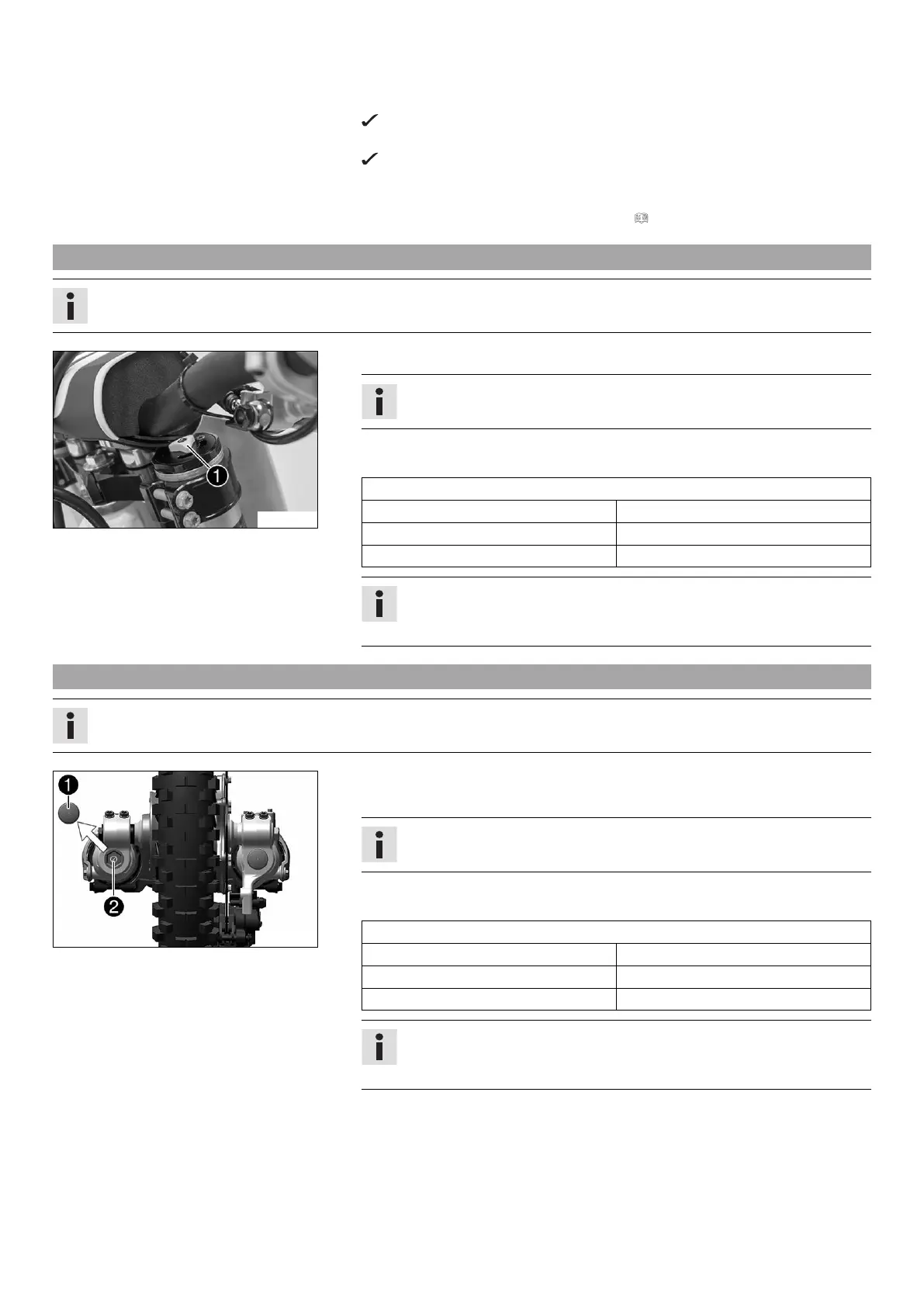

10.14 Adjusting the compression damping of the fork
Info
The hydraulic compression damping determines the fork suspension behavior.
K00476-10
–
Turn adjusting screw
clockwise all the way.
Info
Adjusting screw
is located at the upper end of the right fork leg.
– Turn counterclockwise by the number of clicks corresponding to the fork type.
Guideline
Compression damping
Comfort 20 clicks
Standard 17 clicks
Sport 12 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce
damping.
10.15 Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
M01100-10
–
Remove protection cap
.
–
Turn adjusting screw
clockwise all the way.
Info
The adjusting screw
is located at the lower end of the right fork leg.
– Turn counterclockwise by the number of clicks corresponding to the fork type.
Guideline
Rebound damping
Comfort 20 clicks
Standard 17 clicks
Sport 12 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce
damping.
–
Mount protection cap
.
