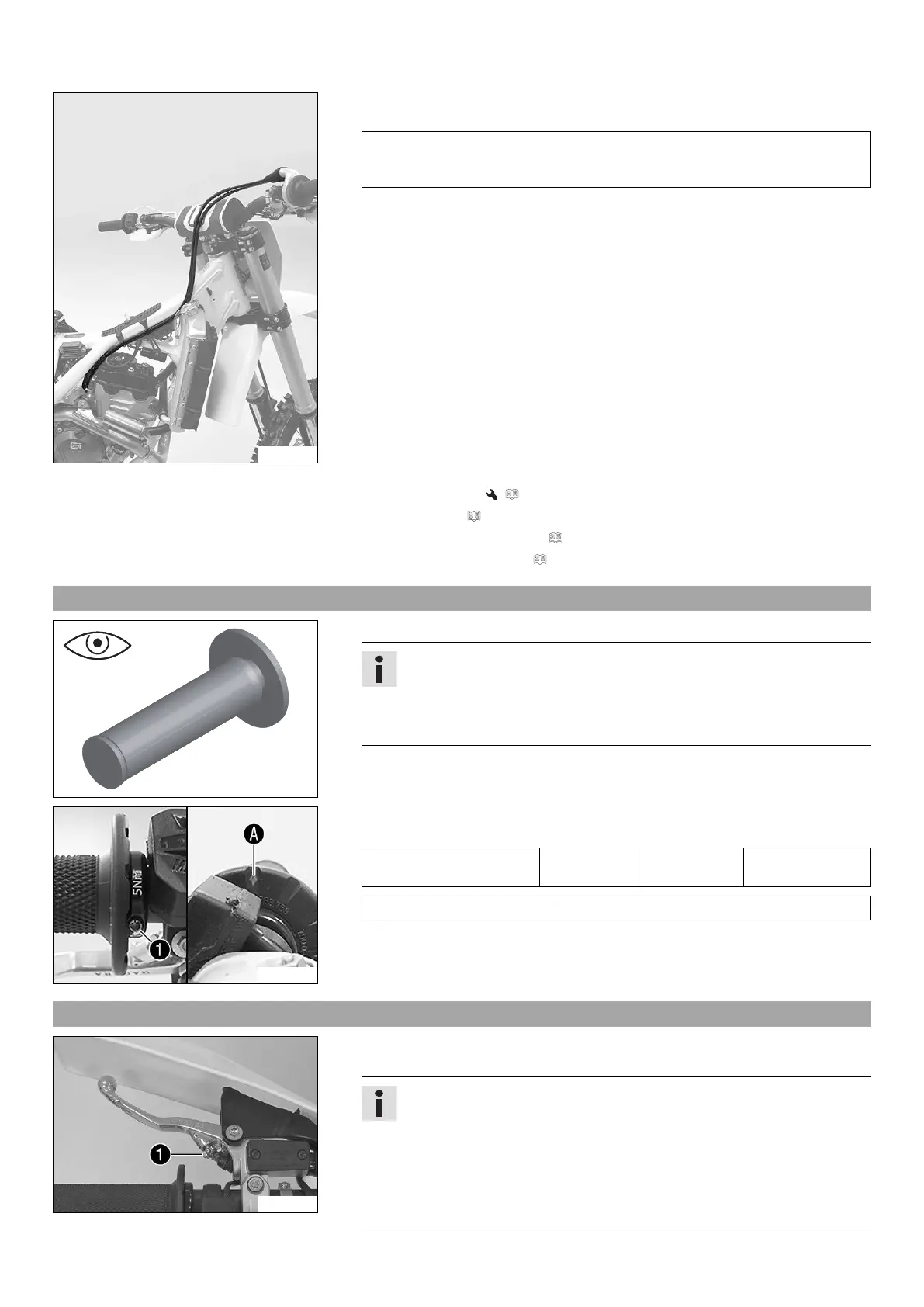

11 SERVICE WORK ON THE CHASSIS 57
E00264-01
Main work
– Check the throttle cable routing.
Both throttle cables must be routed to the throttle valve body side by side
behind the handlebars and above the fuel tank bracket. Both throttle cables
must be secured behind the rubber band of the fuel tank contact area.
» If the throttle cable is not routed as specified:
– Correct the throttle cable routing.
Finishing work
– Install the fuel tank. ( p. 51)
– Mount the seat. ( p. 46)
– Install the air filter box cover. ( p. 46)
– Install the right side cover. ( p. 50)
11.42 Checking the rubber grips
401197-01
– Check the rubber grips on the handlebar for damage, wear, and looseness.
Info
The rubber grips are vulcanized onto a sleeve on the left and onto the han-
dle tube of the throttle grip on the right. The left sleeve is clamped onto the
handlebar.
The rubber grip can only be replaced with the sleeve or the throttle tube.
» If a rubber grip is damaged or worn:
– Change the rubber grip.
E00265-10
–
Check that screw
is firmly seated.
Guideline
Screw, fixed grip M4 5 Nm
(3.7 lbf ft)
Loctite
®
243™
The diamond
must be located at the top.
11.43 Adjusting the basic position of the clutch lever
F00051-10
– Adjust the basic setting of the clutch lever to your hand size by turning adjusting
screw
.
Info
Turn the adjusting screw counterclockwise to decrease the distance
between the clutch lever and the handlebar.
Turn the adjusting screw clockwise to increase the distance between the
clutch lever and the handlebar.
The range of adjustment is limited.
Turn the adjusting screw by hand only, and do not apply any force.
Do not make any adjustments while riding!
