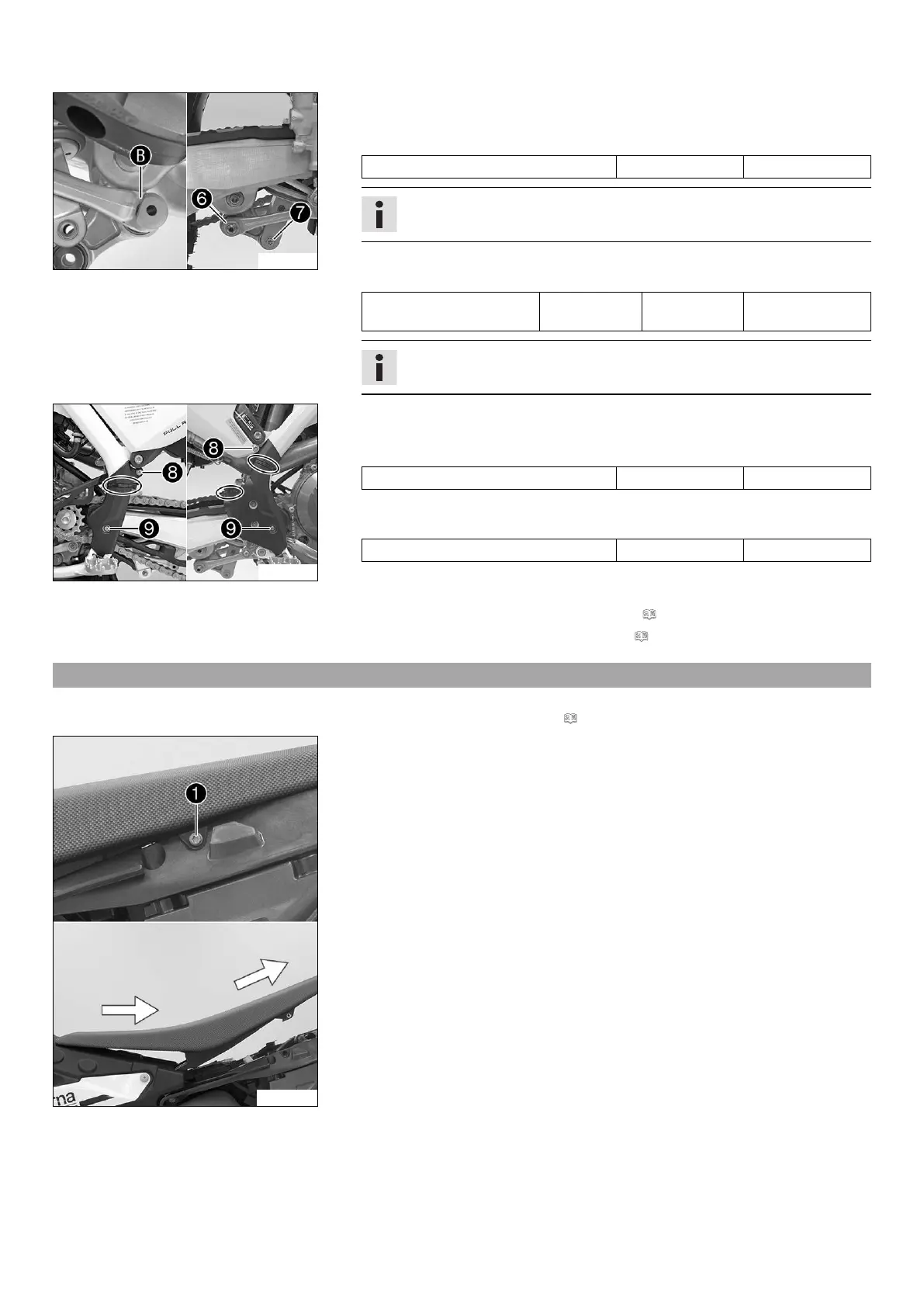

11 SERVICE WORK ON THE CHASSIS 45
F00089-10
– Position the angle lever and linkage lever.
–
Mount and tighten fitting
.
Guideline
Nut, linkage lever to angle lever M14x1.5 80 Nm (59 lbf ft)
Info
Pay attention to flat area
.
–
Mount and tighten screw
.
Guideline
Screw, bottom shock
absorber
M10 60 Nm
(44.3 lbf ft)
Loctite
®
2701™
Info
Raise the wheel slightly to be able to mount the screw more easily.
F00074-11
– Position the frame protector on the left and right.
–
Mount and tighten screws
.
Guideline
Screw, frame protector M5 3 Nm (2.2 lbf ft)
–
Mount and tighten screws
with the washers.
Guideline
Screw, frame protector M5 3 Nm (2.2 lbf ft)
– Mount the new cable ties.
Finishing work
– Check the free travel of the foot brake lever. ( p. 64)
– Remove the motorcycle from the lift stand. ( p. 35)
11.20 Removing the seat
Preparatory work
– Remove the air filter box cover. ( p. 46)
H01401-10
Main work
–
Remove screw
.
– Pull seat back and lift it off.
