16 TUNING THE ENGINE 82
Finishing work
– Check the play in the throttle cable. ( p. 81)
– Install the fuel tank. ( p. 51)
– Mount the seat. ( p. 46)
– Install the air filter box cover. ( p. 46)
– Install the right side cover. ( p. 50)

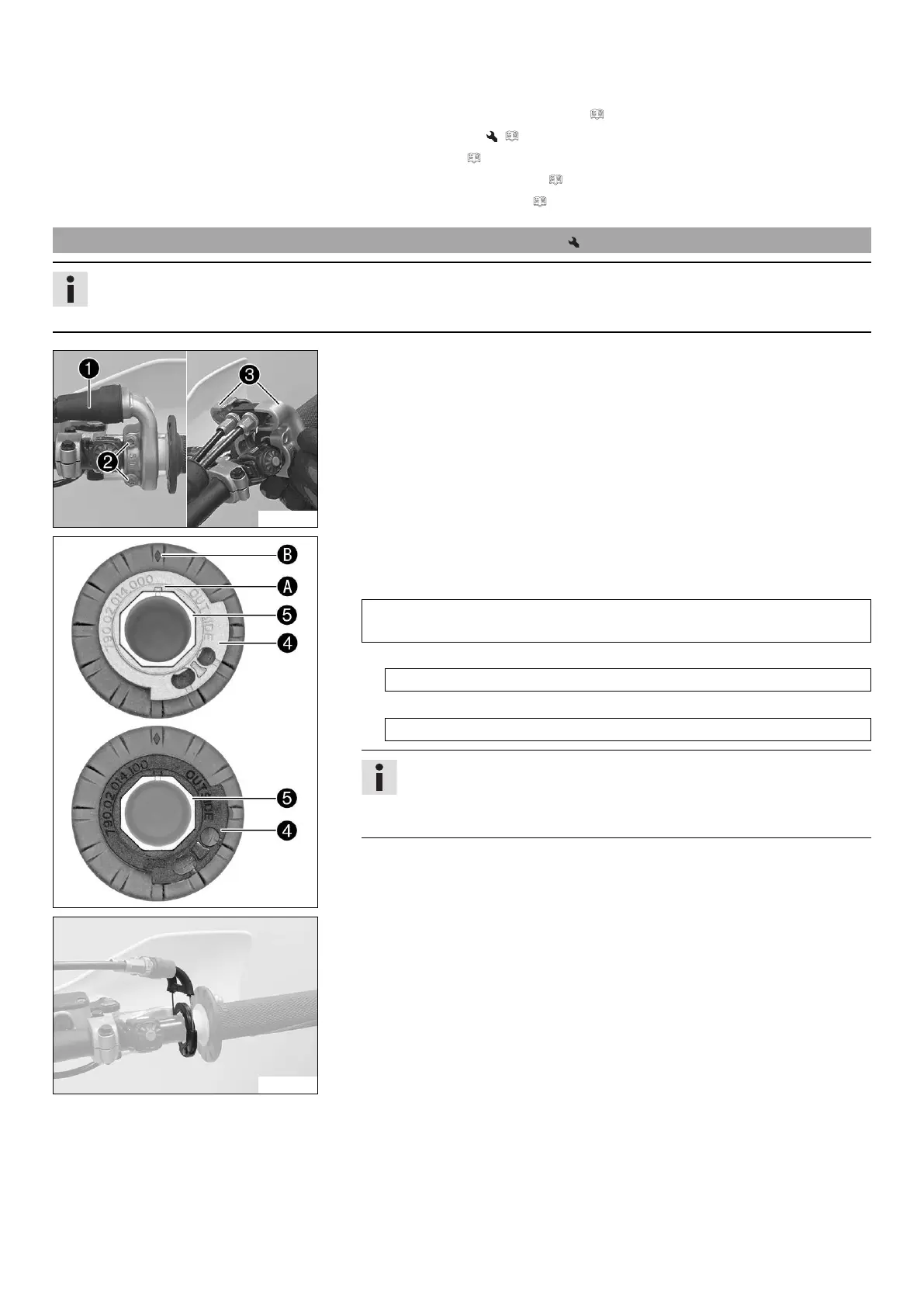

16.3 Setting the characteristic map of the throttle response
Info
On the throttle grip, the characteristic map of the throttle response is changed by changing the guide plate.
A guide plate with a different characteristic map is supplied.
F00094-10
Main work
–
Push back sleeve
.
–
Remove screws
and half-shells
.
– Detach the throttle cables and take off the grip tube.
102246-10
–
Remove guide plate
from handle tube
.
– Position the required guide plate on the grip tube.
Guideline
The label OUTSIDE must be visible. Marking
must be positioned at mark-
ing
.
Alternative 1
Grey guide plate (79002014000)
Alternative 2
Black guide plate (79002014100)
Info
The gray guide plate opens the throttle valve more slowly.
The black guide plate opens the throttle valve more quickly.
The black guide plate is already mounted when the vehicle is delivered.
F00096-01
– Clean the outside of the handlebar and the inside of the grip tube. Mount the grip
tube on the handlebar.
– Attach the throttle cables to the guide plate and route correctly.
