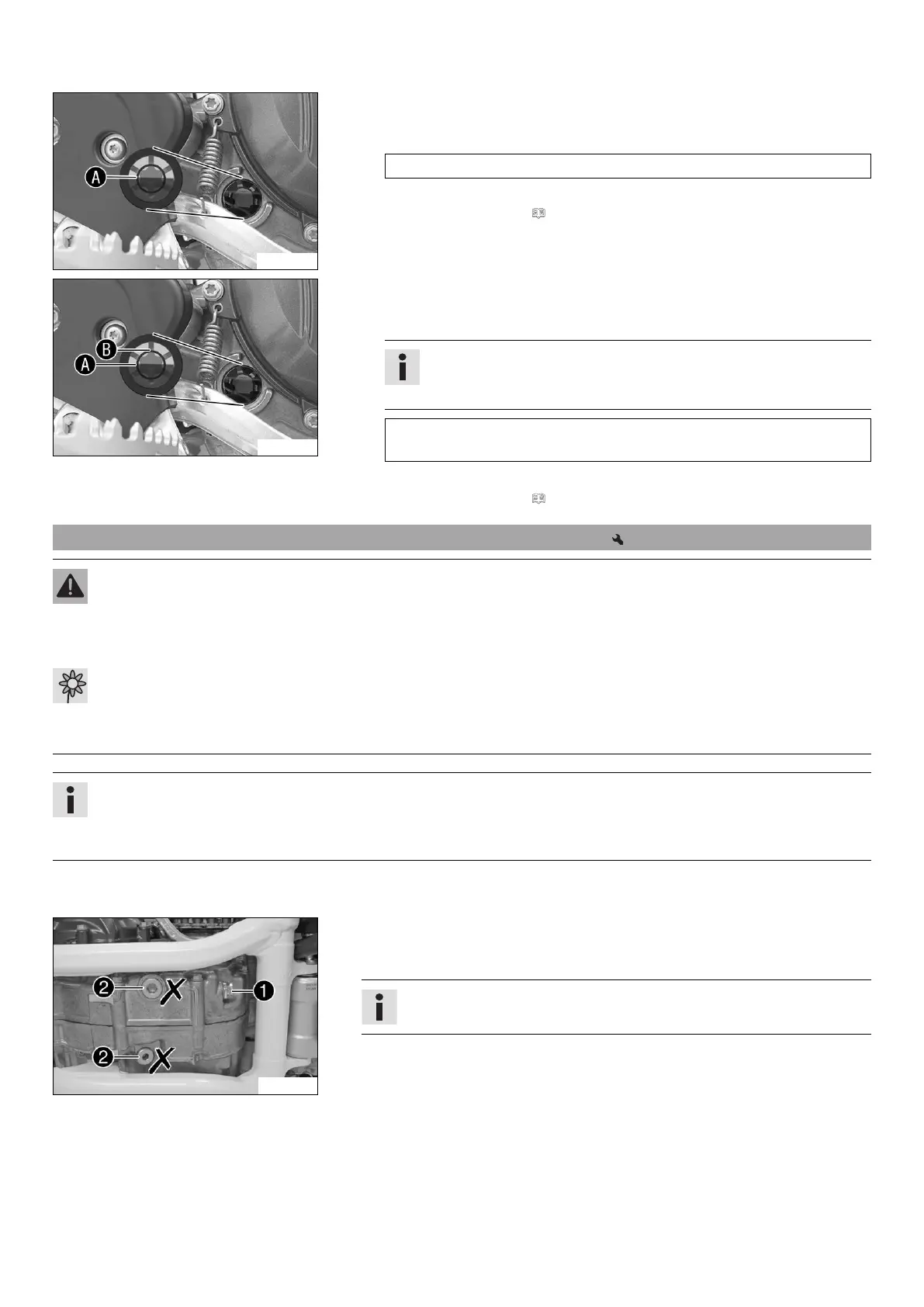

17 SERVICE WORK ON THE ENGINE 87
H00309-10
Condition
The engine is cold.
– Check the engine oil level.
The engine oil reaches the middle of level viewer
.
» If the engine oil does not reach the middle of the level viewer:
– Add engine oil. ( p. 89)
S00932-10
Condition
The engine is at operating temperature.
– Check the engine oil level.
Info
After switching off the engine, wait one minute before checking the
level.
The engine oil level is between the middle of the level viewer
and the
upper edge of the level viewer
.
»
If the engine oil does not reach the middle of level viewer
:
– Add engine oil. ( p. 89)
17.3 Changing the engine oil and oil filter, cleaning the oil screen
Warning
Danger of scalding Engine and gear oil get very hot when the motorcycle is ridden.
– Wear suitable protective clothing and safety gloves.
– In the event of scalding, rinse the area affected immediately with lukewarm water.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with the applicable
regulations.
Info
Check the O-rings for damage.
Replace damaged O-rings.
Drain the engine oil while the engine is at operating temperature.
Preparatory work
– Park the motorcycle on a level surface.
120299-10
Main work
– Place a suitable container under the engine.
–
Remove oil drain plug
with the magnet and seal ring.
Info
Do not remove screws
on both sides.
