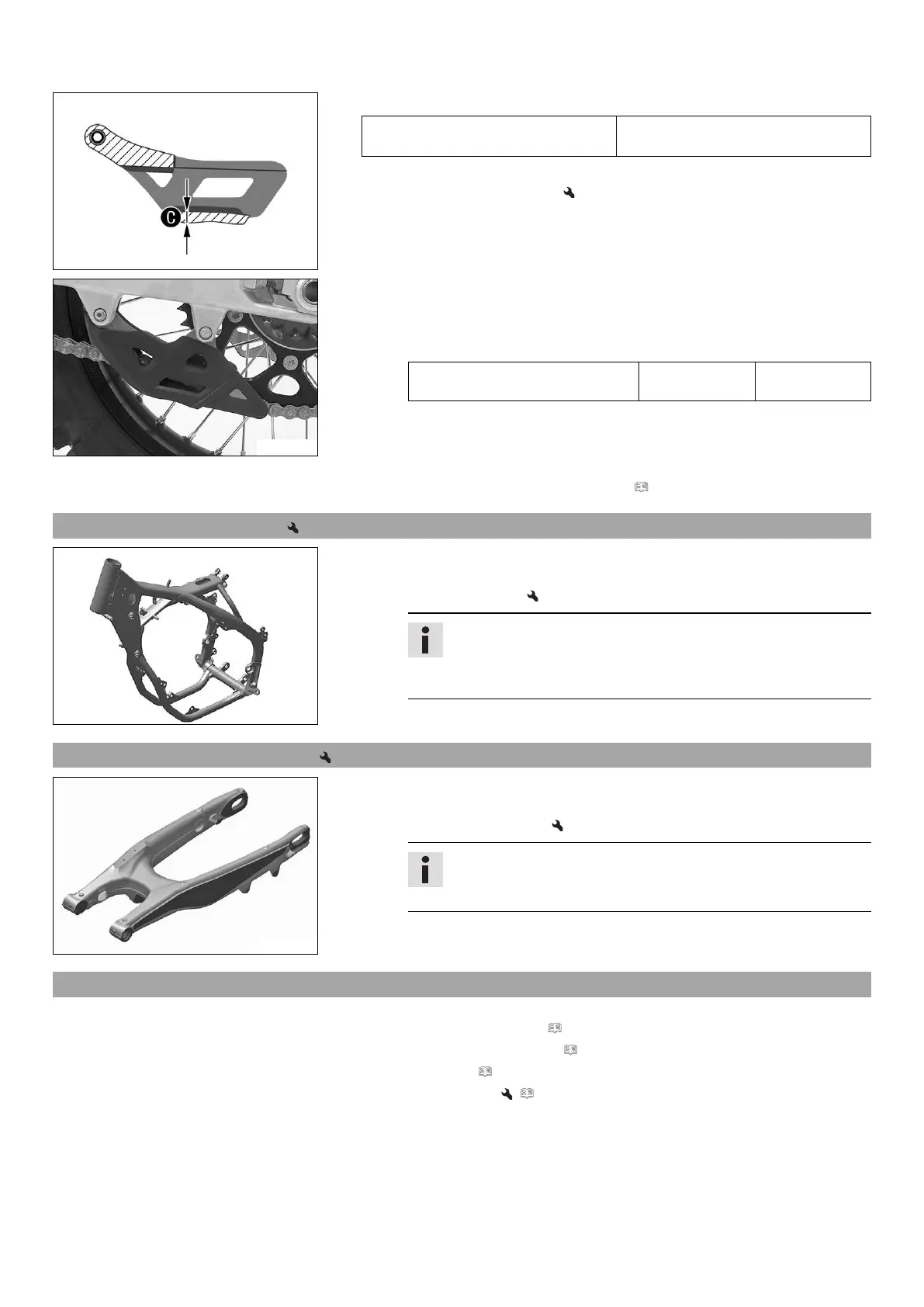

11 SERVICE WORK ON THE CHASSIS 56
402421-10
–
Check the chain guide with a slide gauge for dimension
.
Minimum thickness
of the chain
guide
6 mm (0.24 in)
» If the measured value is less than the specification:
– Change the chain guide.
H01420-10
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the screws on the chain guide.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 35)
11.39 Checking the frame
S00867-01
– Check the frame for cracks and deformation.
» If the frame exhibits cracks or deformation due to a mechanical impact:
– Change the frame.
Info
Always replace a frame that has been damaged due to a mechan-
ical impact. Repair of the frame is not authorized by Husqvarna
Motorcycles.
11.40 Checking the swingarm
401520-01
– Check the swingarm for damage, cracking, and deformation.
» If the swingarm shows signs of damage, cracking, or deformation:
– Change the swingarm.
Info
Always change a damaged swingarm. Repair of the swingarm is
not authorized by Husqvarna Motorcycles.
11.41 Checking the throttle cable routing
Preparatory work
– Remove the right side cover. ( p. 49)
– Remove the air filter box cover. ( p. 46)
– Remove the seat. ( p. 45)
– Remove the fuel tank. ( p. 50)
