11 SERVICE WORK ON THE CHASSIS 42

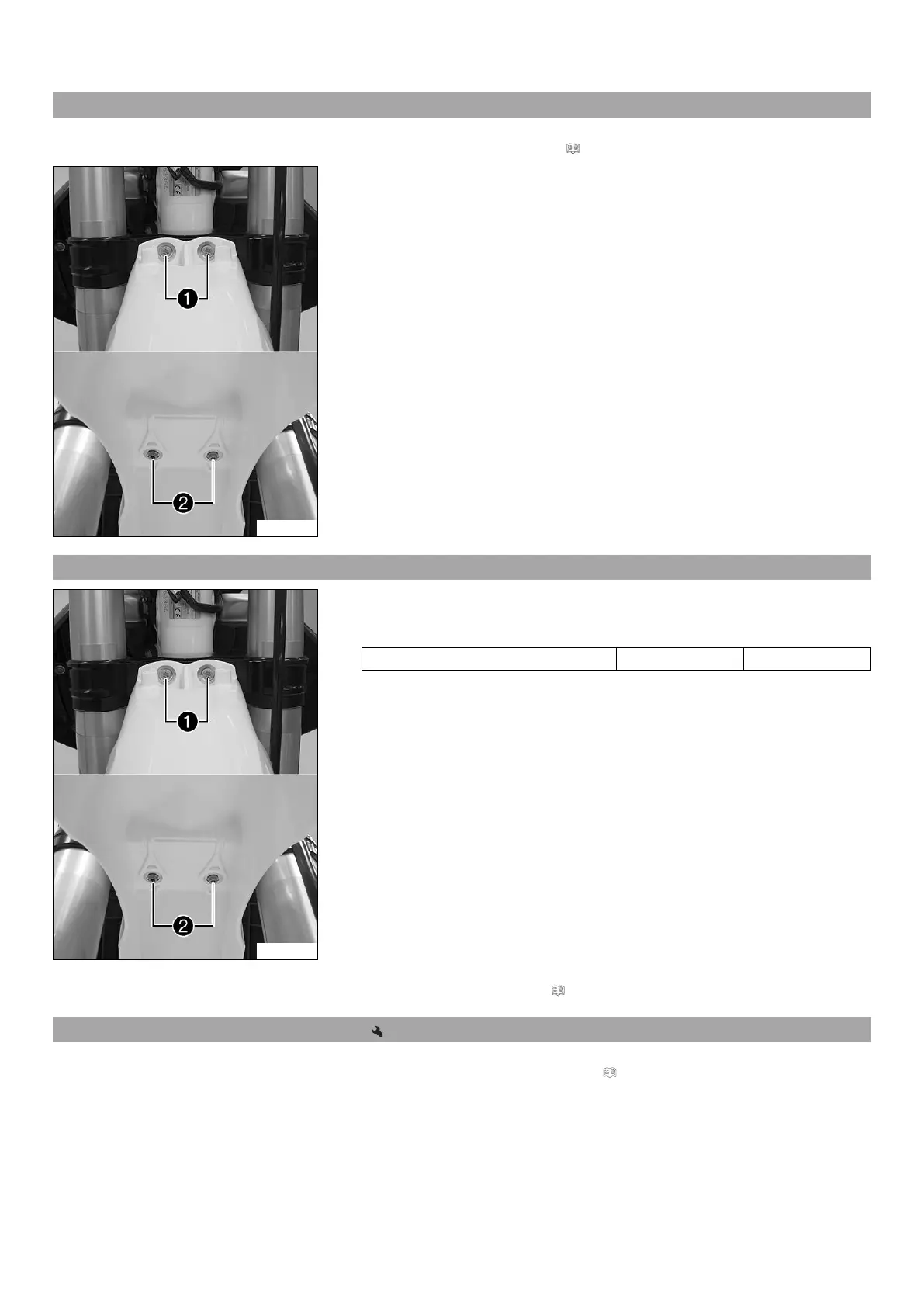

11.16 Removing the front fender

Preparatory work

– Remove the start number plate. ( p. 41)

H00271-10

Main work

–

Remove screws



and



. Remove the front fender.

11.17 Installing the front fender

H00271-10

Main work

–

Position the front fender. Mount and tighten screws



and



Guideline

Remaining screws, chassis M6 10 Nm (7.4 lbf ft)

Finishing work

– Install the start number plate. ( p. 41)

11.18 Removing the shock absorber

Preparatory work

– Raise the motorcycle with a lift stand. ( p. 35)
