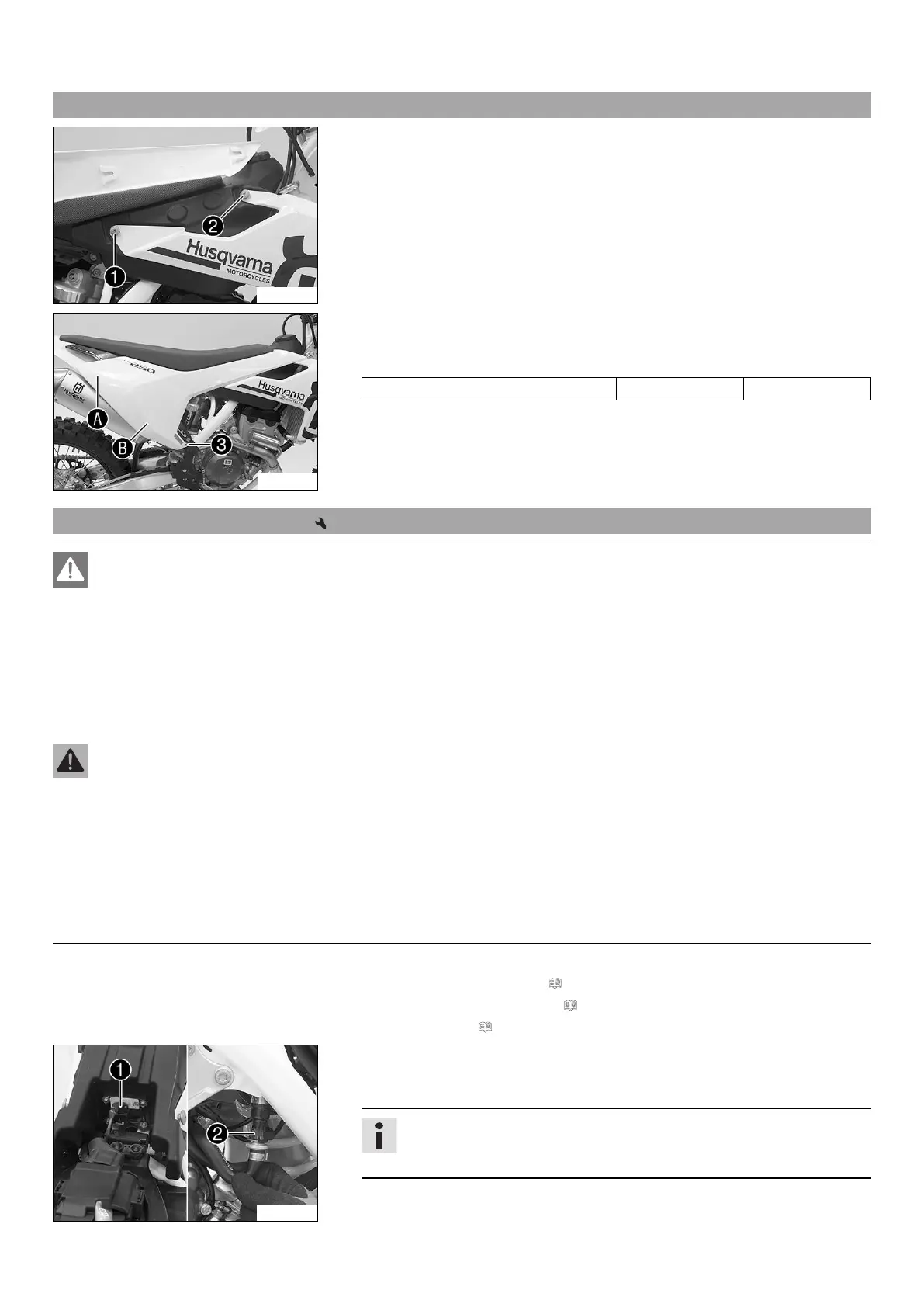

11 SERVICE WORK ON THE CHASSIS 50
11.31 Installing the right side cover
H01410-10
–
Position side cover on collar bushings,
and
, and push toward the rear.
E00263-11
–
Engage side cover in areas
and
.
–
Mount and tighten screw
.
Guideline
Remaining screws, chassis M5 5 Nm (3.7 lbf ft)
11.32 Removing the fuel tank
Danger
Fire hazard Fuel is highly flammable.
The fuel in the fuel tank expands when warm and can escape if overfilled.
– Do not refuel the vehicle in the vicinity of open flames or lit cigarettes.
– Switch off the engine for refueling.
– Make sure that no fuel is spilled; particularly not on hot parts of the vehicle.
– If any fuel is spilled, wipe it off immediately.
– Observe the specifications for refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Avoid skin, eye and clothing contact with fuel.
– Immediately consult a doctor if you swallow fuel.
– Do not inhale fuel vapors.
– In case of skin contact, rinse the affected area with plenty of water.
– Rinse the eyes thoroughly with water, and consult a doctor in case of fuel contact with the eyes.
– Change your clothing in case of fuel spills on them.
– Keep fuels correctly in a suitable canister, and out of the reach of children.
Preparatory work
– Remove the right side cover. ( p. 49)
– Remove the air filter box cover. ( p. 46)
– Remove the seat. ( p. 45)
H01411-10
Main work
–
Unplug connector
of the fuel pump.
–
Clean plug-in connection
of the fuel line thoroughly with compressed air.
Info
Under no circumstances should dirt enter into the fuel line. Dirt in the fuel
line clogs the injection valve!
