15 ELECTRICAL SYSTEM
112
Guideline
Fuse 1 - 10 A - EFI control unit, lambda sensor, combina-
tion instrument, electronic fuel injection, diagnostics con-
nector, fuel vapor retention system, fuse 4
Fuse 2 ‑ 10 A ‑ high beam, low beam, position light, tail
light, license plate lamp
Fuse 3 - 10 A - radiator fan, horn, brake light, turn signal
Fuse 4 - 5 A - fuel pump
Fuses res - 10 A - spare fuse
Info
A faulty fuse has a burned-out fuse wire
A
.
Warning
Fire hazard Incorrect fuses overload the electrical
system.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
– Insert the spare fuse with the correct rating.
Fuse (75011088010) ( p. 144)
Fuse (75011088005) ( p. 144)
Tip
Put a spare fuse in the fuse box so that it is available if
needed.
– Check that the power consumer is functioning properly.
–
Close the fuse box cover
1
.
Finishing work
– Mount the seat. ( p. 67)
– Install the air filter box cover. ( p. 68)

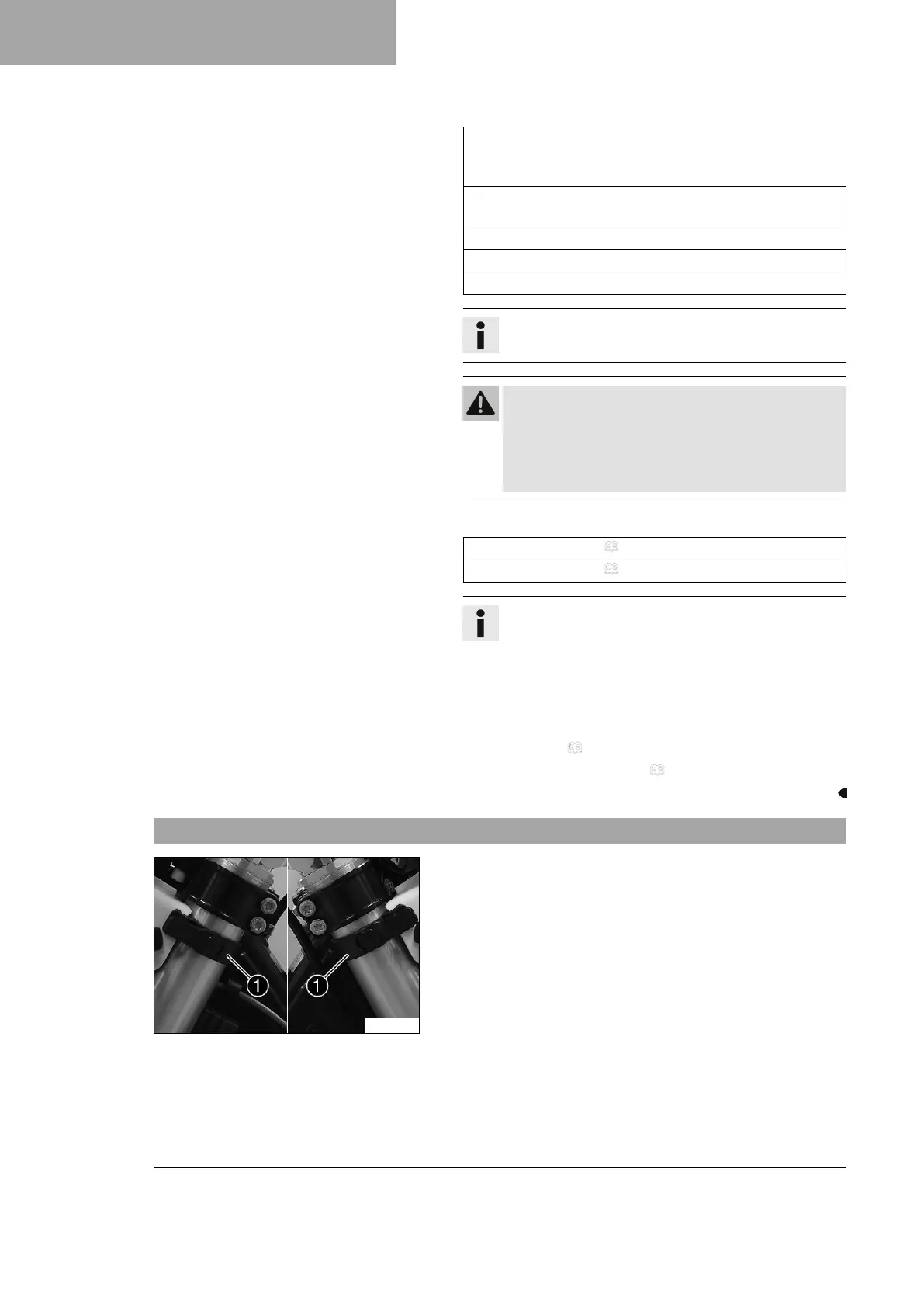

15.6 Removing the headlight mask with the headlight
H03749-10
–
Loosen rubber straps
1
. Slide the headlight mask up and
swing it forward.
