12 SERVICE WORK ON THE CHASSIS
66

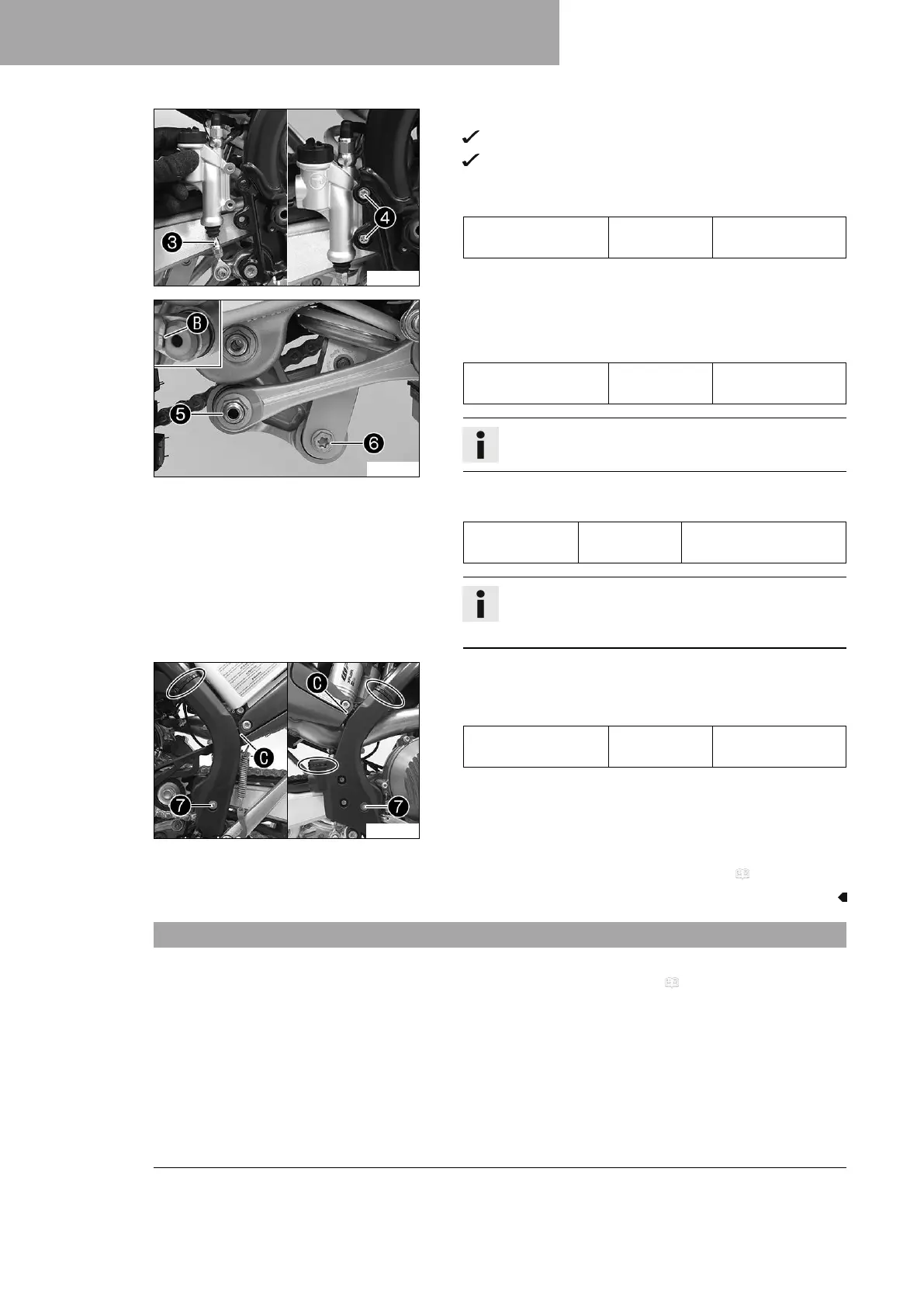

F02307-10
– Position the foot brake cylinder.
Push rod
3
engages in the foot brake cylinder.
The dust boot is correctly positioned.
–
Mount and tighten screws
4
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
F02308-10
– Position the angle lever and linkage lever.
–
Mount and tighten fitting
5
.
Guideline
Nut, linkage lever on
angle lever
M14x1.5 60 Nm (44.3 lbf ft)
Info
Pay attention to flat area
B
.
–
Mount and tighten screw
6
.
Guideline
Screw, bottom
shock absorber
M10 60 Nm (44.3 lbf ft)
Loctite
®
2701™
Info
Raise the link fork slightly to be able to mount the
screw more easily.
S03555-11
–
Attach frame protector in area
C
and position.
–
Mount and tighten screws
7
with the washers.
Guideline
Screw, frame pro-
tector
M5 3 Nm (2.2 lbf ft)
– Mount the new cable ties.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 54)
