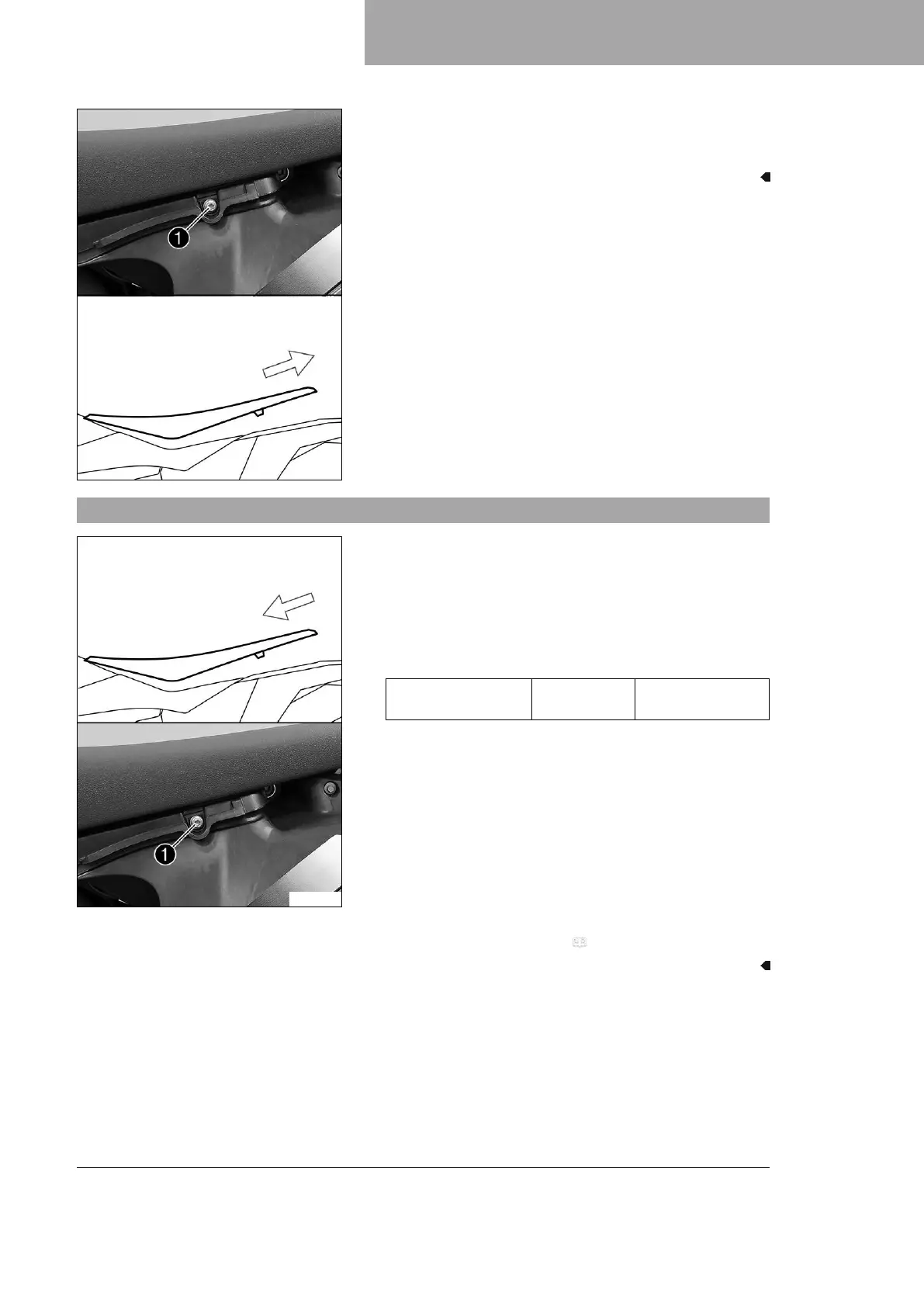

SERVICE WORK ON THE CHASSIS 12

S03559-10

Main work

–

Remove screw

with the bushing.

– Pull seat back and lift it off.

12.19 Mounting the seat

S03559-11

Main work

– Mount the front of the seat on the collar bushing of the fuel

tank and the rear in the bracket.

– Push the seat forward.

– Make sure the seat is correctly latched in place.

–

Mount and tighten screw

with the bushing.

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

Finishing work

– Install the air filter box cover. ( p. 68)
