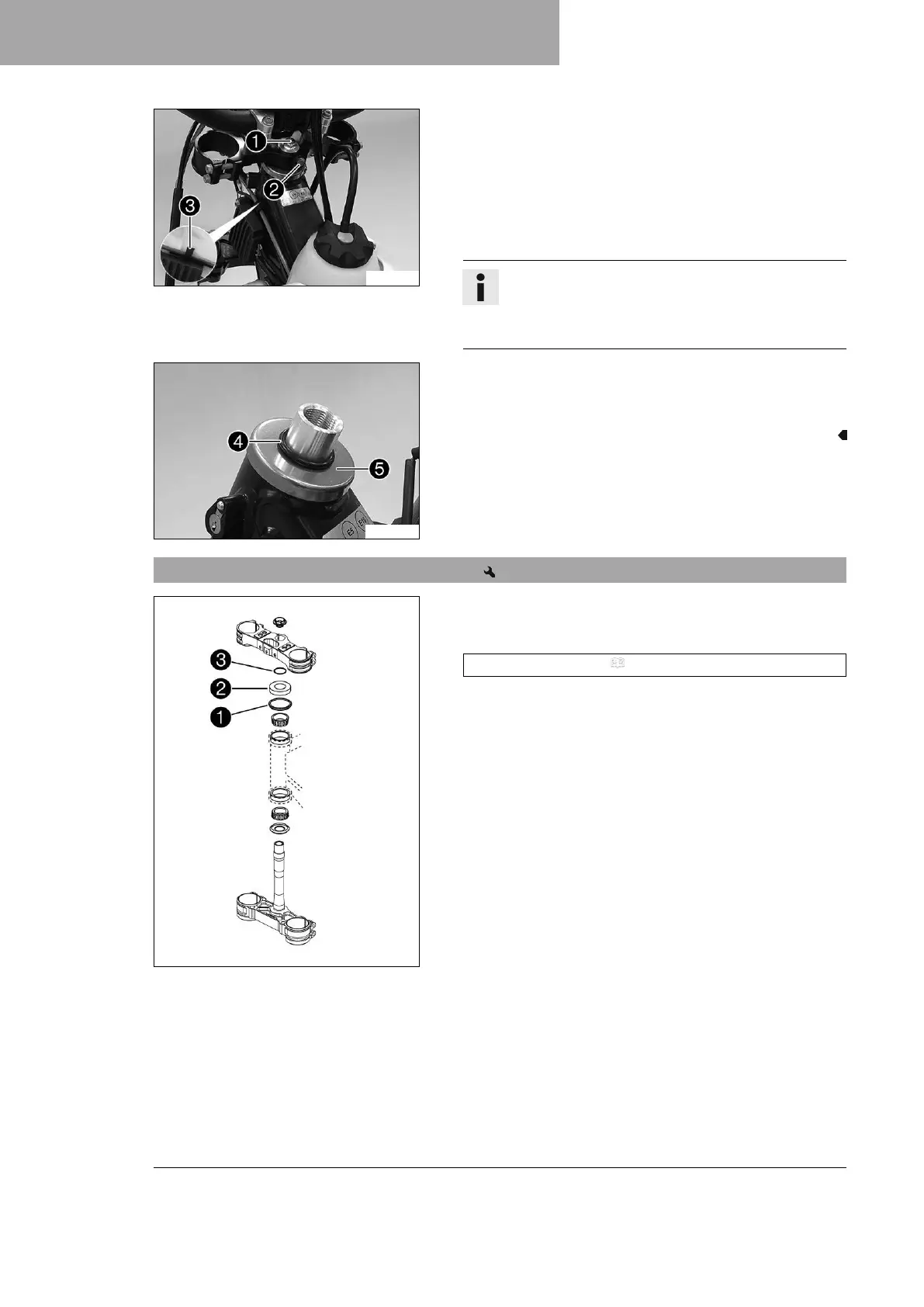

12 SERVICE WORK ON THE CHASSIS
58
S03552-10
Main work
–
Remove screw
1
.
–
Remove screw
2
.
–
Open cable holder
3
in front of the left radiator and detach
the clutch line.
– Take off the upper triple clamp with the handlebar and set
aside.
Info
Protect the components against damage by covering
them.
Do not kink the cables and lines.
H03683-10
–
Remove O-ring
4
and protective ring
5
.
– Remove the lower triple clamp with the steering stem.
– Remove the upper steering head bearing.
12.10 Installing the lower triple clamp
B01632-10
Main work
– Clean the bearing and sealing elements, check for damage,
and grease.
High viscosity grease ( p. 150)
– Position the lower triple clamp with the steering stem. Mount
upper steering head bearing.
–
Check whether upper steering head seal
1
is correctly posi-
tioned.
–
Mount protective ring
2
and O-ring
3
.
