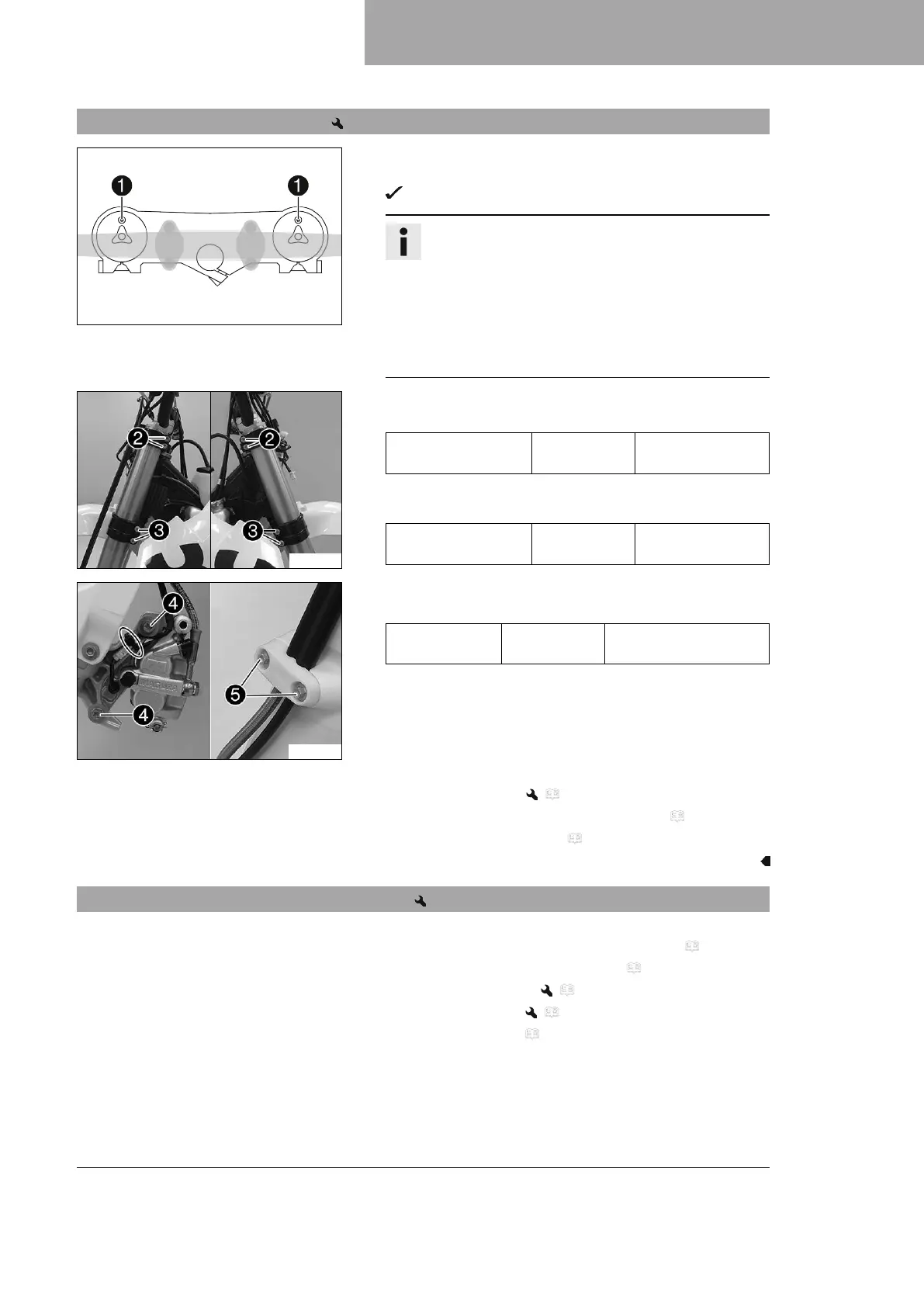

12.8 Installing the fork legs
402556-10
Main work
– Position the fork legs.
Bleeder screws
1
are positioned toward the front.
Info
The compression damping is located in left fork
leg COMP (white adjuster). The rebound damping is
located in right fork leg REB (red adjuster).
Grooves are milled into the side of the upper end of
the fork legs. The second milled groove (from the top)
must be flush with the upper edge of the upper triple
clamp.
S03576-10
–
Tighten screws
2
.
Guideline
Screw, top triple
clamp
M8 17 Nm (12.5 lbf ft)
–
Tighten screws
3
.
Guideline
Screw, bottom triple
clamp
M8 15 Nm (11.1 lbf ft)
H03679-10
–
Position the brake caliper, and mount and tighten screws
4
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Mount the cable ties.
– Position the brake line, the wiring harness, and the clamp.
Mount and tighten screws
5
.
Finishing work
– Install the front wheel. ( p. 101)
– Install the headlight mask with the headlight. ( p. 113)
– Check the headlight setting. ( p. 115)
12.9 Removing the lower triple clamp
Preparatory work
– Remove the headlight mask with the headlight. ( p. 112)
– Raise the motorcycle with a lift stand. ( p. 54)
– Remove the front wheel. ( p. 100)
– Remove the fork legs. ( p. 56)
– Remove front fender. ( p. 62)
