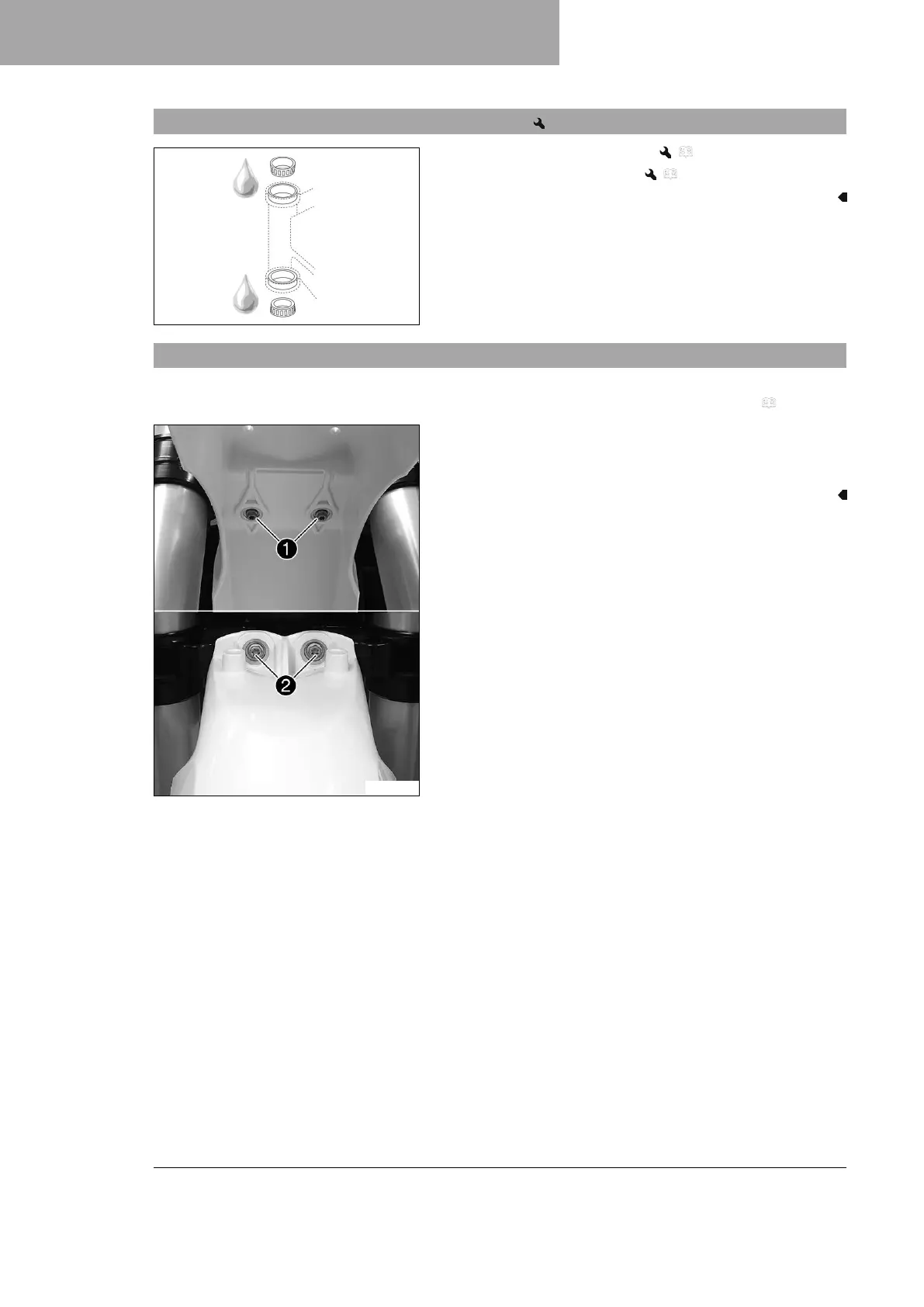

12 SERVICE WORK ON THE CHASSIS

12.13 Lubricating the steering head bearing

H02387-01

– Remove the lower triple clamp. ( p. 57)

– Install the lower triple clamp. ( p. 58)

12.14 Removing front fender

Preparatory work

– Remove the headlight mask with the headlight. ( p. 112)

H03690-10

Main work

–

Remove screws

–

Remove screws

. Take off the front fender.

Default Chapter4
