4 VIEW OF VEHICLE

16

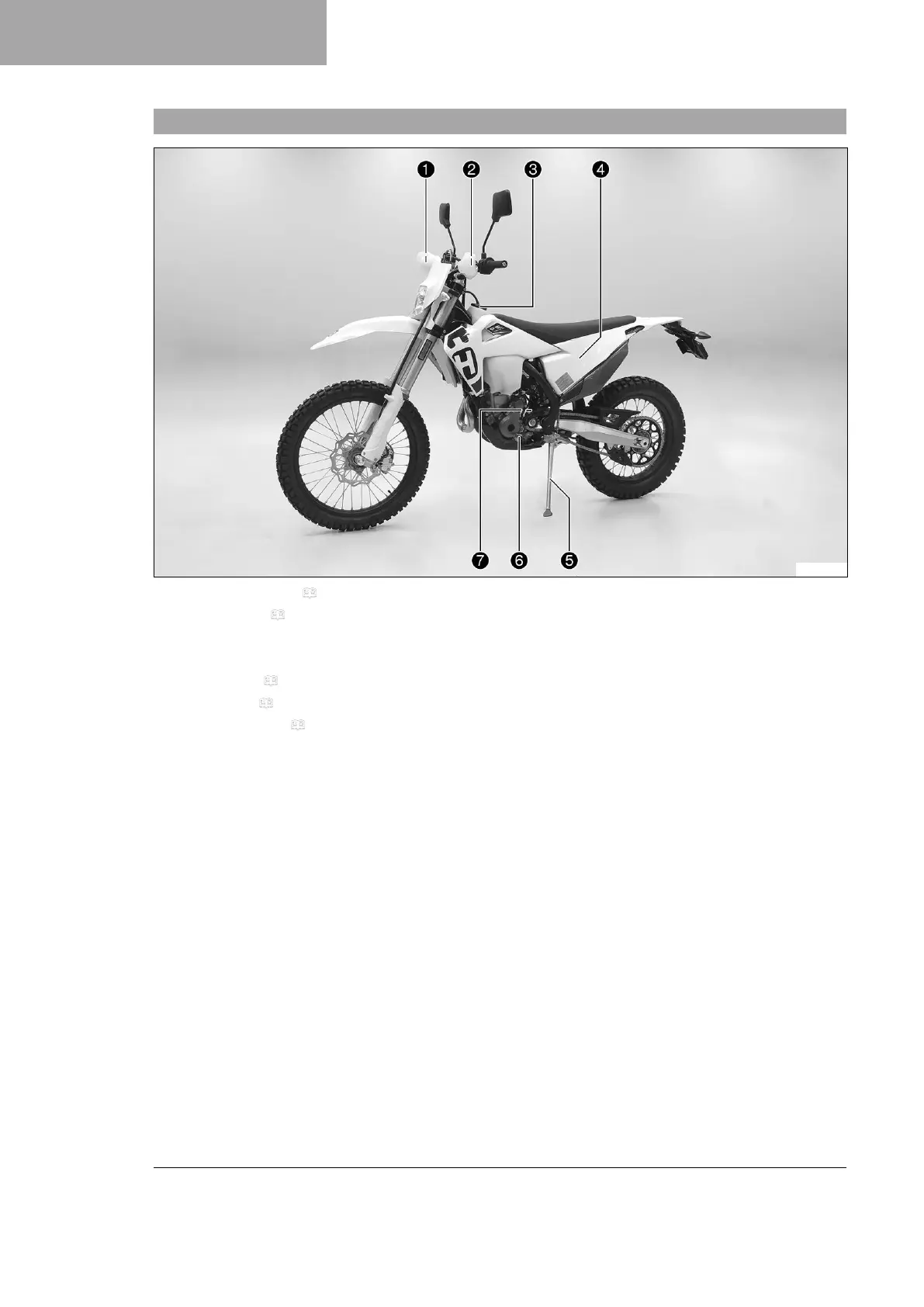

4.1 View of vehicle, front left (example)

S03601-10

1

Hand brake lever ( p. 20)

2

Clutch lever ( p. 20)

3

Fuel tank filler cap

4

Air filter box cover

5

Side stand ( p. 25)

6

Shift lever ( p. 24)

7

Engine number ( p. 19)

Table of Contents

Default Chapter4
- Table of Contents4
1 Means of Representation8
- Symbols Used8
- Formats Used8
2 Safety Advice 29
- Use Definition - Intended Use9
- Misuse9
- Degrees of Risk and Symbols9
- Overview of Labels10
- Reporting Safety Defects12
- Noise Emission Warranty12
- Manufacturer Warranty for the Exhaust Monitoring System12
- Operating Noise Warning13
- Consumer Rights13
- Tampering Warning13
- Safe Operation14
- Protective Clothing14
- Work Rules14
- Environment15
- Owner's Manual15
3 Important Notes16
- Manufacturer Warranty, Implied Warranty16
- Fuel, Auxiliary Substances16
- Spare Parts, Accessories16
- Service16
- Figures16
- Customer Service17
4 View of Vehicle18
- View of Vehicle, Front Left (Example)18
- View of Vehicle, Rear Right (Example)19
5 Serial Numbers20
- Vehicle Identification Number20
- Type Label20
- Key Number20
- Engine Number21
- Fork Part Number21
- Shock Absorber Article Number21
6 Controls22
- Clutch Lever22
- Hand Brake Lever22
- Throttle Grip22
- Ignition Lock22
- Emergency off Switch23
- Start Button23
- Horn Button23
- Light Switch23
- Turn Signal Switch24
- Overview of Indicator Lamps24
- Opening Fuel Tank Filler Cap24
- Closing the Fuel Tank Filler Cap25
- Cold Start Button25
- Idle Speed Adjusting Screw26
- Shift Lever26
- Foot Brake Lever27
- Side Stand27
- Steering Lock27
- Locking the Steering28
- Unlocking the Steering28
7 Combination Instrument 729
- Combination Instrument Overview29
- Activation29
- Message on the Combination Instrument29
- Setting the Combination Instrument29
- Adjusting the Kilometers or Miles30
- Adjusting the Clock31
- Setting the Service Display31
- Speed, Time, and DST Distance 132
- Speed, Time, and DST2 Distance 232
- AVG Average Speed, ART Operating Hours, and ODO Total Distance Covered33
8 Preparing Foruse34
- Preparing for Use34
- Advice on Preparing for First Use34
- Running-In the Engine35
- Starting Power of Lithium-Ion Batteries at Low Temperatures36
- Preparing the Vehicle for Difficult Operating Conditions36
- Preparing the Vehicle for Riding on Dry Sand36
- Preparing the Vehicle for Riding on Wet Sand37
- Preparing the Vehicle for Riding on Wet and Muddy Circuits37
- Preparing Vehicle for High Temperatures or Slow Riding38
- Preparing the Vehicle for Low Temperatures or Snow38
9 Riding Instructions 939
- Checks and Maintenance Measures When Preparing for Use39
- Starting the Vehicle39
- Starting off40
- Shifting, Riding40
- Braking41
- Stopping, Parking41
- Transporting42
- Refueling43
10 Service Schedule44
- Additional Information44
- Required Work44
- Recommended Work45
11 Tuning the Chassis 1147
- Checking the Basic Chassis Setting with Rider's Weight47
- Compression Damping of the Shock Absorber47
- Adjusting the Low-Speed Compression Damping of the Shock Absorber47
- Adjusting the High-Speed Compression Damping of the Shock Absorber48
- Adjusting the Rebound Damping of the Shock Absorber49
- Measuring the Dimension of the Rear Wheel Unloaded49
- Checking the Static Sag of the Shock Absorber50
- Checking the Riding Sag of the Shock Absorber50
- Adjusting the Spring Preload of the Shock Absorber51
- Adjusting the Riding Sag52
- Checking the Basic Setting of the Fork52
- Adjusting the Compression Damping of the Fork53
- Adjusting the Rebound Damping of the Fork53
- Adjusting the Spring Preload of the Fork54
- Handlebar Position54
- Adjusting the Handlebar Position55
12 Service Work on the Chassis56
- Raising the Motorcycle with a Lift Stand56
- Removing the Motorcycle from the Lift Stand56
- Bleeding the Fork Legs56
- Cleaning the Dust Boots of the Fork Legs57
- Removing the Fork Protector57
- Installing the Fork Protector58
- Removing the Fork Legs58
- Installing the Fork Legs59
- Removing the Lower Triple Clamp59
- Installing the Lower Triple Clamp60
- Checking Steering Head Bearing Play62
- Adjusting the Steering Head Bearing Play63
- Lubricating the Steering Head Bearing64
- Removing Front Fender64
- Installing Front Fender65
- Removing the Shock Absorber65
- Installing the Shock Absorber67
- Removing the Seat68
- Mounting the Seat69
- Removing the Air Filter Box Cover70
- Installing the Air Filter Box Cover70
- Removing the Air Filter70
- Installing the Air Filter71
- Cleaning the Air Filter and Air Filter Box71
- Removing the Right Side Cover72
- Installing the Right Side Cover73
- Removing the Main Silencer73
- Installing the Main Silencer74
- Cleaning the Spark Arrestor74
- Changing the Glass Fiber Yarn Filling in the Main Silencer76
- Removing the Fuel Tank77
- Installing the Fuel Tank78
- Checking for Chain Dirt Accumulation80
- Cleaning the Chain80
- Checking the Chain Tension81
- Adjusting the Chain Tension81
- Checking the Chain, Rear Sprocket, Engine Sprocket, and Chain Guide82
- Checking the Frame85
- Checking the Link Fork85
- Checking Throttle Cable Routing85
- Checking the Rubber Grip86
- Adjusting the Basic Position of the Clutch Lever87
- Checking/Correcting the Fluid Level of Hydraulic Clutch87
- Changing the Hydraulic Clutch Fluid88
- Removing the Engine Guard89
- Installing the Engine Guard89
13 Brake System90
- Adjusting the Basic Position of the Hand Brake Lever90
- Checking the Brake Discs90
- Checking the Front Brake Fluid Level91
- Adding the Front Brake Fluid91
- Checking the Front Brake Linings92
- Changing the Front Brake Linings93
- Checking the Free Travel of Foot Brake Lever95
- Adjusting the Basic Position of the Foot Brake Lever96
- Checking the Rear Brake Fluid Level96
- Adding Rear Brake Fluid97
- Checking the Rear Brake Linings98
- Changing the Rear Brake Linings98
14 Wheels, Tires102
- Removing the Front Wheel102
- Installing the Front Wheel103
- Removing the Rear Wheel103
- Installing the Rear Wheel104
- Checking the Tire Condition106
- Checking Tire Pressure106
- Checking Spoke Tension107
15 Electrical System108
- Removing the 12-V Battery108
- Installing the 12-V Battery109
- Charging the 12-V Battery111
- Changing Main Fuse112
- Changing the Fuses of Individual Power Consumers113
- Removing the Headlight Mask with the Headlight114
- Installing the Headlight Mask with the Headlight115
- Changing the Headlight Bulb116
- Changing the Turn Signal Bulb117
- Checking the Headlight Setting117
- Adjust the Headlight Range118
- Changing the Combination Instrument Battery118
- Diagnostics Connector119
16 Cooling System120
- Checking the Antifreeze and Coolant Level120
- Checking the Coolant Level121
- Draining the Coolant121
- Refilling with Coolant122
- Changing the Coolant123
17 Tuning the Engine124
- Checking the Throttle Cable Play124
- Adjusting the Throttle Cable Play124
- Adjusting the Characteristic Map of the Throttle Response125
- Adjusting the Idle Speed127
- Teaching the Throttle Valve Position127
- Checking the Basic Position of the Shift Lever128
- Adjusting the Basic Position of the Shift Lever128
18 Service Work on the Engine130
- Changing the Fuel Screen130
- Checking the Engine Oil Level131
- Changing the Engine Oil and Oil Filter, Cleaning the Oil Screen131
- Adding Engine Oil134
19 Cleaning, Care 19135
- Cleaning the Motorcycle135
- Checks and Maintenance Steps for Winter Operation136
20 Storage 20137
- Preparing for Use after Storage138
21 Troubleshooting 21139
22 Technical Data142
- Engine142
- Engine Tightening Torques143
- Capacities145
- Engine Oil145
- Coolant145
- Fuel145
- Chassis145
- Electrical System146
- Tires146
- Fork147
- Shock Absorber147
- Chassis Tightening Torques148
23 Substances150
24 Auxiliary Substances152
25 Standards154
26 Index of Special Terms 26155
