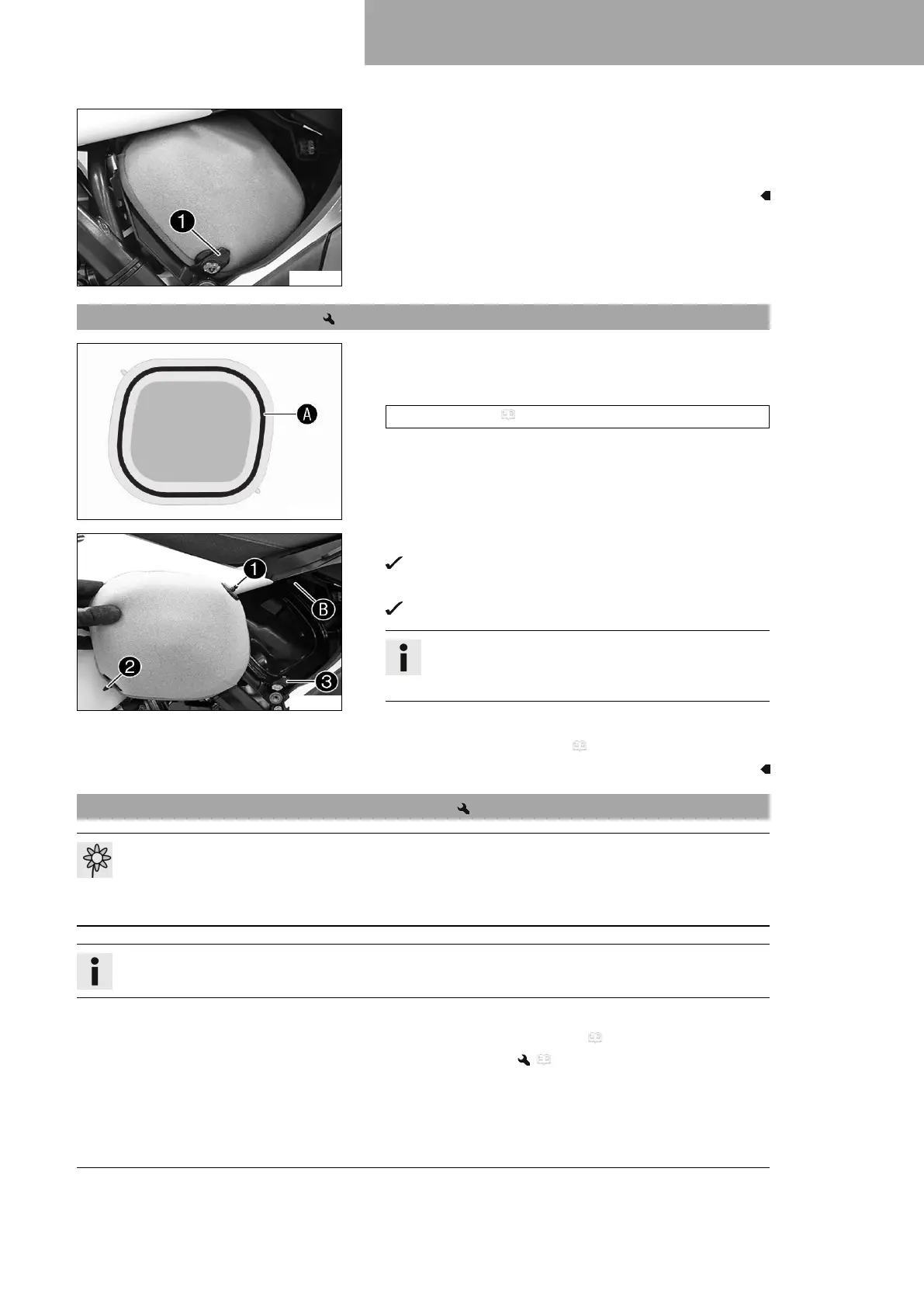

SERVICE WORK ON THE CHASSIS 12
69
S03573-10
Main work
–
Detach retaining tab
1
. Remove air filter with air filter sup-
port.
– Remove air filter from air filter support.
12.23 Installing the air filter
H02459-01
Main work
– Mount the clean air filter on the air filter support.
–
Grease the air filter in area
A
.
Long-life grease ( p. 150)
S03574-10
–
Insert air filter and position retaining pin
1
in bushing
B
.
The air filter is correctly positioned.
–
Insert retaining tab
3
.
Retaining pin
2
is secured with retaining tab
3
.
Info
If the air filter is not mounted correctly, dust and dirt
may enter the engine and result in damage.
Finishing work
– Install the air filter box cover. ( p. 68)
12.24 Cleaning the air filter and air filter box
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance
with the applicable regulations.
Info
Do not clean the air filter with fuel or petroleum since these substances attack the foam.
Preparatory work
– Remove the air filter box cover. ( p. 68)
– Remove the air filter. ( p. 68)
