6 CONTROLS
20

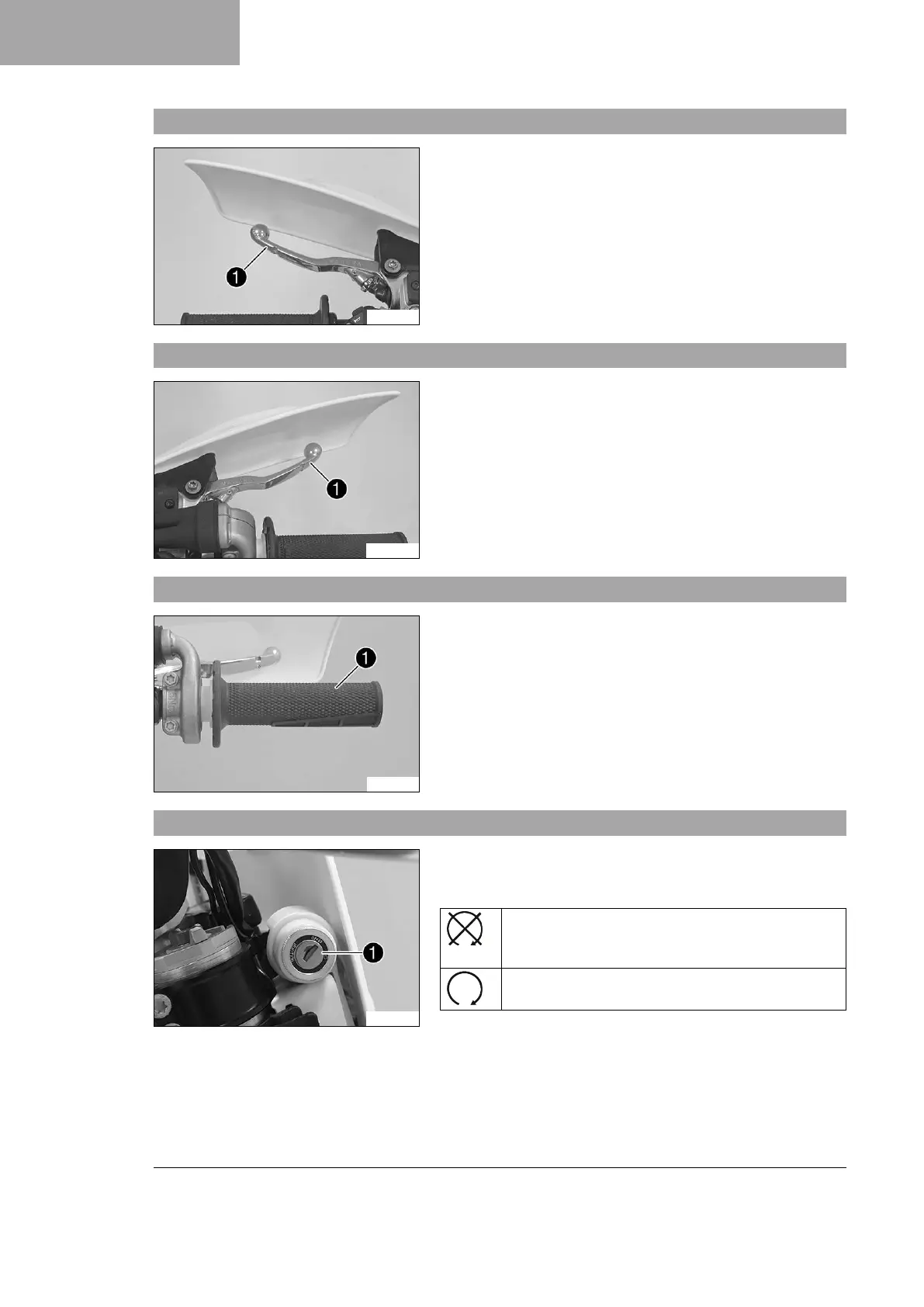

6.1 Clutch lever
F00257-10
Clutch lever
1
is fitted on the handlebar on the left.
The clutch is activated hydraulically and adjusts itself automati-
cally.
6.2 Hand brake lever
S02067-10
The hand brake lever
1
is fitted on the right side of the handle-
bar.
The hand brake lever is used to activate the front brake.
6.3 Throttle grip
F00259-10
The throttle grip
1
is fitted on the right side of the handlebar.
6.4 Ignition lock
S03603-10
Ignition lock
1
is located to the right of the combination instru-
ment.
Possible states
Ignition off – In this position, the ignition circuit
is interrupted, a running engine stops, and a
non-running engine will not start.
Ignition on – In this position, the ignition circuit is
closed and the engine can be started.
