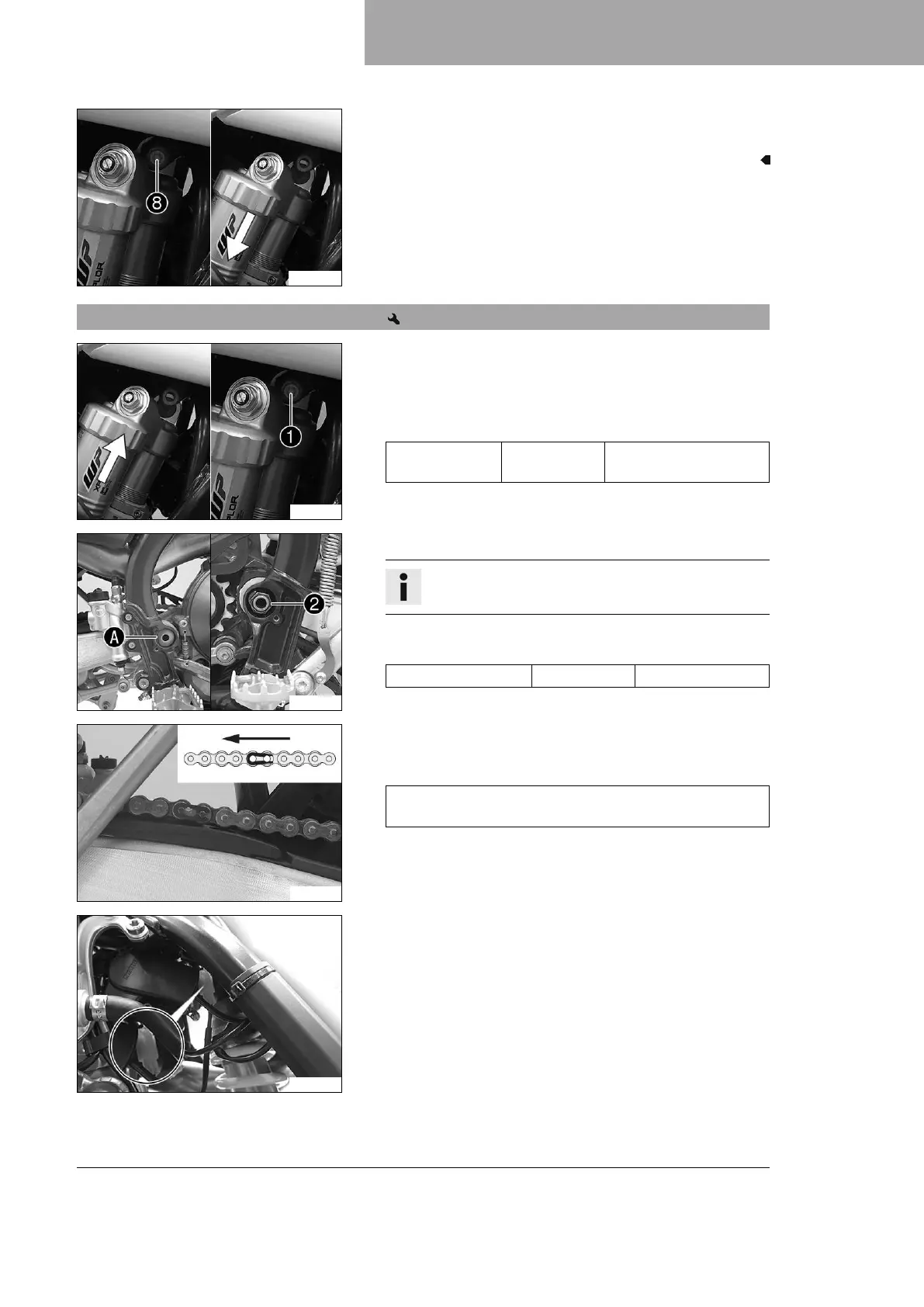

SERVICE WORK ON THE CHASSIS 12
65
H03699-10
–
Hold the shock absorber and remove screw
8
.
– Remove the shock absorber carefully at the bottom.
12.17 Installing the shock absorber
F02304-10
Main work
– Carefully position the shock absorber into the vehicle from
the bottom.
–
Mount and tighten screw
1
.
Guideline
Screw, top
shock absorber
M10 60 Nm (44.3 lbf ft)
Loctite
®
2701™
S03558-10
– Position the link fork and mount the swingarm pivot.
Info
Pay attention to flat area
A
.
–
Mount and tighten nut
2
.
Guideline
Nut, fork pivot M16x1.5 100 Nm (73.8 lbf ft)
F02955-10
– Mount the chain.
– Connect the chain with the connecting link.
Guideline
The closed side of the chain joint lock must face in the
direction of travel.
S03556-10
– Join plug-in connector of the brake light switch.
