SERVICE WORK ON THE CHASSIS 12
85

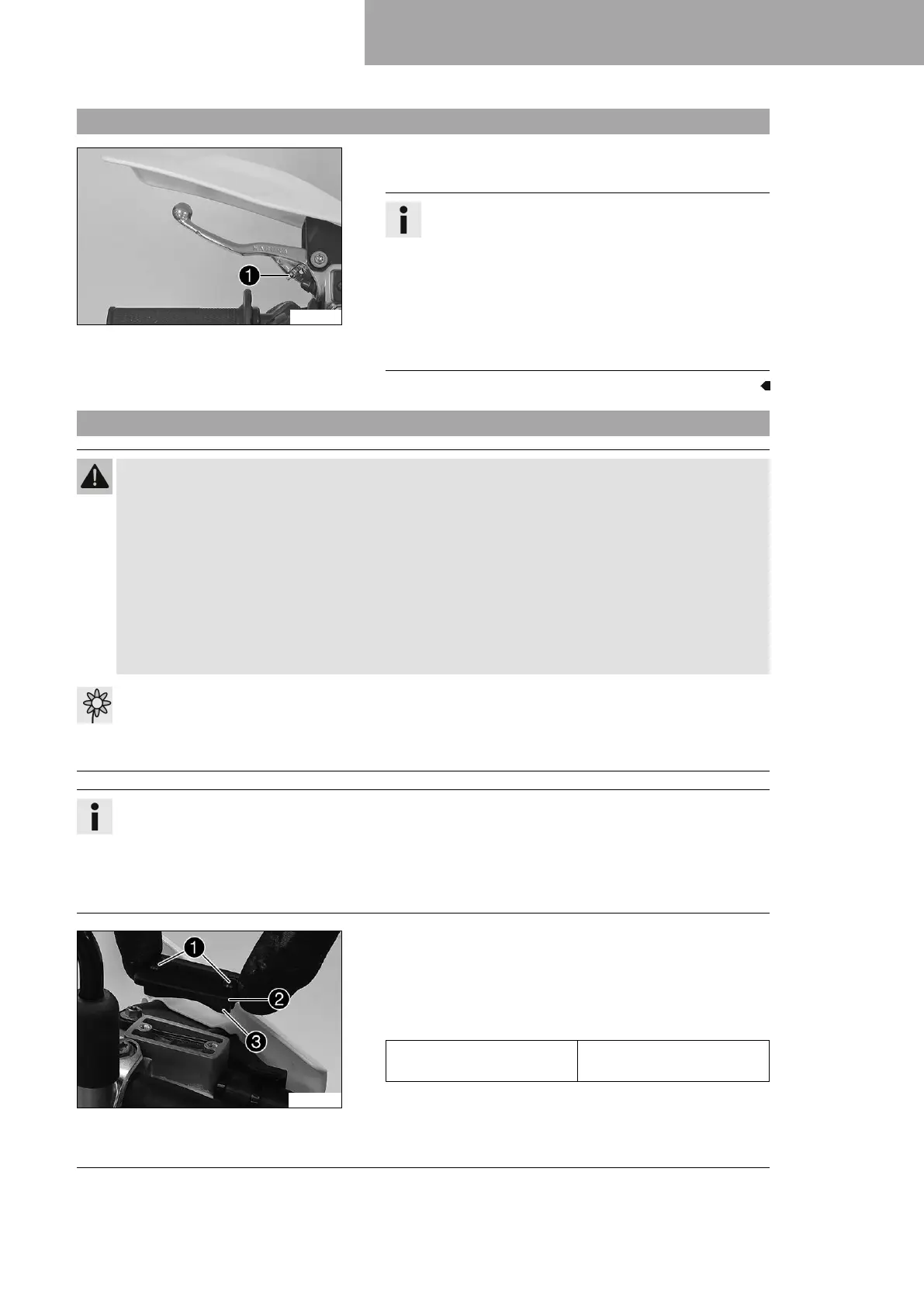

12.42 Adjusting the basic position of the clutch lever
F00310-10
– Adjust basic position of the clutch lever to your hand size by
turning adjusting screw
1
.
Info
When the adjusting screw is turned clockwise, the
clutch lever moves closer to the handlebar.
When the adjusting screw is turned counterclockwise,
the clutch lever moves away from the handlebar.
The range of adjustment is limited.
Turn the adjusting screw by hand only, and do not
apply any force.
Do not make any adjustments while riding.
12.43 Checking/correcting the fluid level of hydraulic clutch
Warning
Skin irritation Brake fluid causes skin irritation.
– Keep brake fluid out of the reach of children.
– Wear suitable protective clothing and safety glasses.
– Do not allow brake fluid to come into contact with the skin, the eyes or clothing.
– Consult a doctor immediately if brake fluid has been swallowed.
– Rinse the affected area with plenty of water in the event of contact with the skin.
– Rinse eyes thoroughly with water immediately and consult a doctor if brake fluid comes into contact
with the eyes.
– If brake fluid spills on to your clothing, change the clothing.
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance
with the applicable regulations.
Info
The fluid level rises with increasing wear of the clutch facing discs.
Never use DOT 5 brake fluid. It is silicone-based and purple in color. Oil seals and clutch lines are not
designed for DOT 5 brake fluid.
Avoid contact between brake fluid and painted parts. Brake fluid attacks paint.
Only use clean brake fluid from a sealed container.
H03713-10
– Move the hydraulic clutch fluid reservoir mounted on the han-
dlebar into a horizontal position.
–
Remove screws
1
.
–
Take off cover
2
with membrane
3
.
– Check the fluid level.
Fluid level below container
rim
4 mm (0.16 in)
» If the fluid level does not meet specifications:
– Correct the fluid level of the hydraulic clutch.
