IBM 5100 User Manual

Display

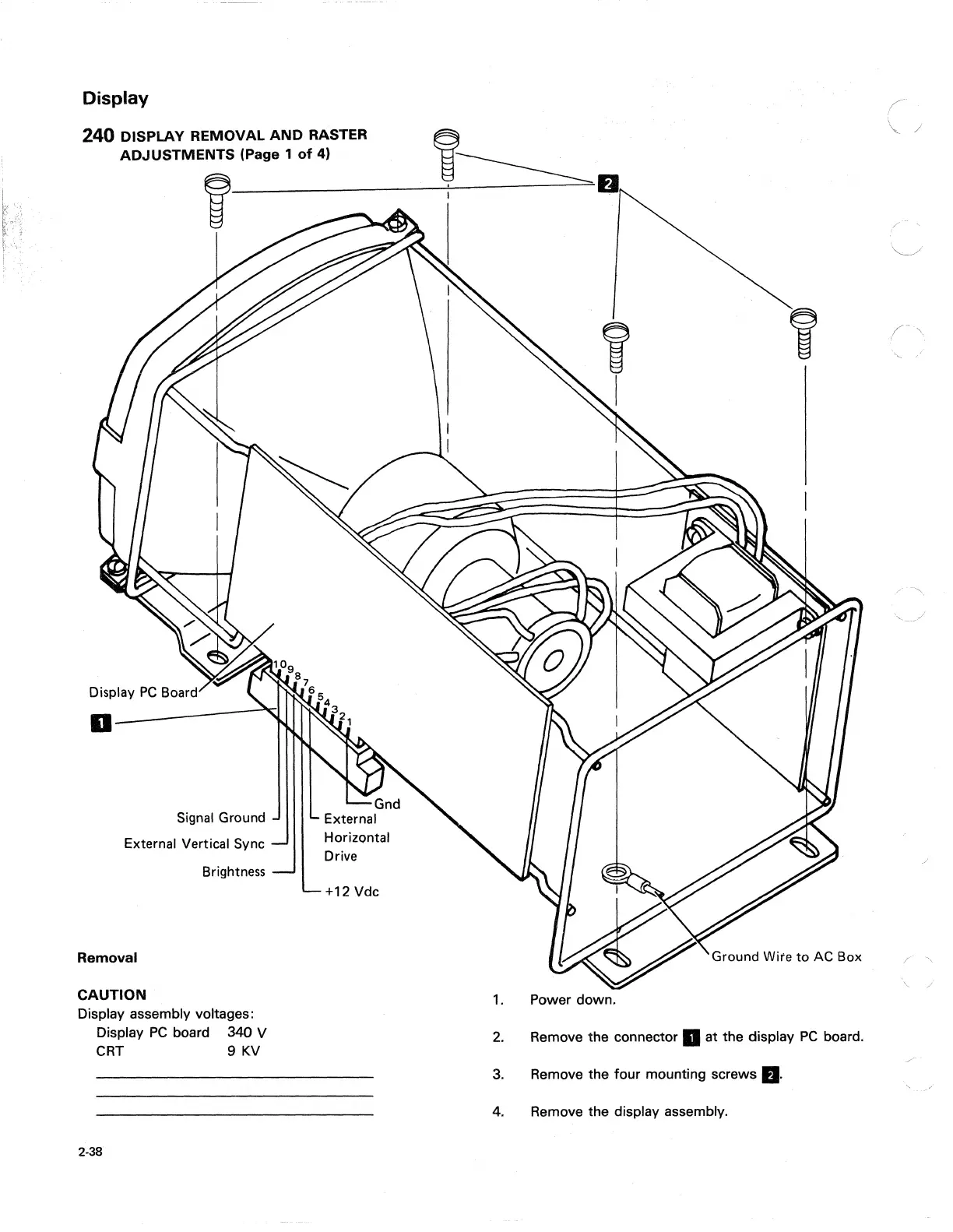

240 DISPLAY REMOVAL AND RASTER
ADJUSTMENTS (Page 1 of 4)
Display PC Board
0----""'1
Signal Ground
External Vertical Sync
Brightness
Removal
CAUTION
Display assembly voltages:
Display
PC board 340 V
CRT 9 KV
2-38
Horizontal
Drive
+12 Vdc
i __________
I . fJ
I -
i
I
Ground Wire to AC Box
1. Power down.
2. Remove the connector. at the display PC board.
3. Remove the four mounting screws II.
4. Remove the display assembly.
(
\",- /
/-
\.'" J/
\. /

IBM 5100 Specifications

General

Release Year	1975
RAM	16 KB - 64 KB
Storage	204 KB tape drive
Display	5-inch CRT
Operating System	APL/BASIC
Processor	IBM PALM (1.9 MHz)
