I/O resources
The I/O resources that are required for a storage image consist of various
components.
For one storage image, the following hardware resources are required:
v 2 SCSI controllers with 2 disk drives each
v 2 Ethernet ports (to communicate with the HMC)
v 1 Thin Device Media Bay (for example, a CD or a DVD which can be shared
between the LPARs)
Each
storage image has two physical disk drives in each processor complex. Each
disk drive contains three logical volumes, the boot volume and two logical volumes
for the memory save dump function. These three logical volumes are mirrored
across the two physical disk drives for each LPAR. For the DS8300 Model 9A2,
there are four drives in one physical processor complex.
Processor and memory allocation
In the DS8300 Model 9A2 each processor complex has four processors and up to
128 GB memory capacity. There is also a 50/50 split for processor and memory
allocation. Therefore, every LPAR has two processors and every storage image has
four processors.
The memory limit depends on the total amount of available memory in the whole
system. The following memory allocations per storage image are available:
v 32 GB (16 GB per processor complex, 16 GB per storage image)
v 64 GB (32 GB per processor complex, 32 GB per storage image)
v 128 GB (64 GB per processor complex, 64 GB per storage image)
Storage Image 1
S-HMC
Processor complex 0
Processors2 Processors
Memory
2Processors
Memory
I/O drawer
0
HA DAHA HA HADA
RIO-G interface
SCSI controller
Ethernet-Port
RIO-G interface
RIO-G interface
SCSI controller
Ethernet-Port
RIO-G interface
RIO-G interface
I/O drawer
3
HA DAHA HA HADA
CD/DVD
Storage Image 2
boot
data data
boot
data data
AA'
boot
data data
boot
data data
CC'
I/O drawer
2
HA DAHA HA HADA
I/O drawer
1
HA DAHA HA HADA
Processor complex 0
Processors2 Processors
Memory
2Processors
Memory
RIO-G interface
SCSI controller
Ethernet-Port
RIO-G interface
RIO-G interface
SCSI controller
Ethernet-Port
RIO-G interface
RIO-G interface
CD/DVD
boot
data data
boot
data data
BB'
boot
data data
boot
data data
DD'
F2c00154

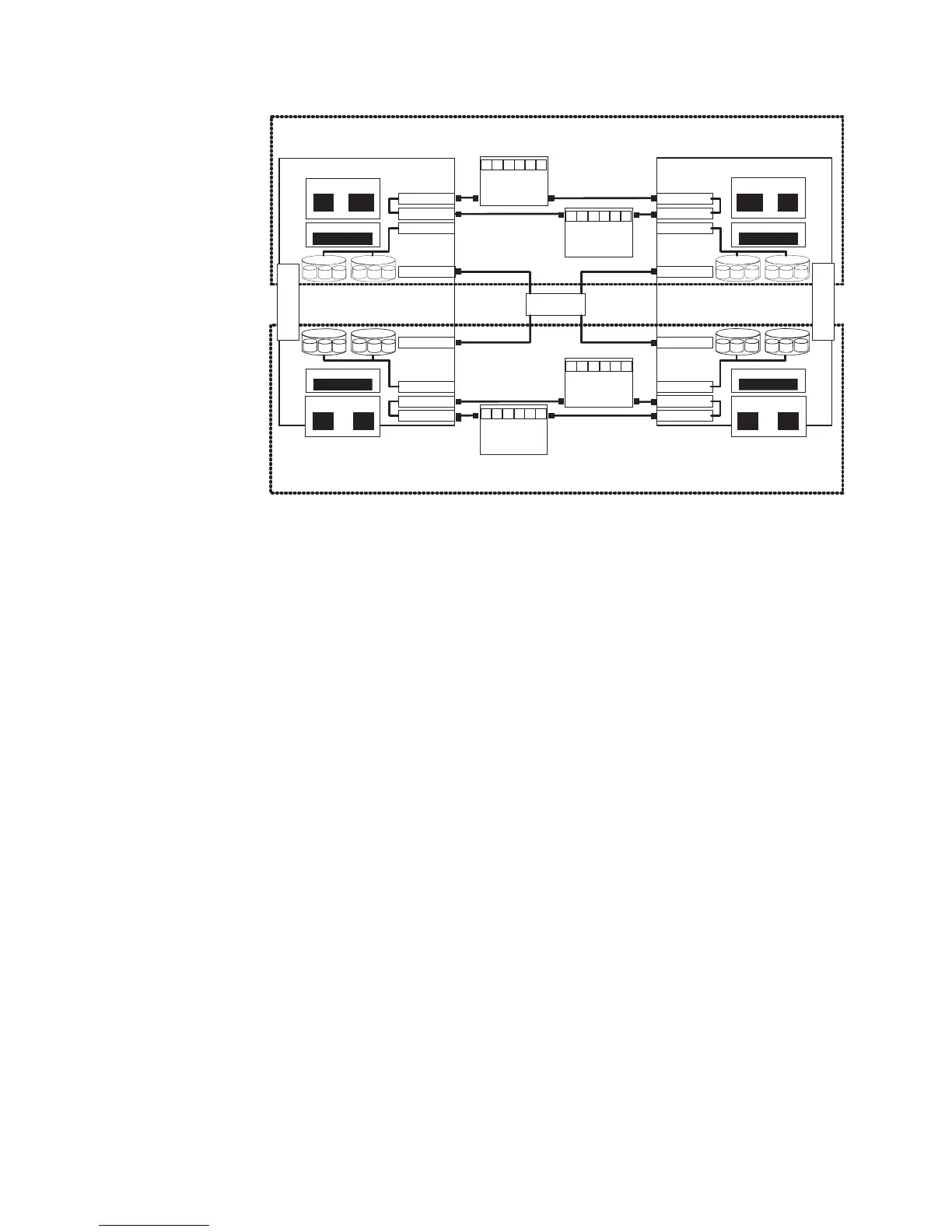

Figure 7. Storage image resource allocation in the processor complexes of the DS8300
Chapter 7. Storage system logical partition 97
