MD380 User Manual Desc
ription of Function Codes
- 215 -

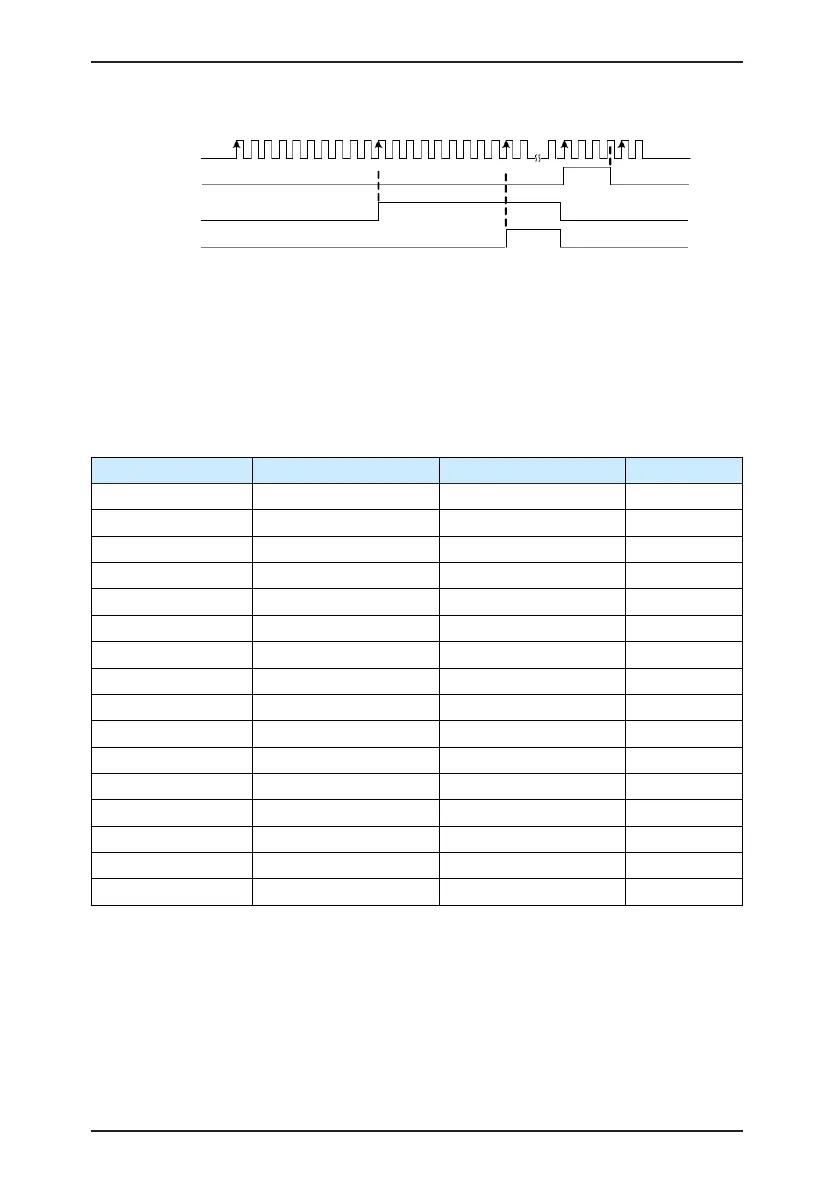

Figure 6-31 Reaching the set count value and designated count value
Count pulses input
Count pulses input
Designated count
value reached output
Set count value
reached output
1 2 3
1110 12 20 2119
1 2
Fb-09 = 11
U0-12 = 11
Fb-08 = 20
U0-12 = 20
U0-12 = 0
U0-12: Count value
Group FC: Multi-Reference and Simple PLC Function
The MD380 multi-reference has many functions. Besides multi-speed, it can be used as the
setting source of the V/F separated voltage source and setting source of process PID. In
addition, the multi-reference is relative value.
The simple PLC function is different from the MD380 user programmable function. Simple
PLC can only complete simple combination of multi-reference, while the user programmable
function is more practical. For details, see the descriptions of group A7.
Function Code Parameter Name Setting Range Default
FC-00 Reference 0 -100.0%–100.0% 0.0%
FC-01 Reference 1 -100.0%–100.0% 0.0%
FC-02 Reference 2 -100.0%–100.0% 0.0%
FC-03 Reference 3 -100.0%–100.0% 0.0%
FC-04 Reference 4 -100.0%–100.0% 0.0%
FC-05 Reference 5 -100.0%–100.0% 0.0%
FC-06 Reference 6 -100.0%–100.0% 0.0%
FC-07 Reference 7 -100.0%–100.0% 0.0%
FC-08 Reference 8 -100.0%–100.0% 0.0%
FC-09 Reference 9 -100.0%–100.0% 0.0%
FC-10 Reference 10 -100.0%–100.0% 0.0%
FC-11 Reference 11 -100.0%–100.0% 0.0%
FC-12 Reference 12 -100.0%–100.0% 0.0%
FC-13 Reference 13 -100.0%–100.0% 0.0%
FC-14 Reference 14 -100.0%–100.0% 0.0%
FC-15 Reference 15 -100.0%–100.0% 0.0%
Multi-reference can be the setting source of frequency, V/F separated voltage and process
PID. The multi-reference is relative value and ranges from -100.0% to 100.0%.
As frequency source, it is a percentage relative to the maximum frequency. As V/F
separated voltage source, it is a percentage relative to the rated motor voltage. As process
PID setting source, it does not require conversion.
Multi-reference can be switched over based on different states of DI terminals. For details,
see the descriptions of group F4.
