4.5 Denition and Operation of the Multifunction Key (MF.K)
You can dene the function (command source switchover or rotation direction switchover) of
the multifunction key in F7-01. For details, see the description of F7-01.
4.6 Viewing Status Parameters
In the stop or running state, you can press on the operation panel to display status
parameters. Whether parameters are displayed is determined by the binary bits of values
converted from the values of F7-03, F7-04, and F7-05 in the hexadecimal format.

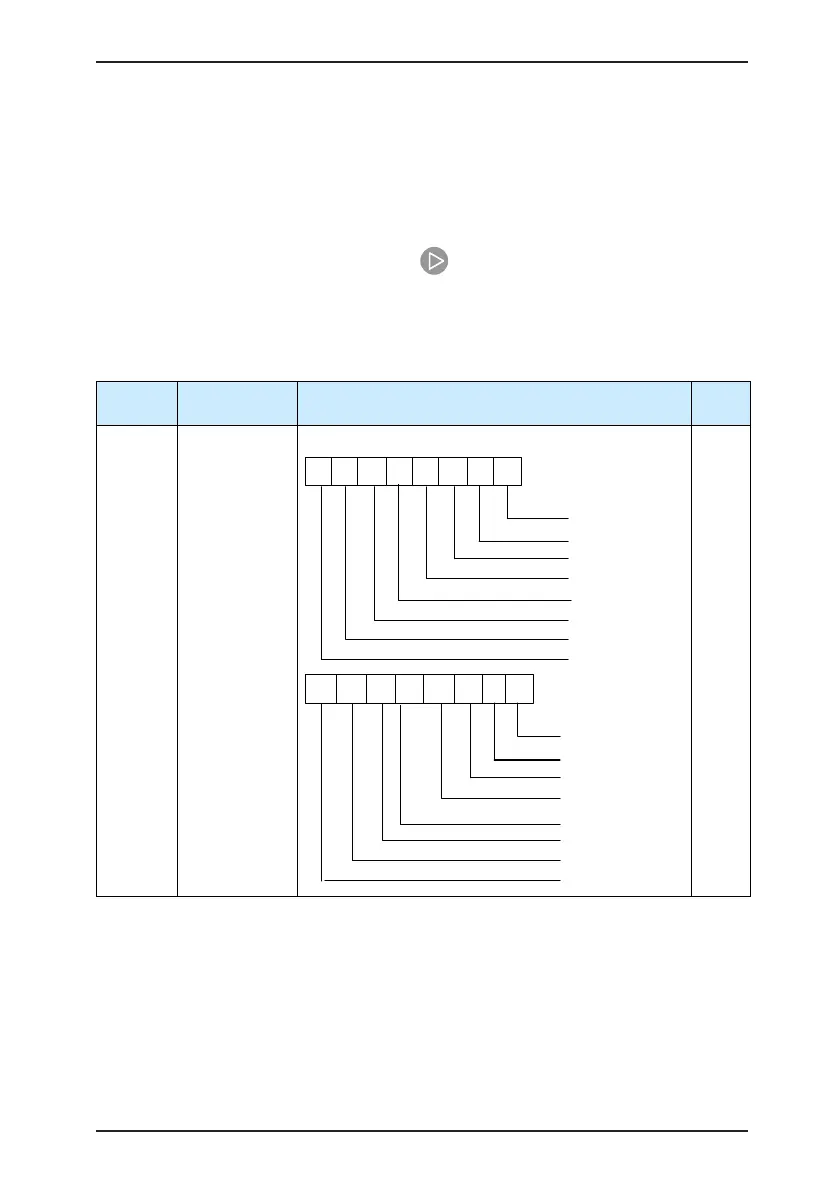

In stop state, a total of 13 status parameters can be displayed, as listed in the following
table.
Function
Code
Parameter
Name
Setting Range Default
F7-05
LED display
stop parameters
0000–FFFF
7 6 5 4 3 2 1 0
Bus voltage (V)
DO output status
AI1 voltage (V)
Count value
Set frequency (Hz)
DI input status
AI2 voltage (V)
AI3 voltage (V)
15 14 12 11 10 9 8
PLC stage
Pulse setting
frequency (kHz)
Length value
Reserved
13
Load speed
PID setting
Reserved
Reserved
33
