In Level III menu, if the parameter has no blinking digit, it means that the parameter cannot
be modied. This may be because:
• Such a function code is only readable, such as, AC drive model, actually detected
parameter and running record parameter.
• Such a function code cannot be modied in the running state and can only be changed
at stop.
4.3 Structure of Function Codes
The MD380, an advanced product based on MD320, adds functions in group F and new
group A and group U.
Function
Code Group
Function Description
F0-FP
Standard AC drive
function code group
Compatible with MD320 series function codes and
adding some function codes.
A0 to AC
Advanced function
code group
Multi-motor parameters, AI/AO correction, optimization
control, PLC card extension function setting.
U0 to U3
Running state
function code group
Display of AC drive basic parameters
In the function code display state, select the required function code pressing the key or
, as shown in the following gure.

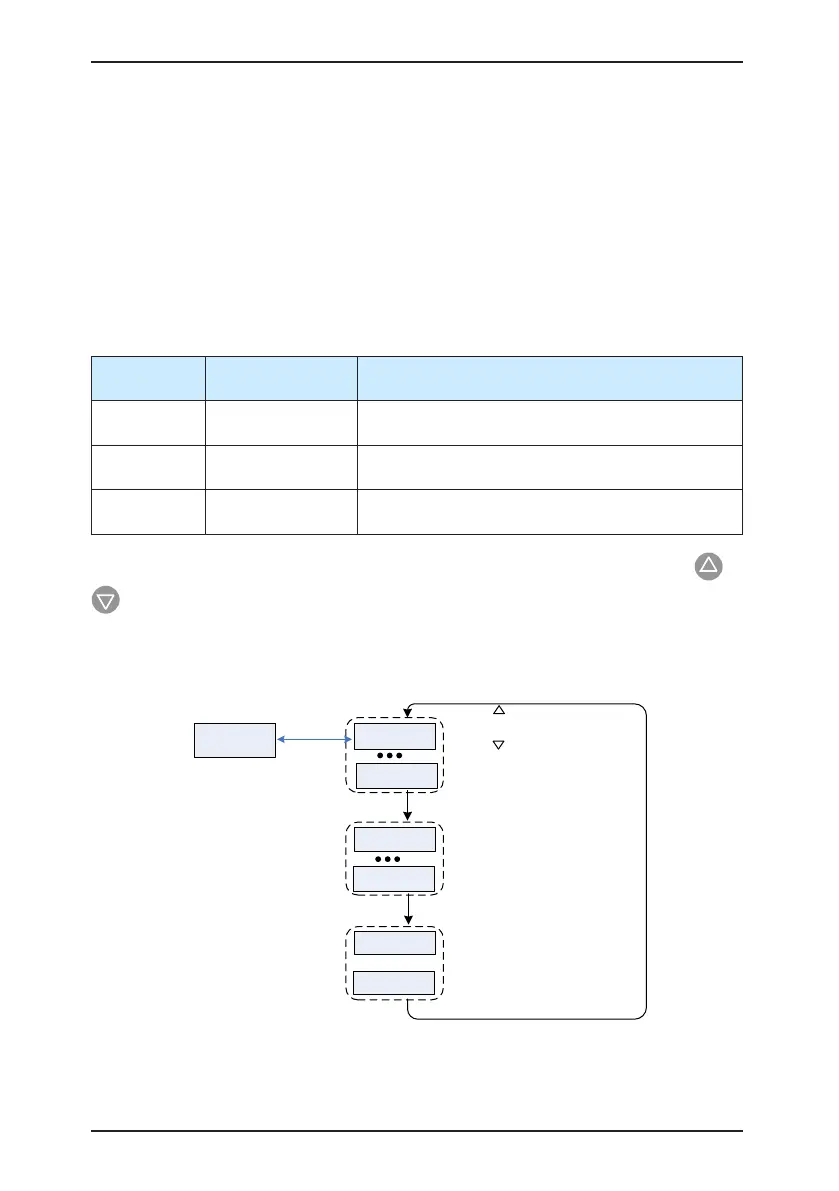

Figure 4-4 Selecting the required function code
F0
Level I menu
50.00
PRG
Shift
A0
AC
U0
FP
U3
When FP-02 = 1x
When FP-02 = x1
Press to display the
function code groups in turn.
When FP-02 = 0x (the value
of ten's digit is 0), group A is
invisible.
When FP-02 = x0 (the value
of unit's digit is 0), group U is
invisible.
Status parameters
(Default display)
(Select the function code group)
Press to display the function
code groups in reversed turn.
