Selection and Dimensions MD380 User Manual
- 280 -
Adaptable AC Drive Model A B C D E F G
Fixed
Hole
Diameter of
the Hole for
Connecting
Copper
Busbar
Reactor
Model
MD380-7T160GH/200GH 160 190 125 161 192 255 195 10 x 15 ø12 DCL-0250
MD380-7T220GH/250GH
160 190 125 161 192 255 195 10 x 15 ø12 DCL-0360
MD380-
7T280G/315G/355G
MD380-
7T400G/450G/500G
190 230 93 128 250 325 200 13 x 18 ø15 DCL-0700

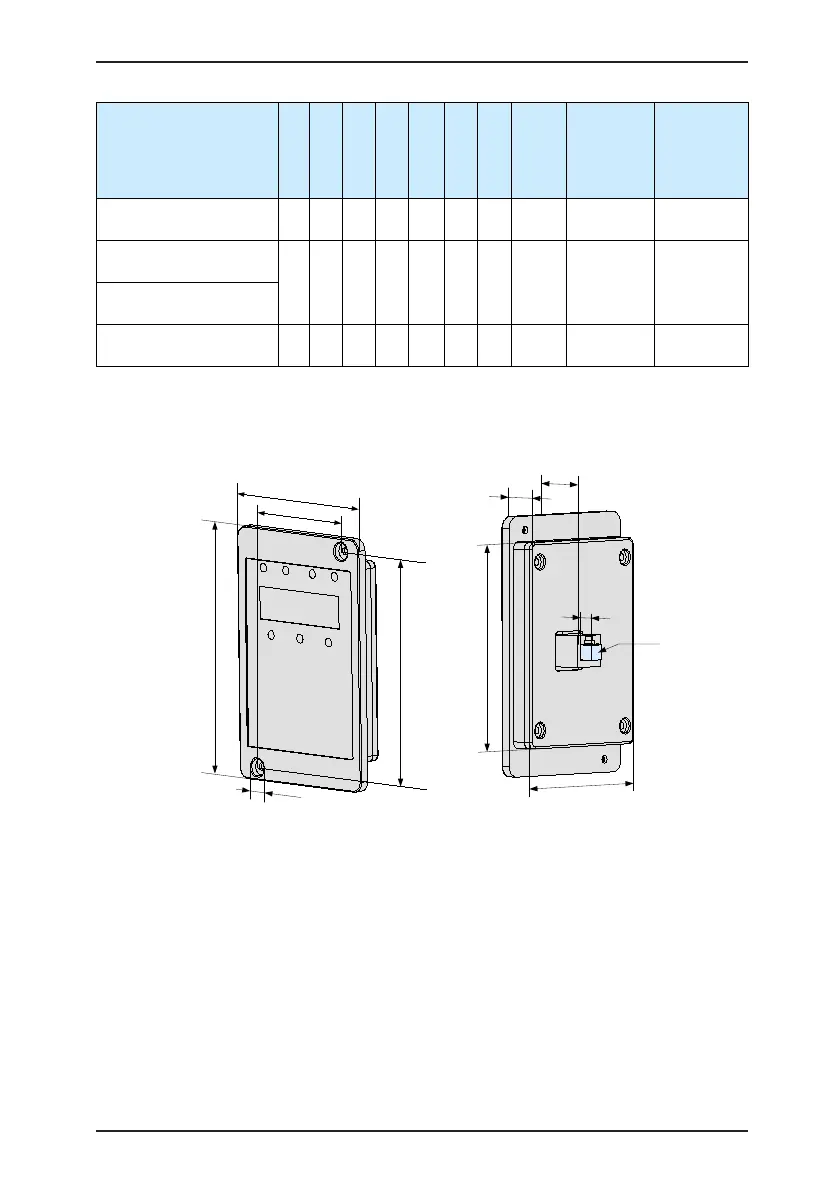

8.6 Physical Dimensions of External Operation Panel
Figure 8-16 Physical dimensions of external operation panel
116.0
76.0
54.0
104.0
Ø3.5
95.0
73
.5
15.0
27.0
10.0
Crystal
head
8.7 Selection of Braking Unit and Braking Resistor
8.7.1 Physical Dimensions of External DC Reactor
The motor and load's regenerative energy is almost completely consumed on the braking
resistor when braking.
According to the formula U x U/R = Pb:
• U refers to the braking voltage at system stable braking.
Different systems select different braking voltages. The 380 VAC system usually selects
700 V braking voltage.
• Pb refers to the braking power.
