22
LBK System| Instruction manual v1.3 SEP 2019 |LBK-System_instructions_en v1.3|© 2018-2019 Inxpect SpA

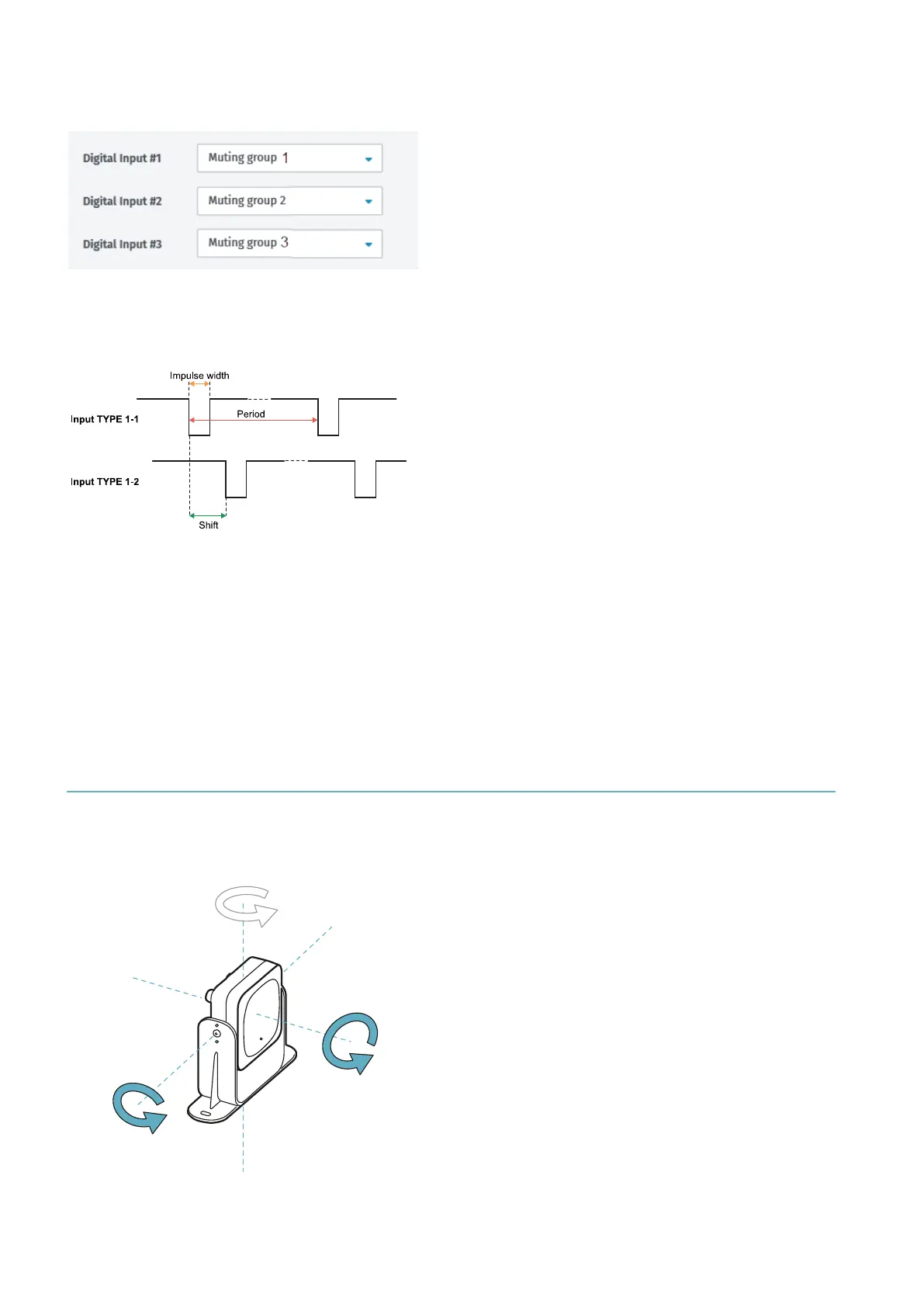

4.5.4 Example of association of digital inputs - groups
4.5.5 Enable muting signal characteristics
The muting function is enabled only if both logic signals of the dedicated input meet certain characteristics.
Below is a graphic representation of the signal characteristics.
In the Inxpect Safety > Settings > Digital Input-Output application it is necessary to set the parameters that
define the characteristics of the signal.
Note: with pulse duration = 0, it is sufficient that the input signals are at high logic level (1) to enable muting.
4.5.6 Muting status
Any auxiliary output dedicated to the muting status is closed if at least one of the groups of sensors is in
muting.
NOTICE: it is the responsibility of the machinery designer to assess whether the indication of the muting status is
necessary (as defined in section 5.2.5 of EN ISO 13849-1:2015 standard).
4.6 Anti-tampering function
4.6.1 Tampering signal
The sensor is equipped with an accelerometer that detects rotation around its longitudinal and transverse
axes.
4. Functioning principles
