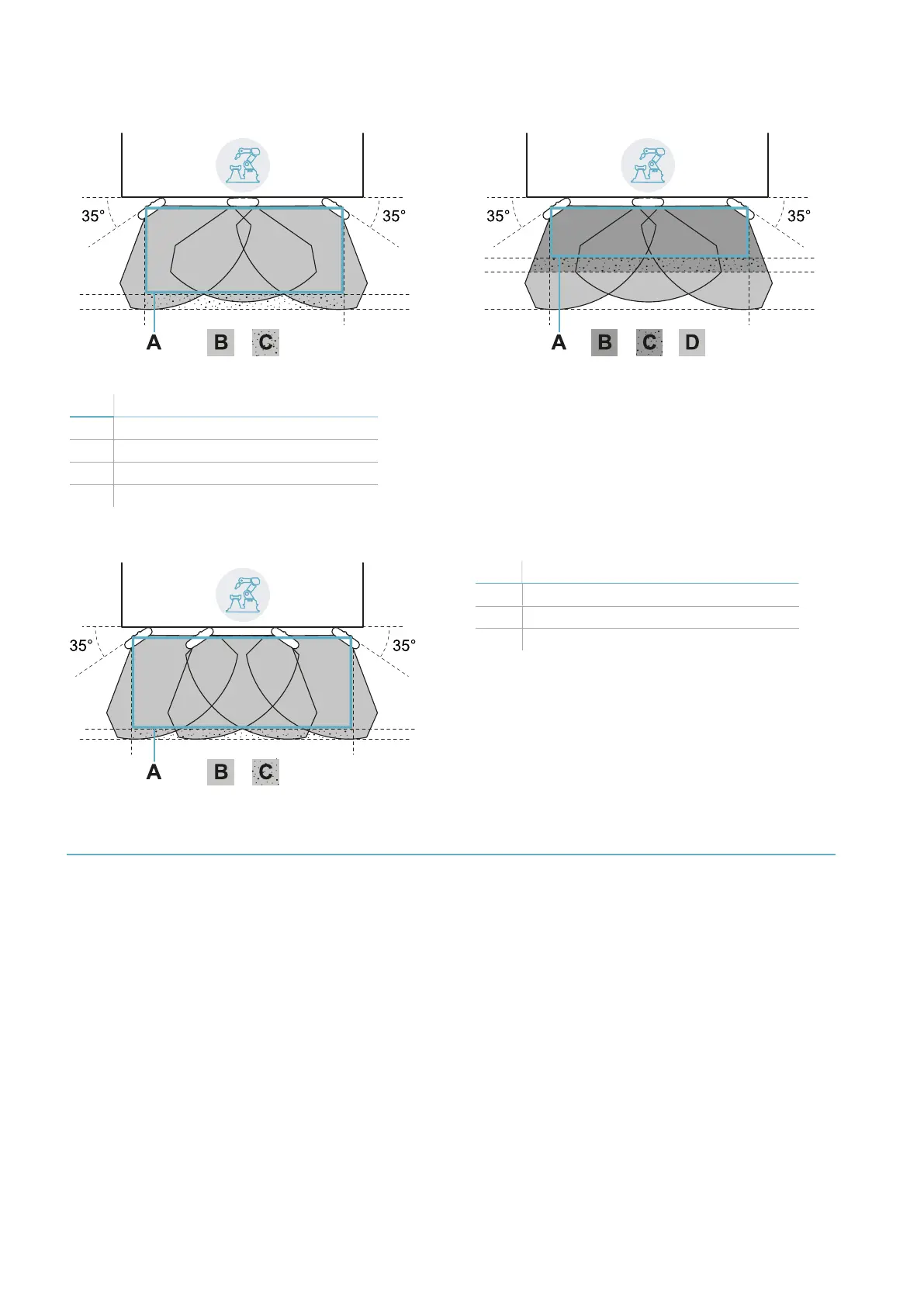

6.2.6 Example of a monitored area with an odd number of sensors
Without pre-alarm area.
With pre-alarm area.
Part Description
A Dangerous area
B Stopping area
C Tolerance area
D Pre-alarm area
6.2.7 Example of a monitored area with an even number of sensors
Part Description
A Dangerous area
B Stopping area
C Tolerance area
6.3 Linear barrier (limited restart prevention)
Note: the following illustrations show, as an example, sensor configurations all with 110° field of vision. Sensor configurations with
all 50° field of vision or mixed configurations are also possible.
