ENGINE MECHANICAL 6A – 93

REASSEMBLY

INTERNAL PARTS

MINOR COMPONENT

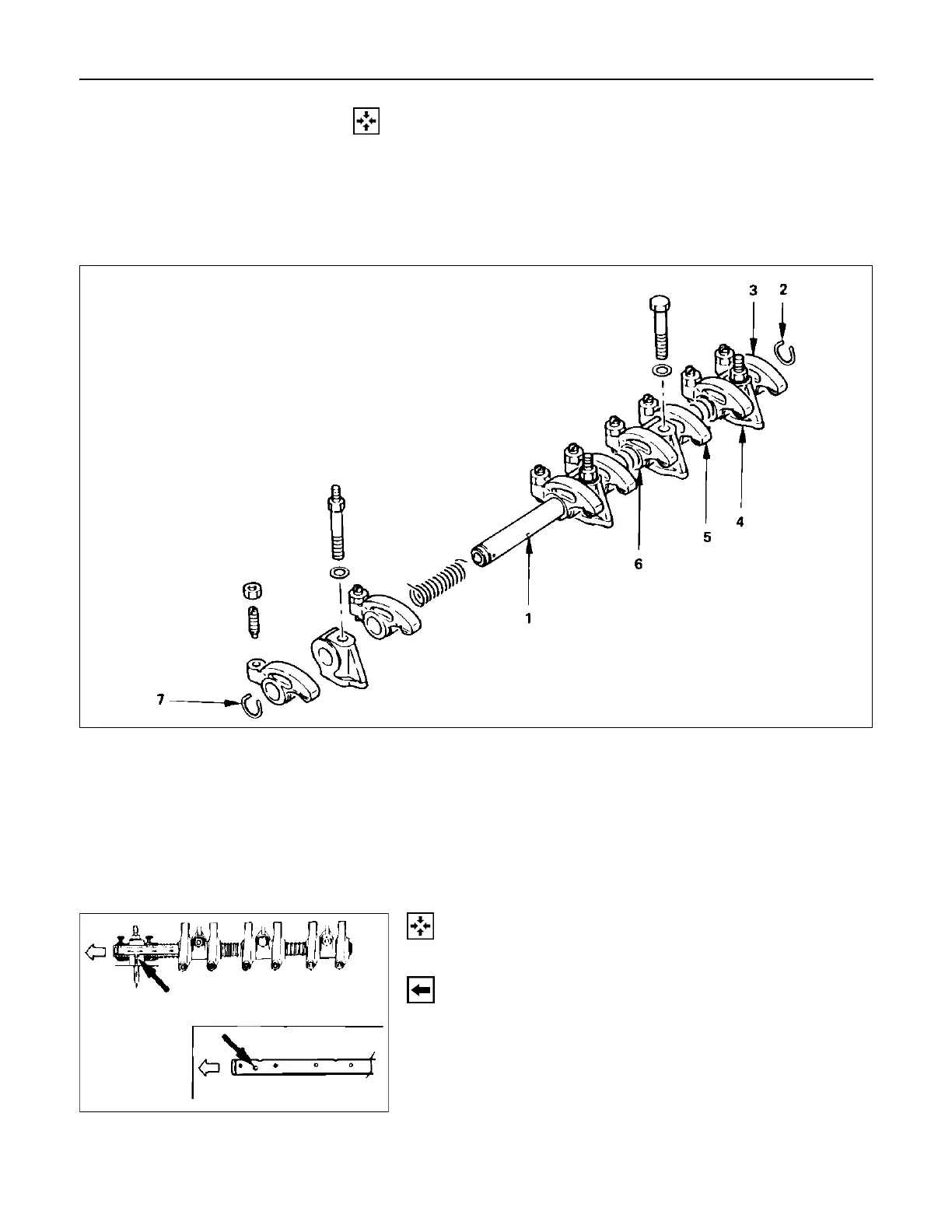

ROCKER ARM SHAFT AND ROCKER ARM

020RY00029

Reassembly Steps

Rocker arm shaft 5.

Rocker arm

Rocker arm shaft snap ring 6.

Rocker arm shaft spring

Rocker arm 7.

Rocker arm shaft snap ring

Rocker arm shaft bracket

Reassembly

1. Rocker Arm Shaft

1. Position the rocker arm shaft with the large oil hole (4

φ) facing the front of the engine.

2. Install the rocker arm shaft together with the rocker

arm, the rocker arm shaft bracket, and the spring.

2. Rocker Arm Shaft Snap Ring

3. Rocker Arm

4. Rocker Arm Shaft Bracket

5. Rocker Arm

6. Rocker Arm Shaft Spring

7. Rocker Arm Shaft Snap Ring

014RY00037
