ENGINE ELECTRICAL 6D – 23
DISASSEMBLY

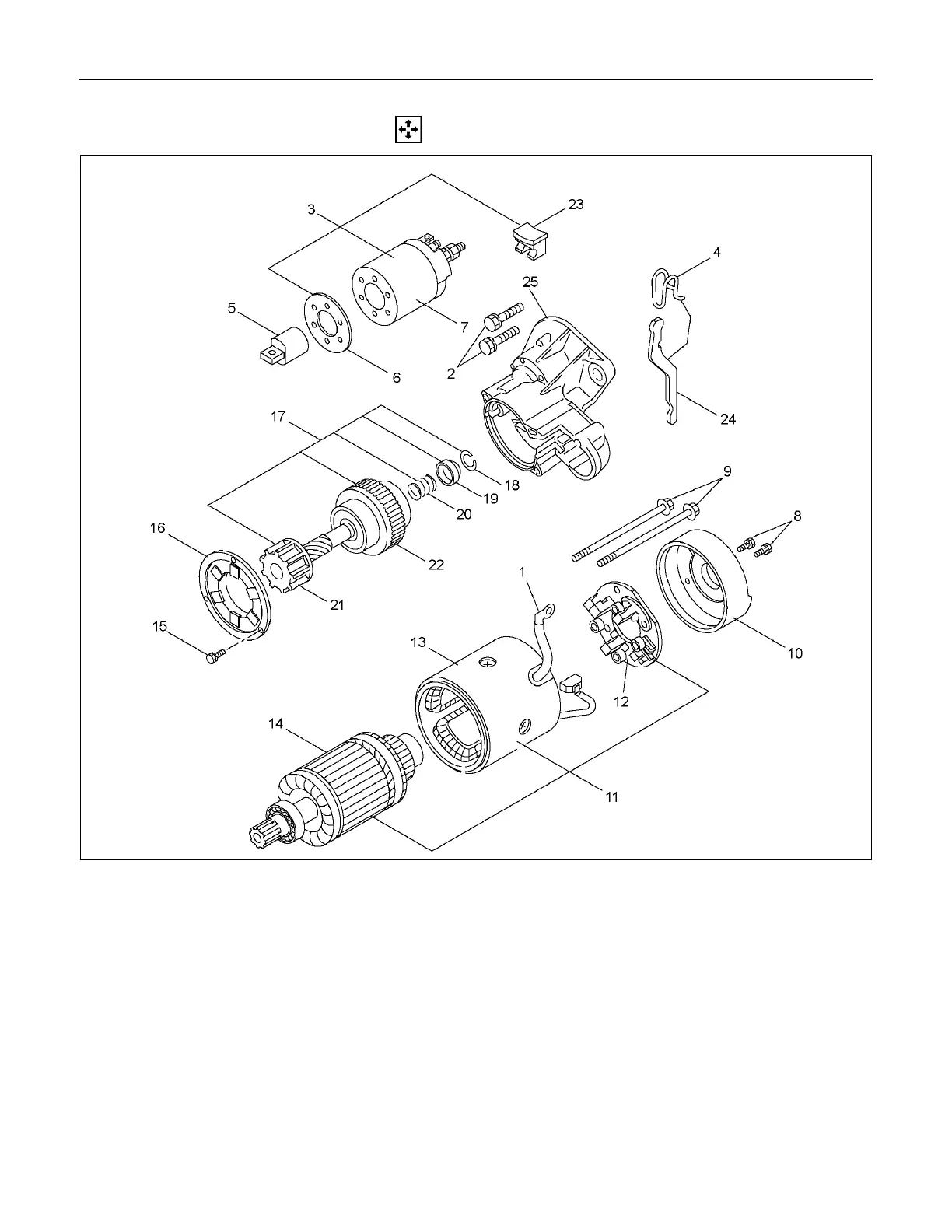

RTW460LF000201
Disassembly Step
1. Lead wire
14. Armature
2. Bolt 15. Bolt
3. Magnetic switch assembly 16. Bearing retainer
4. Torsion spring 17. Pinion assembly
5. Plunger 18. Pinion stopper clip
6. Dust cover 19. Pinion stopper
7. Magnetic switch 20. Return spring
8. Screw 21. Pinion shaft
9. Through bolt 22. Clutch
10. Rear cover 23. Dust cover
11. Motor assembly 24. Shift lever
12. Brush holder 25. Gear case
13. Yoke
