FUEL SYSTEM 6C – 3

GENERAL DESCRIPTION

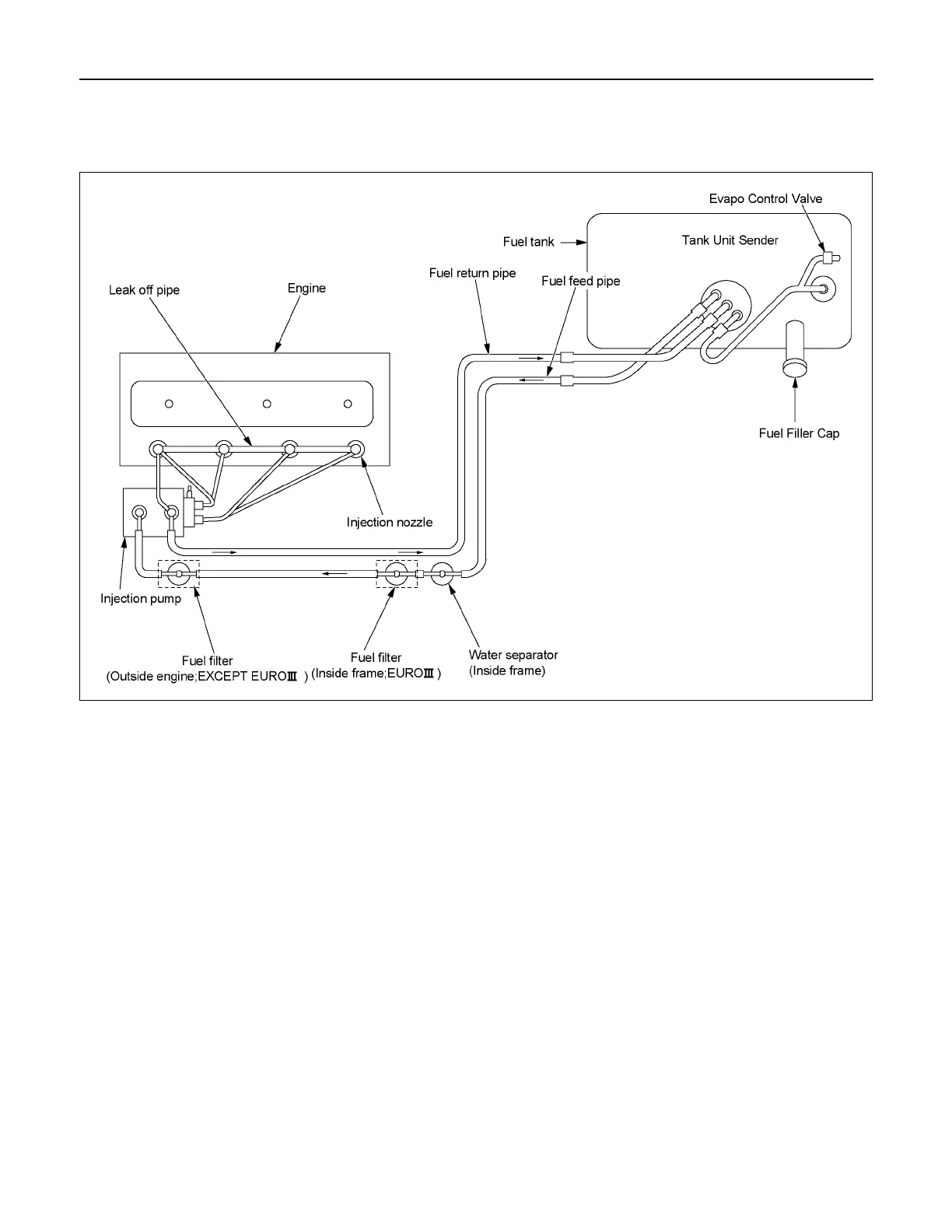

FUEL FLOW

RTW66CMF000101

The fuel system consists of the fuel tank, the fuel filter, the water separator, the injection pump, and the injection

nozzle.

The fuel from the fuel tank passes through the water separator and the fuel filter where water particles and other

foreign material are removed from the fuel.

Fuel, fed by the injection pump plunger, is delivered to the injection nozzle in the measured volume at the optimum

timing for efficient engine operation.

NOTE:

1 If it find abnormal condition on the fuel injector, refer to section 6E ENGINE DRIVEABILITY AND

EMISSIONS.

2 Do not contain "Additive for water drain" with fuel.
