ENGINE MECHANICAL 6A – 43

ENGINE OVERHAUL

REMOVAL

EXTERNAL PARTS

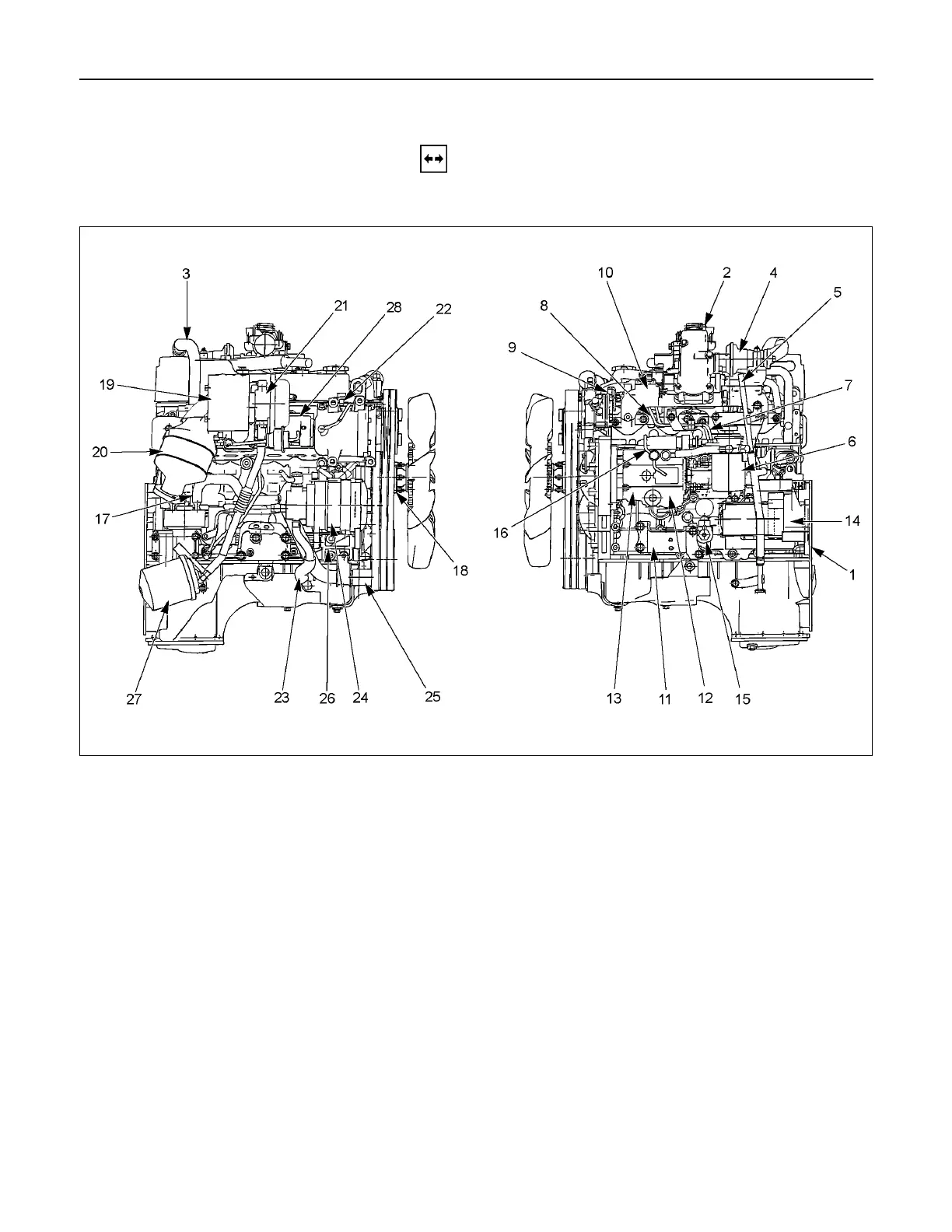

RTW36AMF000401

Removal Steps

1. Clutch Assembly or Flex Plate

2. Intake Pipe and Throttle Body

3-1. EGR Pipe

3-2. EGR cooler (EURO III model only)

4. EGR Valve

5. Oil Level Gauge

6. Fuel Filter Assembly (Except EURO III)

7. Fuel Filter Bracket (Except EURO III)

8. Fuel Injection Pipe with Clip

9. Power Steering Oil Pump Bracket

10. Intake Manifold

11. Engine Mounting Bracket and Foot

12. Injection Pump Cover

13. Injection Pump

14. Starter Motor

15. Oil Pressure Warning Switch

16. Fuel Leak Off Pipe

17. Oil Cooler Water Pipe

18. Cooling Fan Pulley

19. Heat Protector

20. Catalytic Converter

21. Turbocharger

22. Compressor Bracket

23. Vacuum Pump Oil Return Hose

24. Generator and Adjusting Plate

25. Water Inlet Pipe

26. Generator Bracket

27. Oil Cooler with Oil Filter

28. Exhaust Manifold
