6A – 130 ENGINE MECHANICAL
REASSEMBLY

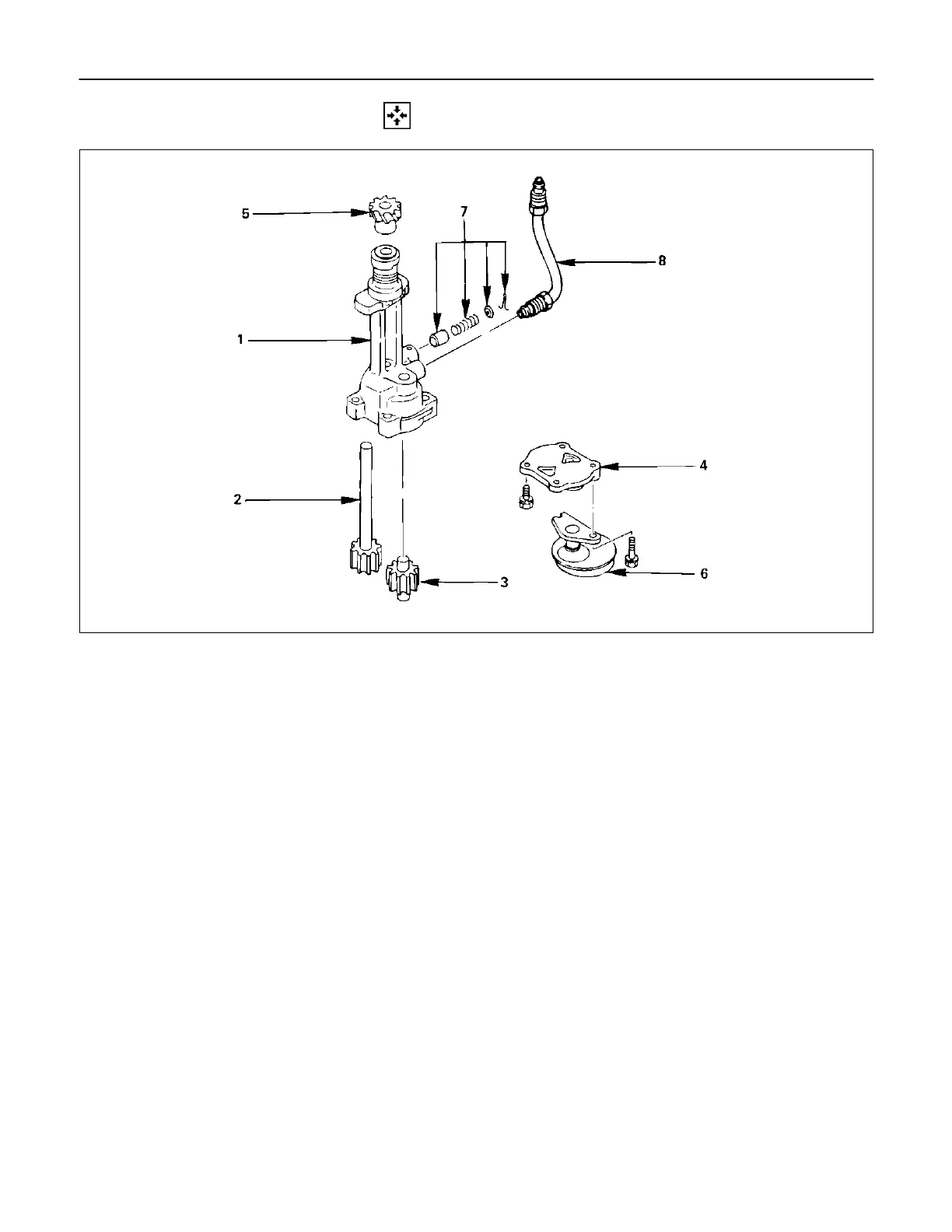

Reassembly Steps
1. Oil pump body 5. Pinion gear
2. Drive gear 6. Strainer
3. Driven gear 7. Relief valve assembly
4. Pump cover 8. Oil pipe
Reassembly procedure is shown in the illustration above numerical order.
Pump cover fixing bolts torque: 16 N·m (1.6 kg·m/12 lb ft)
051R100006
