ENGINE MECHANICAL 6A – 101
MAJOR COMPONENT

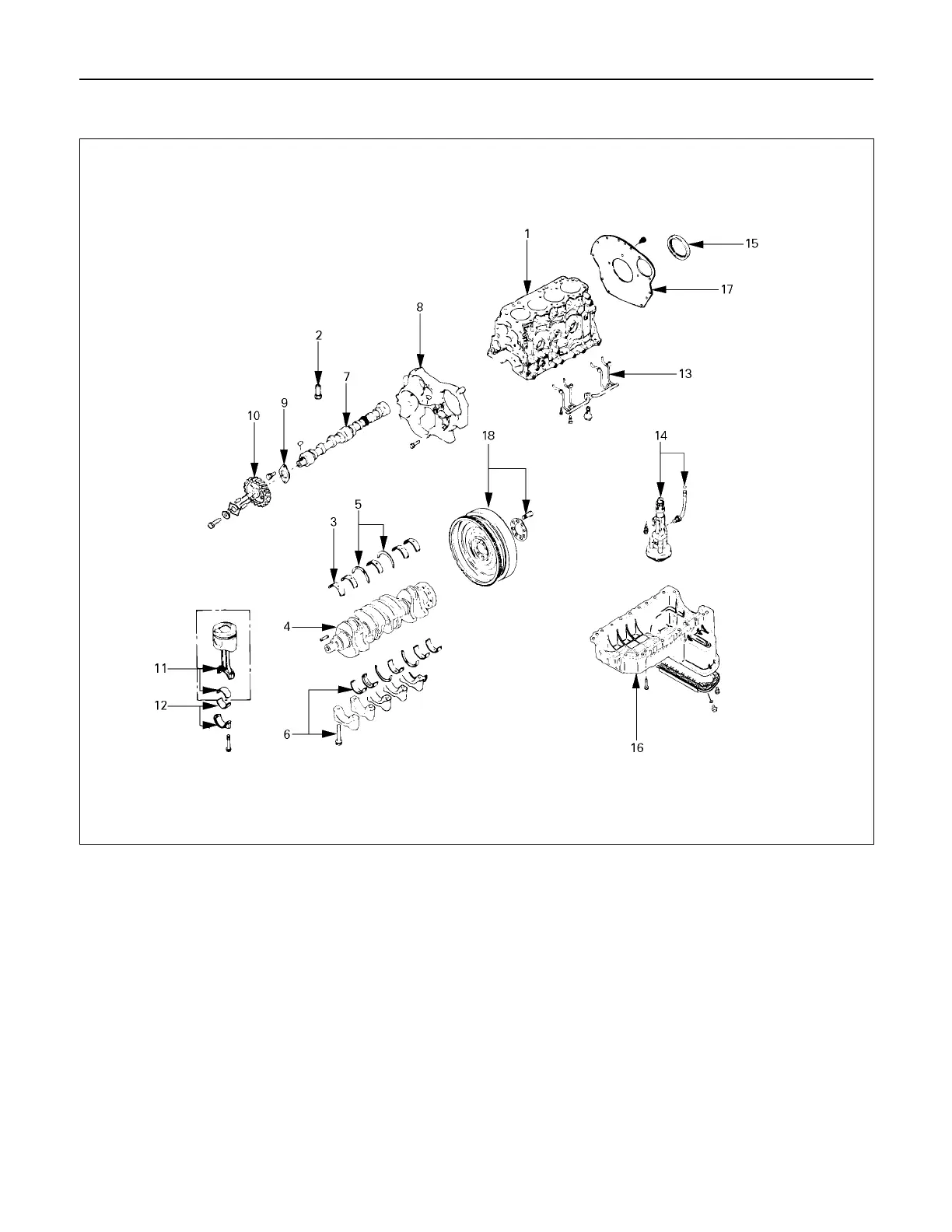

Reassembly Steps-1
1. Cylinder body 10. Camshaft timing gear
2. Tappet 11.
Piston and connecting rod with
upper bearing
3. Crankshaft upper bearing 12.
Connecting rod bearing cap with
lower bearing
4. Crankshaft 13. Piston cooling oil pipe
5. Crankshaft thrust bearing 14. Oil pump with oil pipe
6.
Crankshaft bearing cap with
lower bearing
15. Crankshaft rear oil seal
7. Camshaft 16. Crank case
8. Timing gear case 17. Cylinder body rear plate
9. Camshaft thrust plate 18. Flywheel
014R300004
