6B – 6 ENGINE COOLING
110RS001

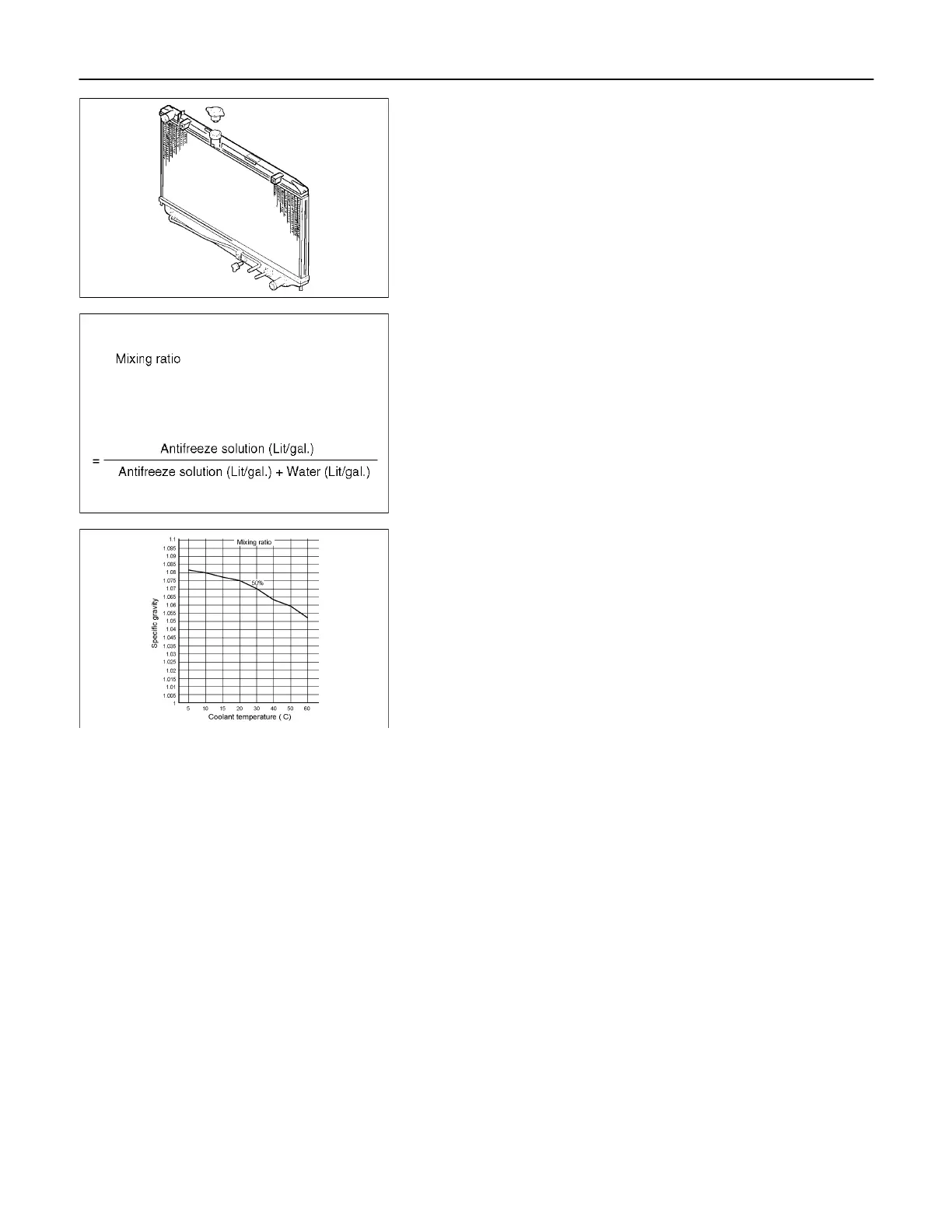

RADIATOR
The radiator is a tube type with corrugated fins. In order to
raise the boiling point of the coolant, the radiator is fitted with a
cap in which the valve is operated at 93.3
∼
122.7 kPa (13.5
∼
17.8 psi) pressure. (No oil cooler provided for M/T)
F06RW005
Antifreeze Solution
NOTE: Antifreeze solution + Water = Total cooling system
capacity.
Total Cooling System Capacity Lit (US / UK gal)
9.4 (2.5/2.1) 4JA1L/TC
M/T 10.1 (2.7/2.2) 4JH1TC
A/T 10.0 (2.6/2.2) 4JH1TC
See section 0B MAINTENACE AND LUBRICATION.
PTW46BSH000201
NOTE:
To maintain the corrosion resistance of the aluminum
radiator, water and antifreeze must be combined in a 1:1
solution (50% antifreeze and 50% water)
To Next Page
