6A – 42 ENGINE MECHANICAL

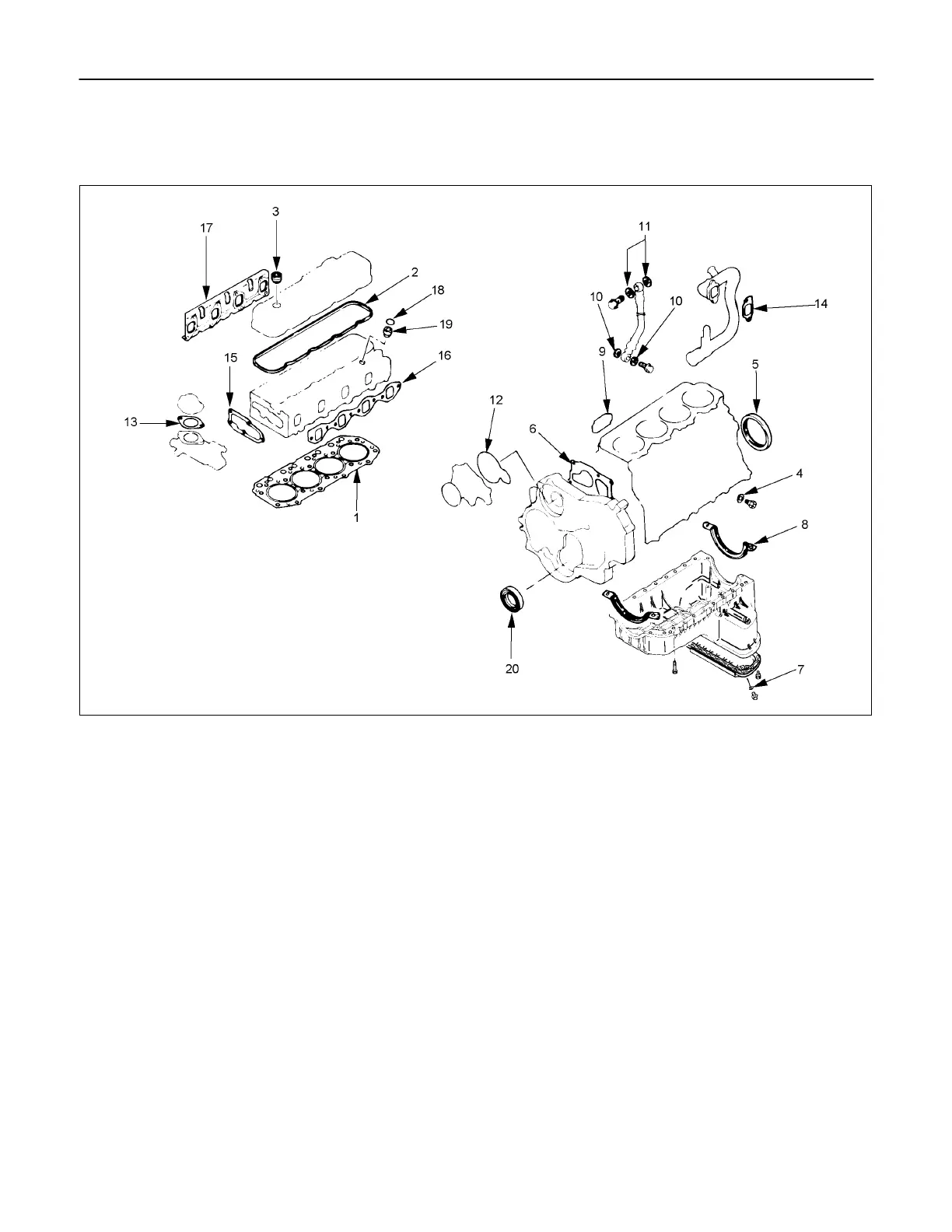

ENGINE REPAIR KIT

RTW36ALF000601

Removal Steps

1. Cylinder head gasket

2. Head cover gasket

3. Head cover cap nut gasket

4. Drain cock gasket

5. Crankshaft rear oil seal

6. Gear case gasket

7. Oil pan drain plug gasket

8. Oil pan gasket

9. Oil filter gasket

10. Joint bolt gasket

11. Vacuum pump gasket

12. Water pump O-ring

13. Water outlet pipe gasket

14. Intake pipe gasket

15. Thermostat housing gasket

16. Intake manifold gasket

17. Exhaust manifold gasket

18. Nozzle holder O-ring

19. Nozzle holder gasket

20. Crankshaft front oil seal

NOTE

Discard all O-rings, gaskets, and seals removed at disassembly and replace them with new ones. Reuse of

these parts will result in oil, water, and gas leakage.
