6C – 8 FUEL SYSTEM
FUEL TANK

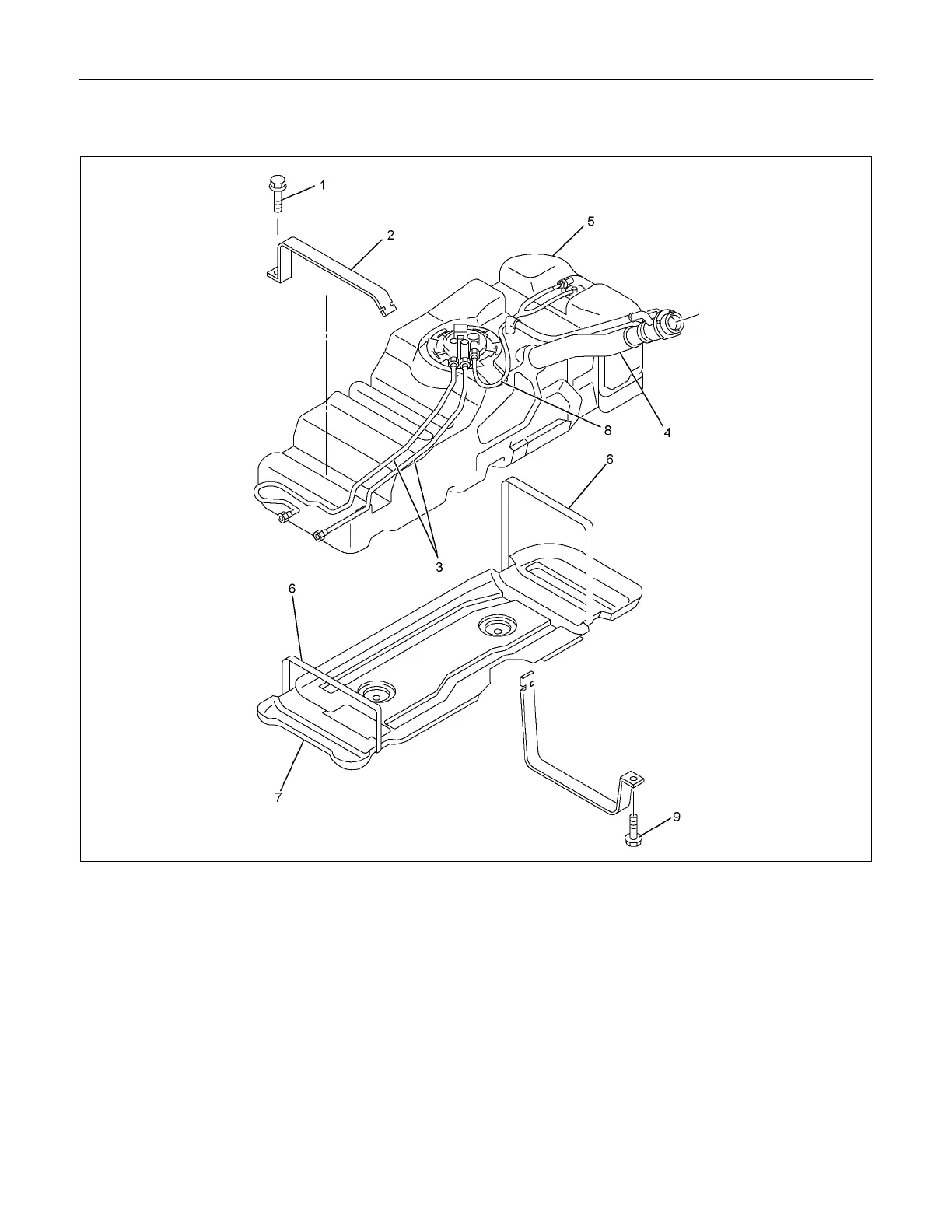

Fuel Tank and Associated Parts
RTW46CLF000801
Legend
1. Bolt; Fuel Tank
2. Fuel Tank Band
3. Fuel Tube/Quick Connector
4. Fuel Filler Hose
5. Fuel Tank
6. Under Shield Band (only specified
model)
7. Under Shield (only specified model)
8. Evapo Pipe (only specified model)
9. Bolt; Fuel Tank

Isuzu 4JH1 Specifications

General

Bore x Stroke	95.4 mm x 104.9 mm
Compression Ratio	18.5:1
Fuel System	Direct injection
Cylinder Configuration	Inline-4
Valves per Cylinder	4
Fuel Type	Diesel
Engine Type	Diesel, four-stroke
Displacement	3.0 liters
Maximum Torque	217 lb-ft (294 Nm) @ 1800 rpm
Oil Capacity	6.5 liters (with filter)
