ENGINE ELECTRICAL 6D – 9

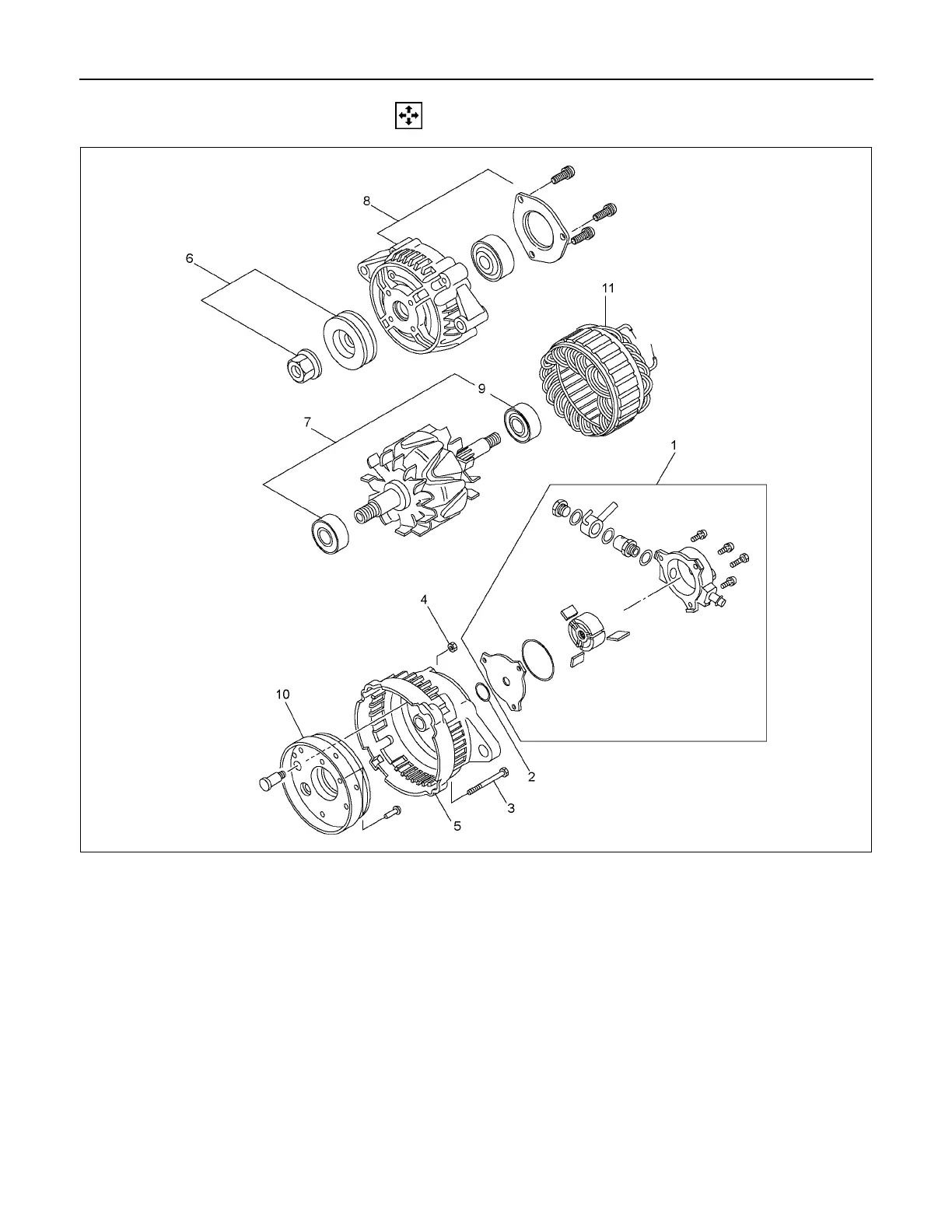

DISASSEMBLY
RTW46DLF000401
Disassembly Step
1.
Vacuum pump
2.
O-ring
3.
Through bolt
4.
B Terminal nut
5.
Rear cover
6.
Pulley
7.
Rotor assembly
8.
Front cover assembly
9.
Rear rotor bearing
10.
Rectifier assembly
11.
Stator assembly
12.
Rotor assembly
