6A – 94 ENGINE MECHANICAL

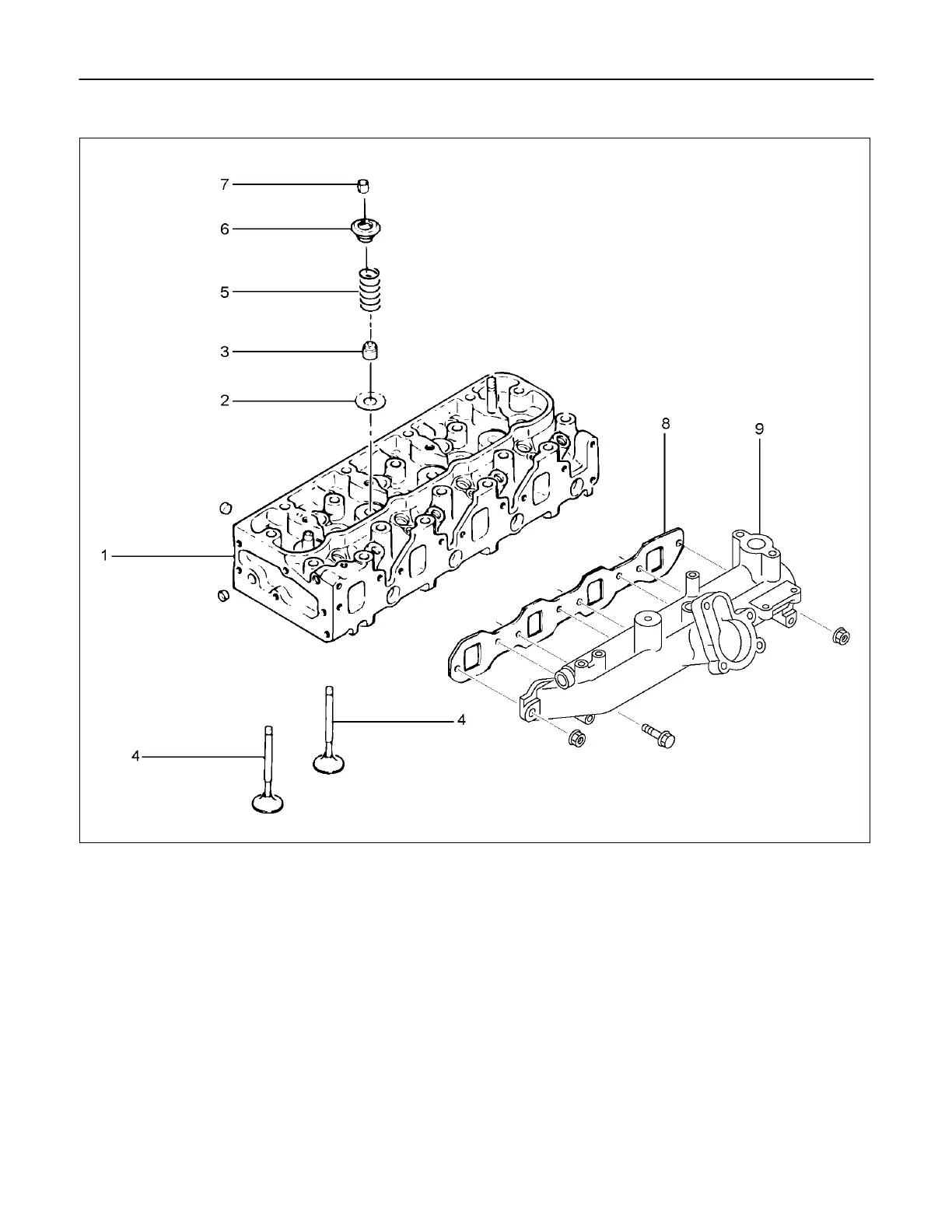

CYLINDER HEAD
RTW46ALF001301
Reassembly Steps
1.
Cylinder head 6.
Valve spring upper seat
2.
Valve spring lower seat 7.
Split collar
3.
Valve stem oil seal 8.
Intake manifold gasket
4. Intake and exhaust valve 9. Intake manifold
5.
Valve spring
