14 - 2

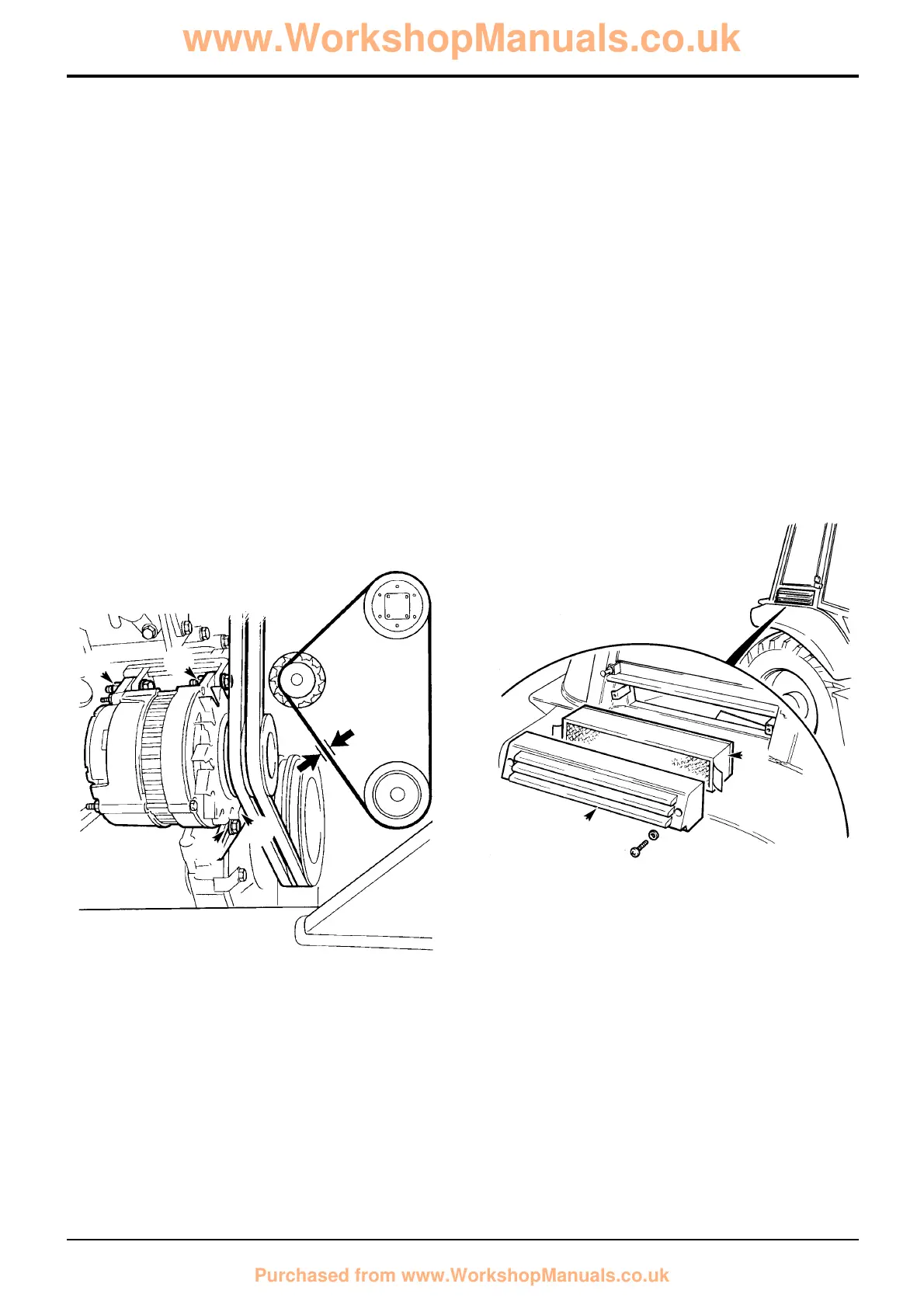

Adjusting the Fan Belt
! WARNING
Make sure the engine cannot be started. Disconnect the
battery before doing this job.
2-3-3-5
1 Park the machine on firm level ground, engage the
parking brake and set the transmission to neutral. Raise
and block the loader arms. Lower the backhoe to the
ground and stop the engine.
2 Loosen pivot fastening bolts A and B. Loosen
adjustment link fastening bolts C and D.
3 Position the alternator so that there is 10 mm (3/8 in)
slack at point X.
4 Tighten bolts C and D, then bolts A and B.
Note: If a new belt is fitted, the belt tension must be
checked again after the first 20 hours of operation.
Cleaning the Cab Heater Filter
1 Park the machine on firm level ground, engage the
parking brake and set the transmission to neutral.
Lower the attachments to the ground and stop the
engine.
2 Remove the cover retaining screws (2 off) and then
remove the cover, item E.
3 Knock loose dust off the filter F. Carefully blow
compressed air through all the folds of the filter, blow in
the opposite direction to the arrows marked on the
filter.
Note: The compressed air must be set at a pressure no
greater than 7 bar (100 lb/in
2
).
4 Refit the cover E and secure with the retaining screws
(2 off).
Section 3 Routine Maintenance
9803/3280
Section 3
14 - 2
Issue 1
Engine Cooling System
S209411
S254720
A
B
D
C
E
F
X
