Steering
9803/3280 Issue 1
Steer Unit Operation
- 4 Wheel Steer Machines
Crab Steer Mode
- Right Turn
The illustration shows the flow through the steering
unit in a right hand turn condition. The operation is
identical to that described for the 4 wheel steer
mode, except the steer mode control valve X
directs the pressurised oil from the front power
track rod ram 40 to the other side of the rear power
track rod ram 41, hence turning the rear wheels in
the same direction as the front wheels, causing the
machine to crab to the right.
Component Key:
A Inner Spool
B Outer Spool
D Stator
LS Load Sensing Port
X Steer Mode Control Valve
40 Front Power Track Rod Ram
41 Rear Power Track Rod Ram
43B Relief Valve
43C Non-Return Valve

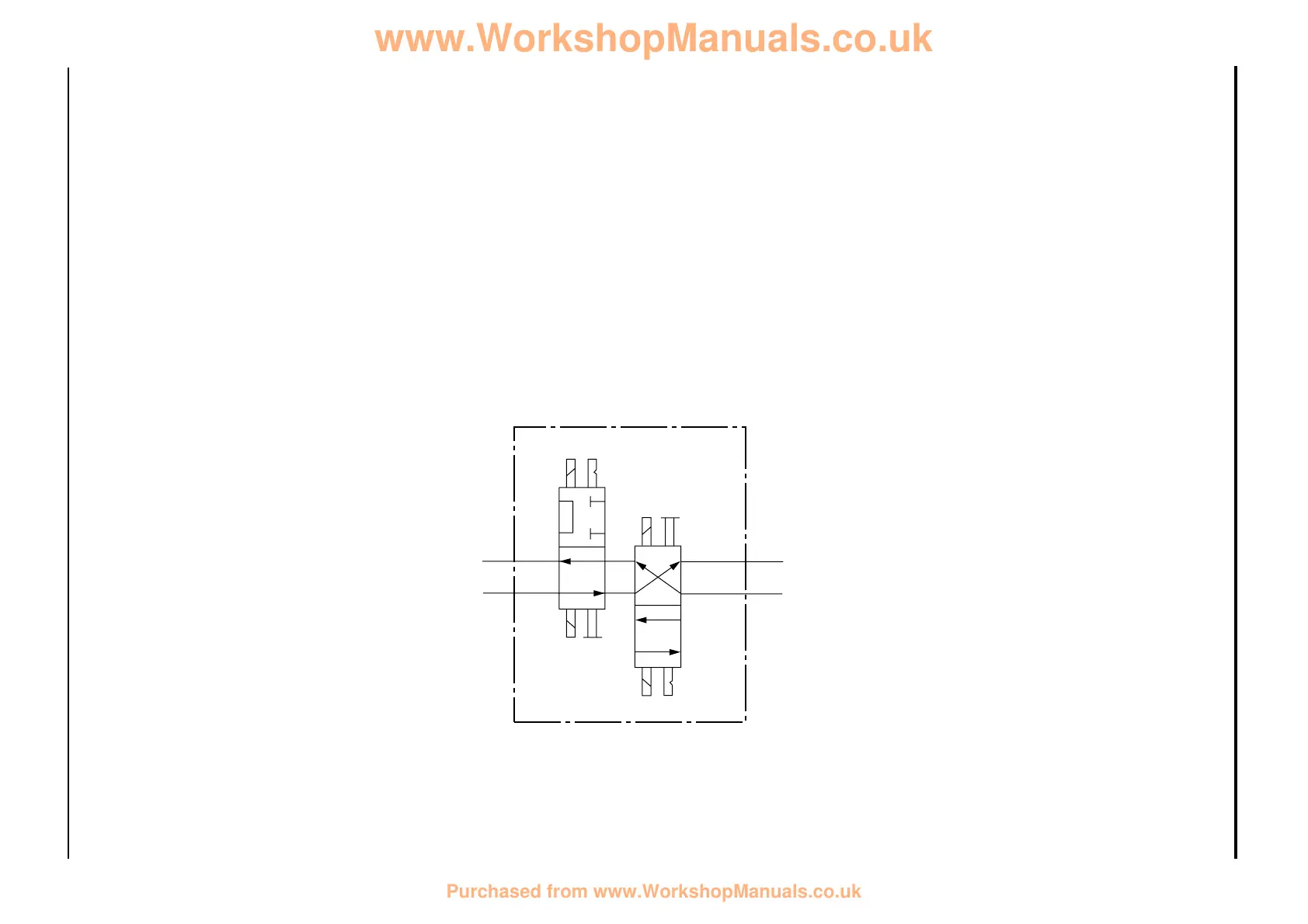

In crab steer mode the spools of the steer mode
control valve X are configured as shown.
4 - 14 4 - 14
Circuit Descriptions
Section H Section H
