jcb 3CX Service Manual

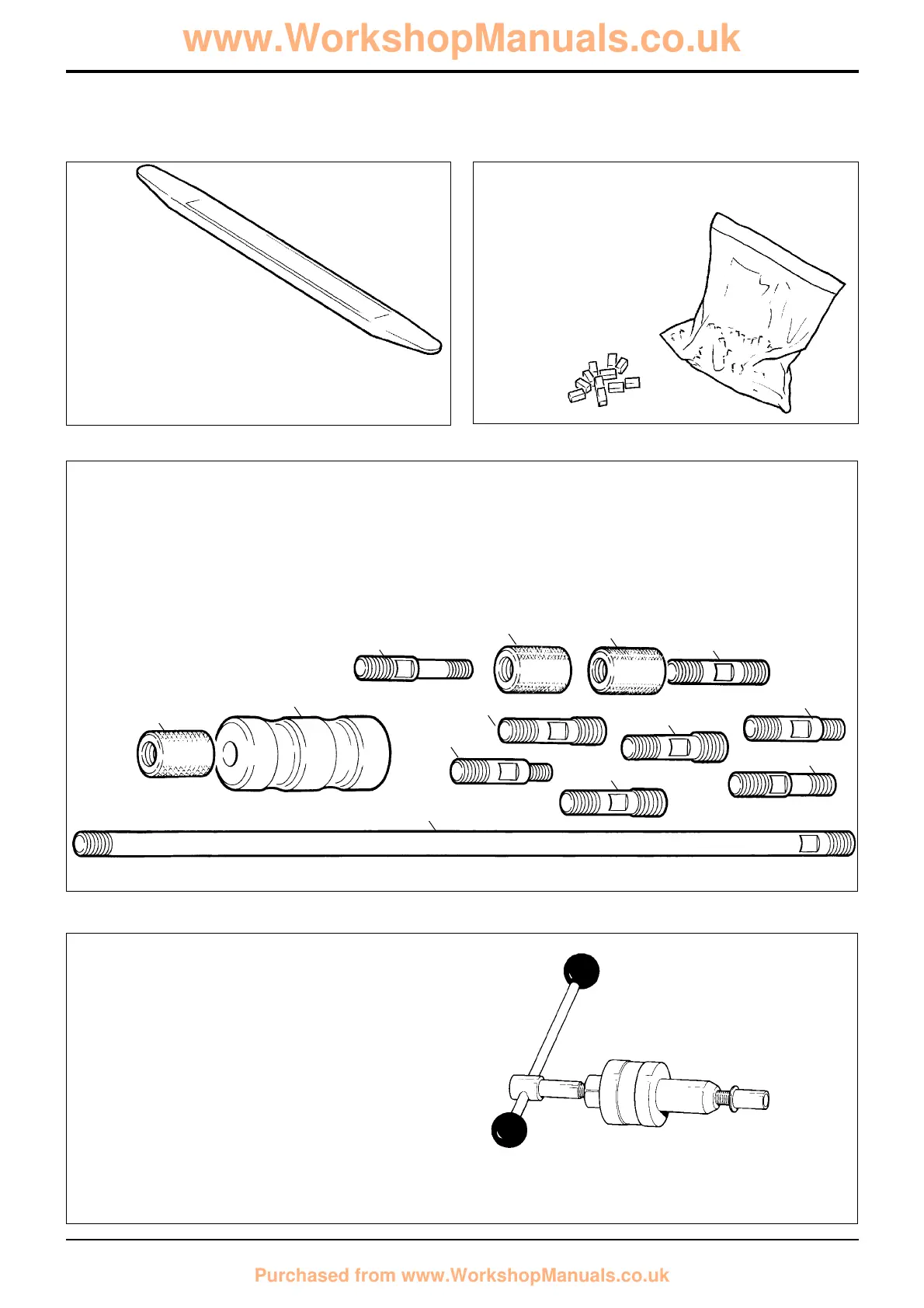

Slide Hammer Kit - 993/68100
1 :993/68101 Slide Hammer 6 :993/68106 Adaptor - M20 x M24
2 :993/68102 End Stops 7 :993/68107 Bar - M20 x M20 X 800MM
3 :993/68103 Adaptor - M20 x 5/8" UNF 8 :993/68108 Adaptor - M20 x 7/8" UNF
4 :993/68104 Adaptor - M20 x 1" UNF 9 :993/68109 Adaptor - M20 x M12
5 :993/68105 Adaptor - M20 x M20 10 :993/68110 Adaptor - M20 x 5/8" UNF (Shoulder)
11 :993/68111 Adaptor - M20 x 1/2" UNF
S196910
1
2
2
2
3
5
7
8
6
4
9
11
10
1 - 3
Section B Body & Framework
9803/3280
Section B
1 - 3
Issue 1
Service Tools
Nylon Spatula -
general tool used for
smoothing sealants - also
used to re-install glass in rubber
glazing because metal tools will chip
the glass edge.
JCB part number - 892/00847
S186470
Rubber Spacer Blocks - used to provide the correct
set clearance between glass edge
and cab frame.
JCB part number - 926/15500
(unit quantity = 500 off)
S186550
826/01099 M6 x 16mm Rivet Nut
826/01101 M6 x 19mm Rivet Nut
826/01103 M8 x 18mm Rivet Nut
826/01102 M8 x 21mm Rivet Nut
826/01104 M10 x 23mm Rivet Nut
826/01105 M10 x 26mm Rivet Nut
Installation Tool Available from:
Bollhoff Fastenings Ltd.
Midacre
The Willenhall Estate
Rose Hill
Willenhall
West Midlands, WV13 2JW
S261210
