2) To replace, simply slide the
deployable stand back into the
machine base until the release button
provides positive location.

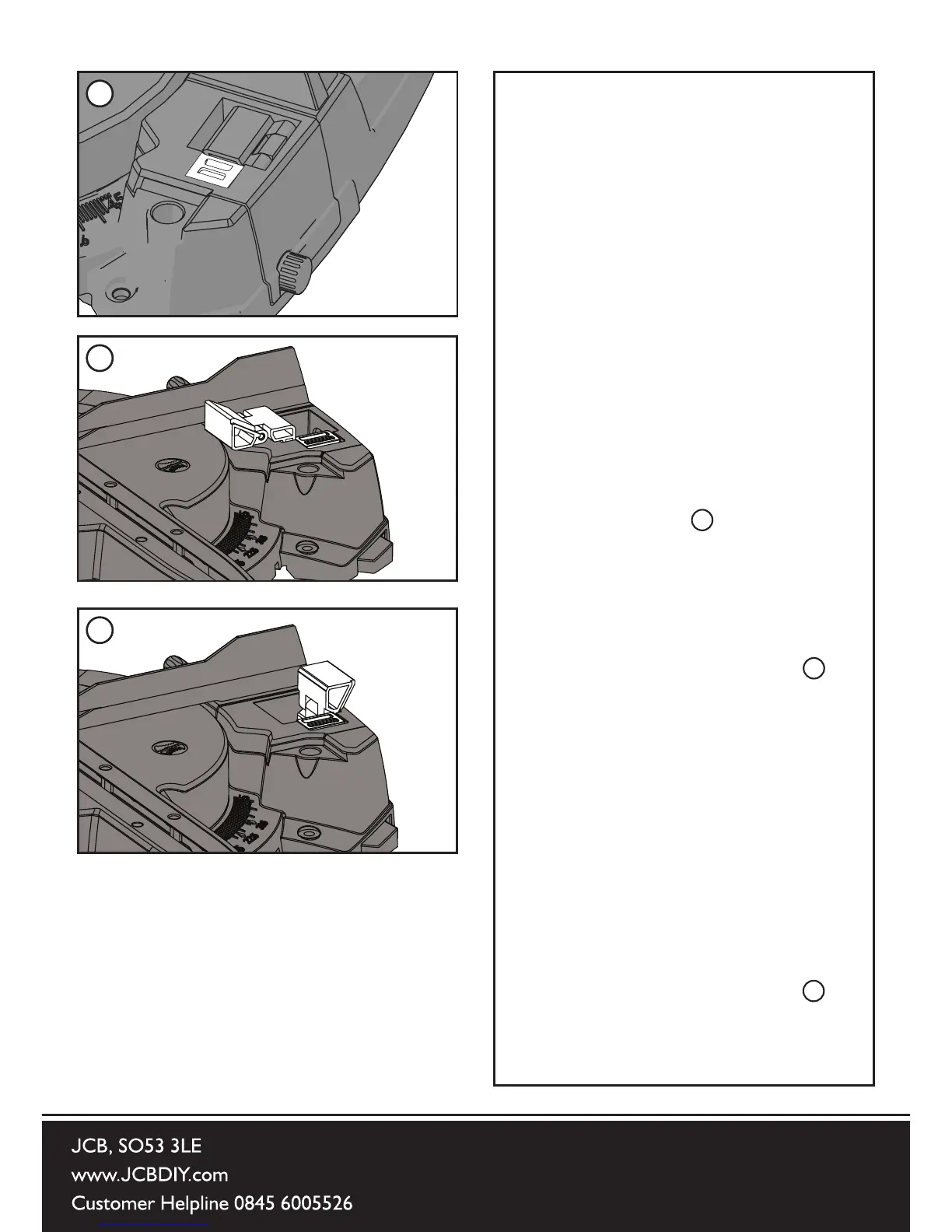

7. ADJUSTABLE STOP PLATE
A stop plate designed for use during
repetitive cutting is incorporated
into the Extension Arm on the Right
Hand side of the machine base. The
stop plate can be deployed in two
positions, inboard and outboard.
To deploy the stop inboard:
1) Slide the spring-loaded release
lock forwards. (See )
2) Pull the stop from its stored
position upwards and to the left.
The stop will deploy to the inboard
position.
3) Slide the release lock backwards to
lock the stop into position. (See )
4) To stow away, reverse the above
steps.
To deploy the stop outboard:
1) Slide the spring-loaded release
lock forwards.,
2) Pull the stop from its stored
position upwards and to the right.
The stop will deploy to the outboard
position.
3) Slide the release lock backwards to
lock the stop into position. (See )
4) To stow away, reverse the above
steps.
7
8
9
8
9
