ELEFLP M – ELEVATOR-TO-FLAP MIXING
A29
The XP9303 features a built-in mixer for Elevator-to-
Flap. The mixer causes the Flaps (or Flaperons) to move
when the Elevator is moved, resulting in tighter looping
maneuvers, or to provide some Aileron reflex for some 3D
maneuvers such as Harriers. Typically, the flaps are set
to travel downward with up Elevator and to travel upward
with down Elevator. The direction that the flaps travel
with Elevator input can be changed by using positive and
negative values.
If Elevator-to-Flap mixing is desired for the aircraft,
perform the steps below.

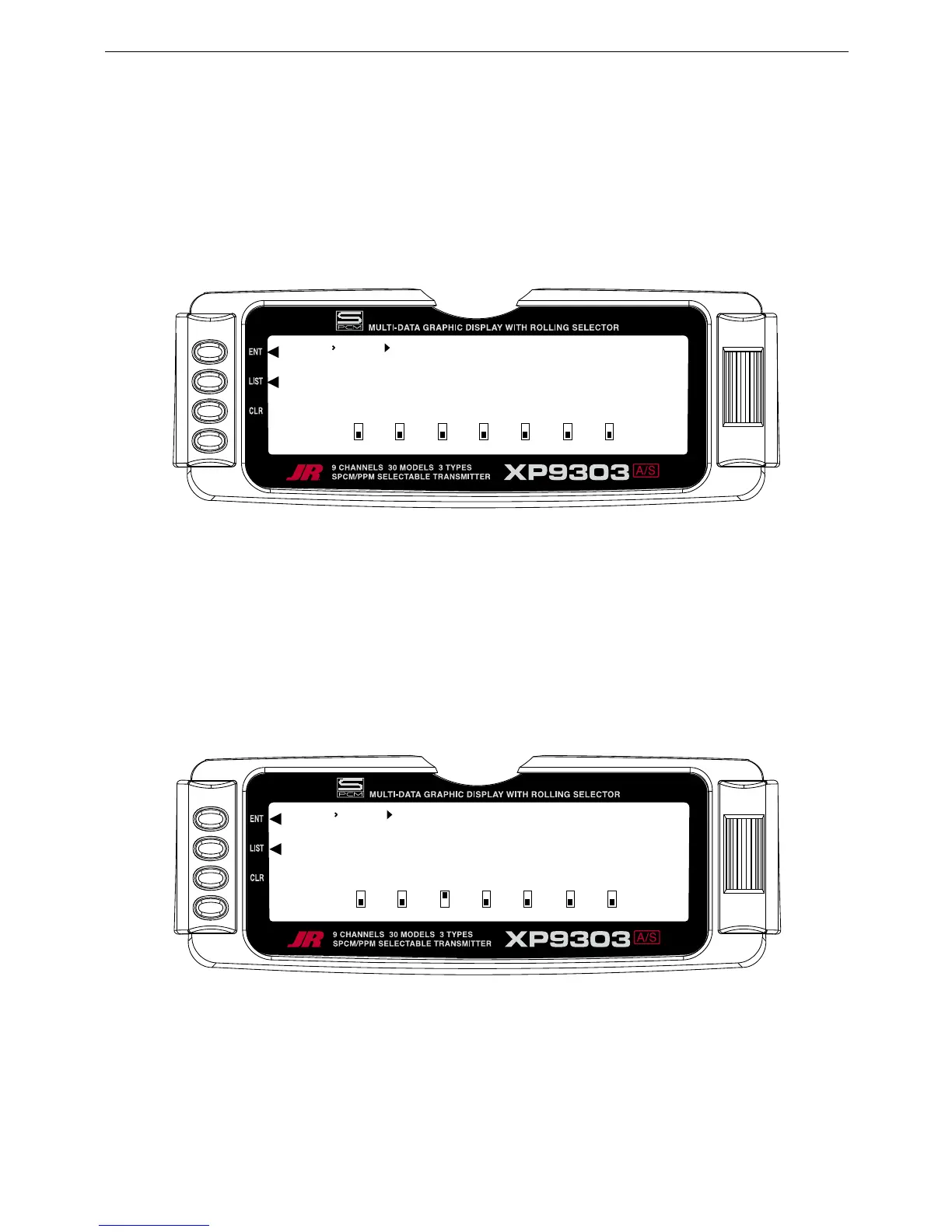

1. Highlight and select ELEFLP M in the FUNC.LIST
to obtain the Elevator-to-Flap mix display.
2. There are 2 sets of mixing values available – Pos0 or
Pos1. If the Pos0 values are left at 0% then the mixer
may be turned on and off – Pos0 will be OFF and Pos1
will be ON (this can be reversed by leaving the Pos1
values at zero and putting values in Pos0). Highlight
and select DN next to Pos1 and set the value to give
the desired amount of Flap travel in the Down direction
when full Up Elevator is applied.
3. Highlight and select UP next to Pos1 and set the value
to give the desired amount of Flap travel in the UP
direction when full Down Elevator is applied.
4. Scroll down to the bottom line of the display to select
the Flight Mode(s) and/or switch(es) that is to be used
to turn the mixer on and off. The throttle may also
be used to turn the mixer on and off by highlighting
and selecting THRO STK and setting the percentage
of throttle to the point where the mixer is to switch
between on and off.
Note: Pos1 always has priority over Pos0. In other
words, if multiple switches are selected to turn the
mixer on and off and one of the switches is in its
Pos1 position, then all other switches are ignored
and the Pos1 values are in effect.
