JUKI DNU-1541 Engineer's Manual

−8 −
Standard Adjustment

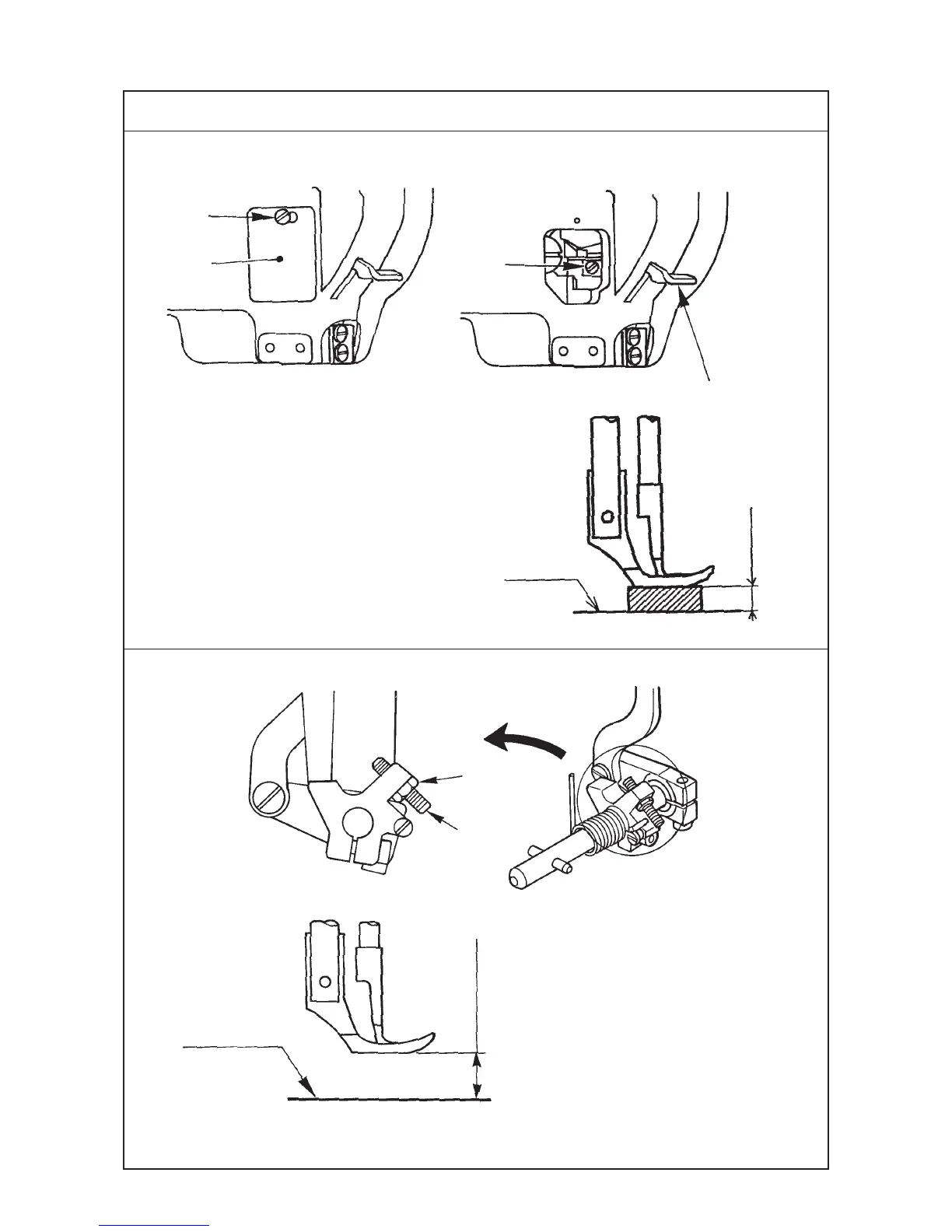

(7) Lift of the presser foot
1) Hand lifter
2) Knee lifter
1
2
3
1
2
9±0.3 mm
16±0.5 mm
Hand lifter
Top surface of
throat plate
Condition
• State that the hand lifter is raised
Top surface of
throat plate
Condition
• Lifting amount when the stopper screw
of knee lifter spring hook comes in
contact with the machine bed
* In case of the machine provided with the auto-lifter, refer to the item “4. (2) Auto-lifter”.

JUKI DNU-1541 Specifications

General

Machine Type	Industrial Sewing Machine
Max Stitch Length	9mm
Needle Bar Stroke	36.5mm
Presser Foot Lift	16mm (by knee), 9mm (by hand)
Needle	DP×17 (#14) #11-#18
Lubrication	Automatic
Weight	34kg (head only)
Stitch Type	Lockstitch
Stitch Length	9mm
Max Sewing Speed	2, 500 stitches per minute
Type	Lockstitch
Application	Heavy-Weight Materials
Maximum Sewing Speed	2, 500 stitches per minute
Bobbin	Large bobbin
Motor	Servo Motor (optional)
Hook Type	Horizontal-axis full-rotary double-capacity hook
