JUKI DNU-1541 Engineer's Manual

−14 −
Standard Adjustment

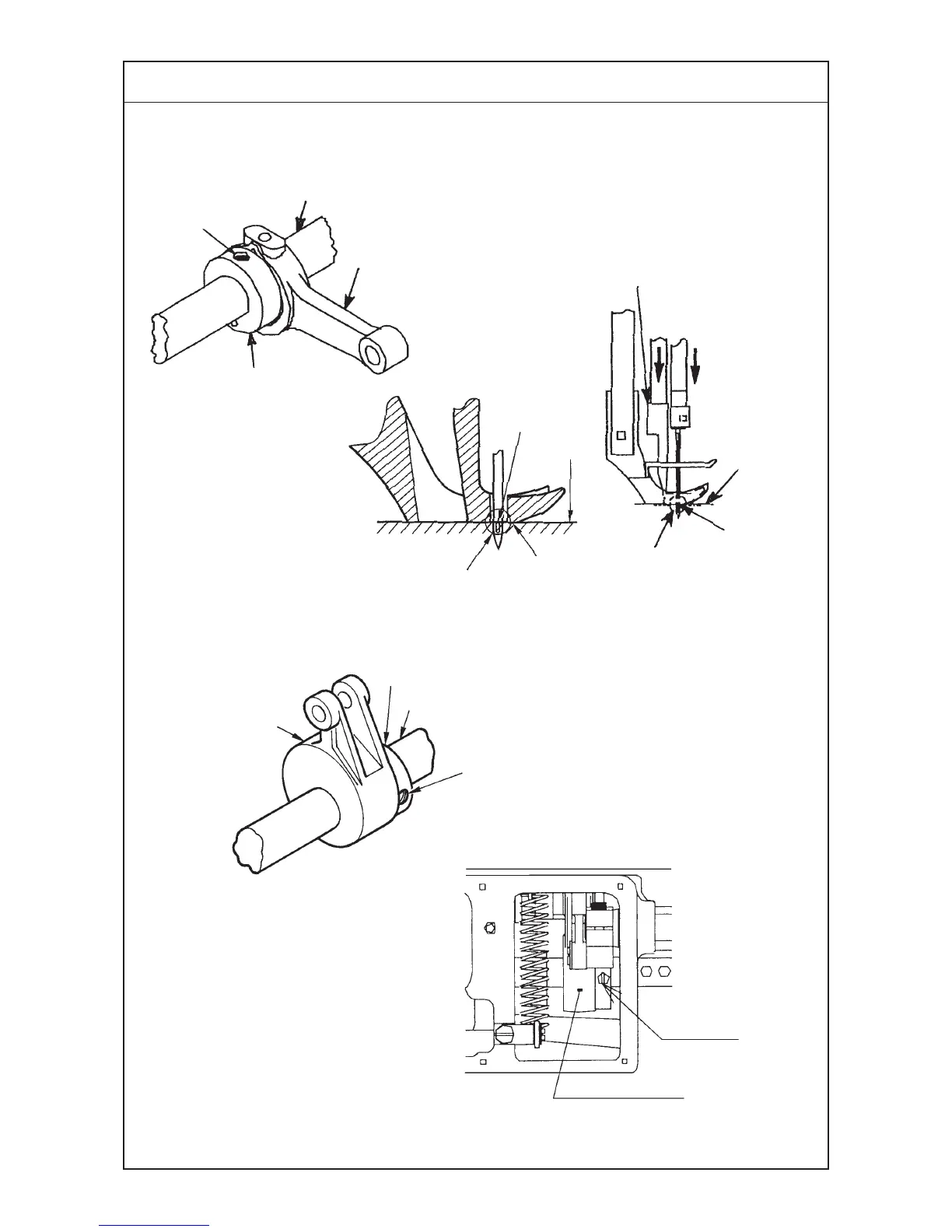

2) Top feed cam timing
™In case of DNU-1541 and DNU-1541S
™In case of DNU-1541-7
1
2
3
4
5
1
5
Main shaft
Top feed cam rod
To align
Conditions
• Feed amount : 6 mm
• When needle and walking foot are lowered.
Main shaft
Top feed cam rod
Screw No. 2
Top feed cam rod
2
3
4
To align

JUKI DNU-1541 Specifications

General

Machine Type	Industrial Sewing Machine
Max Stitch Length	9mm
Needle Bar Stroke	36.5mm
Presser Foot Lift	16mm (by knee), 9mm (by hand)
Needle	DP×17 (#14) #11-#18
Lubrication	Automatic
Weight	34kg (head only)
Stitch Type	Lockstitch
Stitch Length	9mm
Max Sewing Speed	2, 500 stitches per minute
Type	Lockstitch
Application	Heavy-Weight Materials
Maximum Sewing Speed	2, 500 stitches per minute
Bobbin	Large bobbin
Motor	Servo Motor (optional)
Hook Type	Horizontal-axis full-rotary double-capacity hook
