JUKI DNU-1541 Engineer's Manual

−4 −

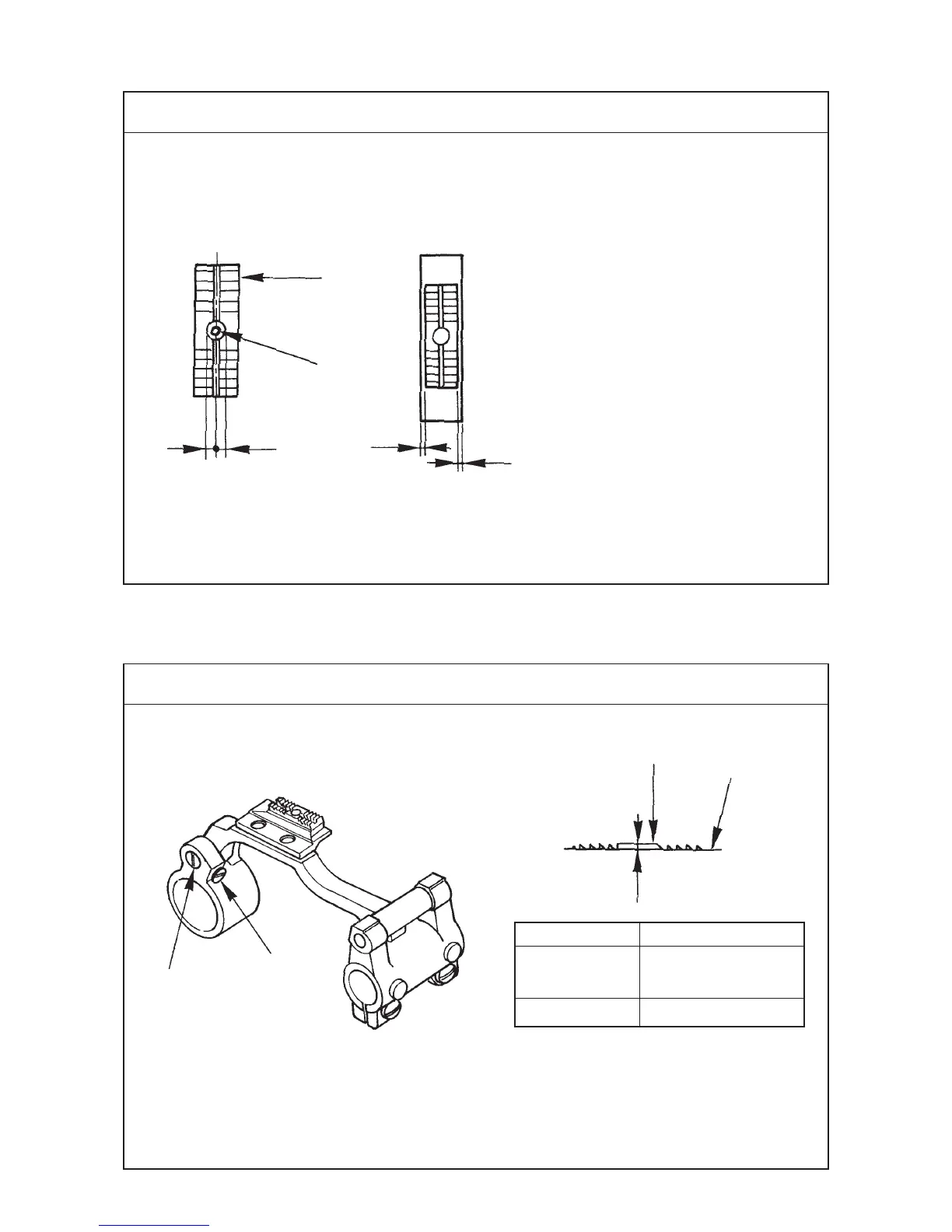

Standard Adjustment
Standard Adjustment
(4) Height of the feed dog
(3) Lateral position of the feed dog
1
2
1
2
3
4
a
a’
A
B
A
Conditions
• Needle bar at lowest dead point
• Feed amount : 0 mm
Adjust the position to almost A = B.
Conditions
• Feed amount : 0 mm
• Height of feed dog is maximum.
Model Dimension A
DNU-1541 0.8 to 0.9 mm
DNU-1541S
DNU-1541-7 0.4 to 0.5 mm
