JUKI DNU-1541 Engineer's Manual

−2 −
Standard Adjustment
Standard Adjustment

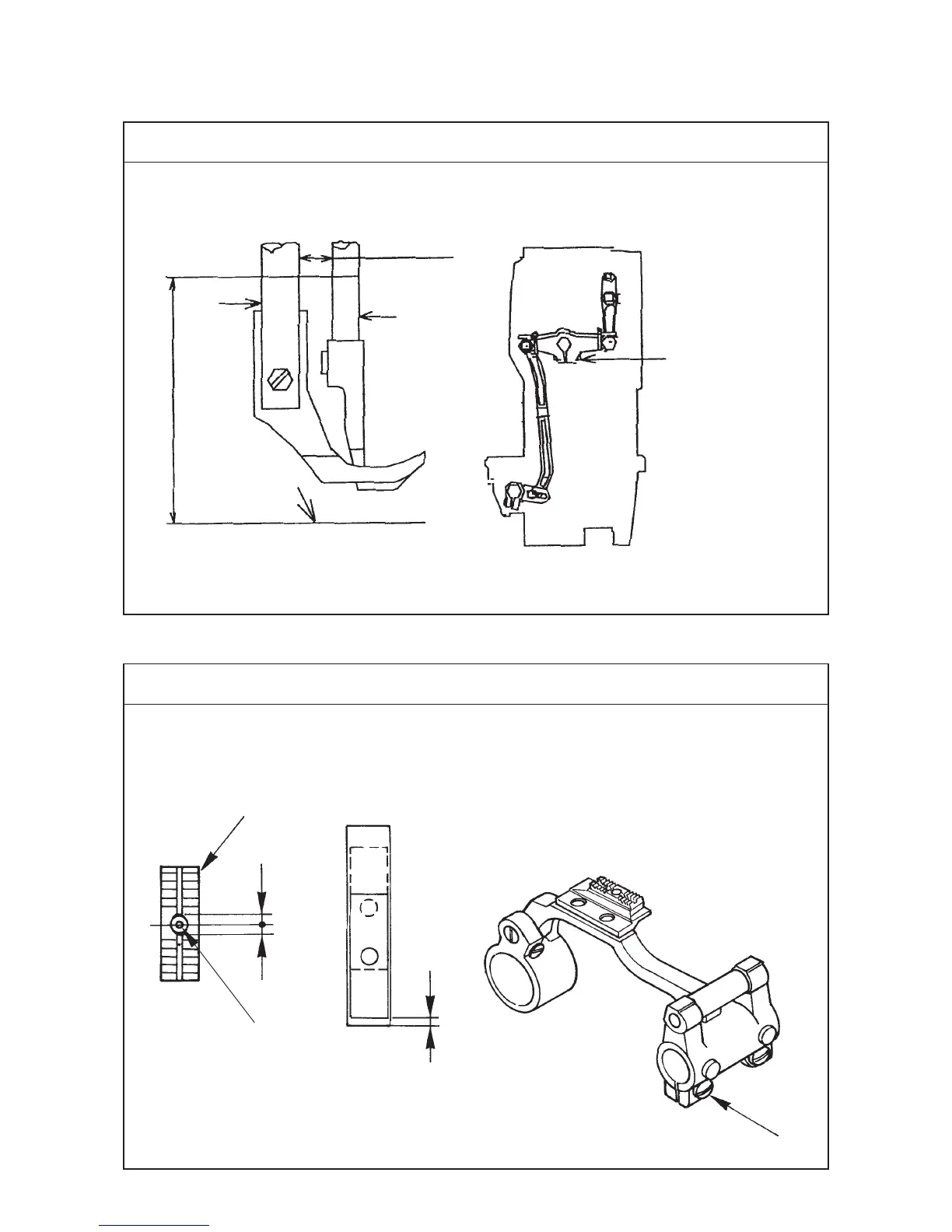

(2) Longitudinal position of the feed dog
2. STANDARD ADJUSTMENT
(1) Needle entry position
1
2
3
1
2
3
8±0.2 mm
60 mm
a’
a
A
Top surface of
throat plate
Conditions
• Needle bar at lowest
dead point
• Feed amount : 0 mm
Conditions
• Needle bar at lowest dead point
• Feed amount : 0 mm
A = Clearance between the feed dog and the throat plate
when the feed dog travels fully to the front.
