JUKI DNU-1541 Engineer's Manual

− 37 −
2) Installing the pneumatic device components
◎ When installing the automatic presser foot lifter to DNU-1541 and DNU-1541S after set-up of the machine (List B)
Refer to “4. (1)-7) Installing the pneumatic components”.

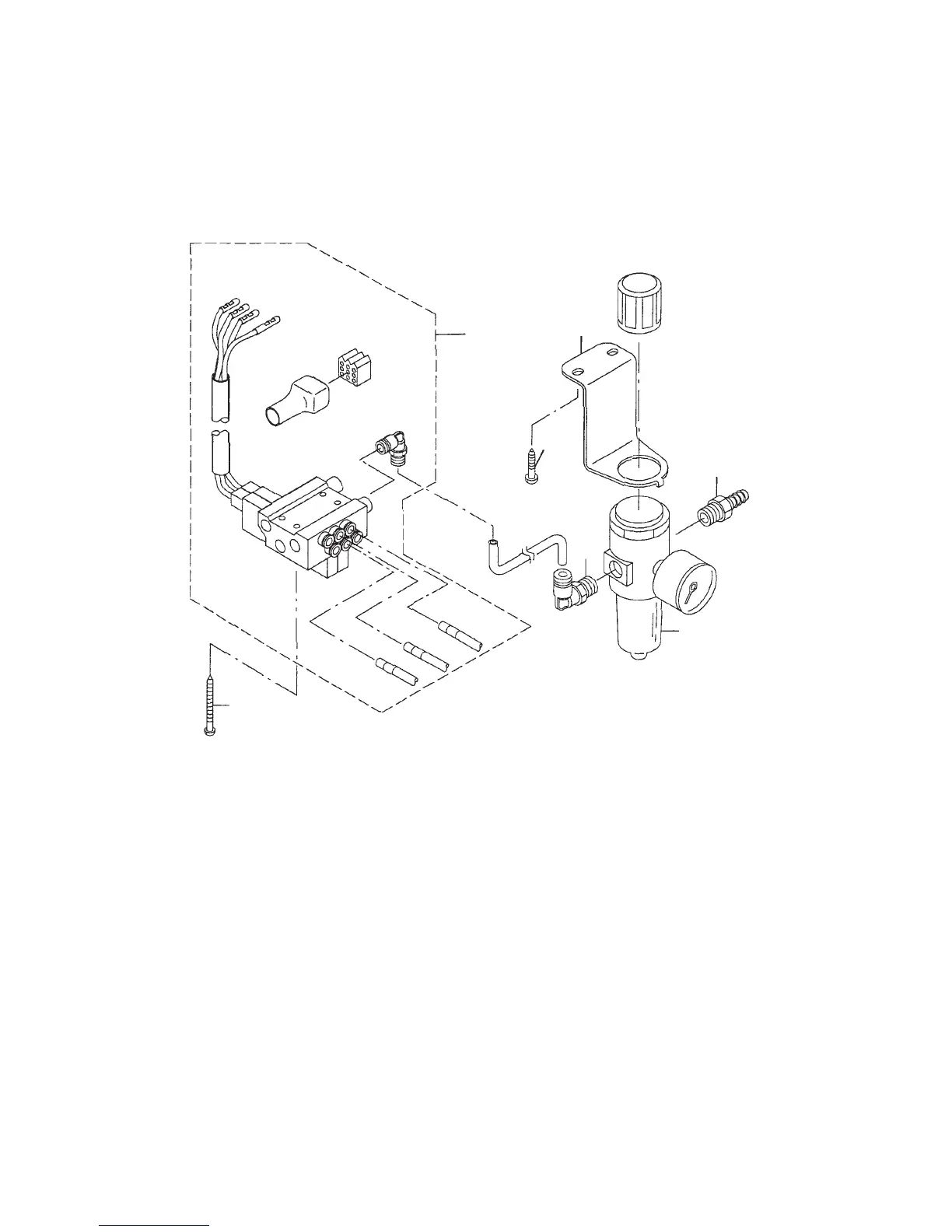

◎ When installing the automatic presser foot lifter to DNU-1541-7 after set-up of the machine (List C)
1. Assemble the additional parts (List C) to filter regulator a, air joint b and quick joint A (elbow) c which
are included in the pneumatic components (asm.) being used now.
2. Install on the table filter regulator a with wood screws 3 and pneumatic device B (asm.) 1 with wood
screws 4.
3. Connect the air hose with pneumatic device B (asm.) 1.
1
2
3
4
a
b
c

JUKI DNU-1541 Specifications

General

Machine Type	Industrial Sewing Machine
Max Stitch Length	9mm
Needle Bar Stroke	36.5mm
Presser Foot Lift	16mm (by knee), 9mm (by hand)
Needle	DP×17 (#14) #11-#18
Lubrication	Automatic
Weight	34kg (head only)
Stitch Type	Lockstitch
Stitch Length	9mm
Max Sewing Speed	2, 500 stitches per minute
Type	Lockstitch
Application	Heavy-Weight Materials
Maximum Sewing Speed	2, 500 stitches per minute
Bobbin	Large bobbin
Motor	Servo Motor (optional)
Hook Type	Horizontal-axis full-rotary double-capacity hook
